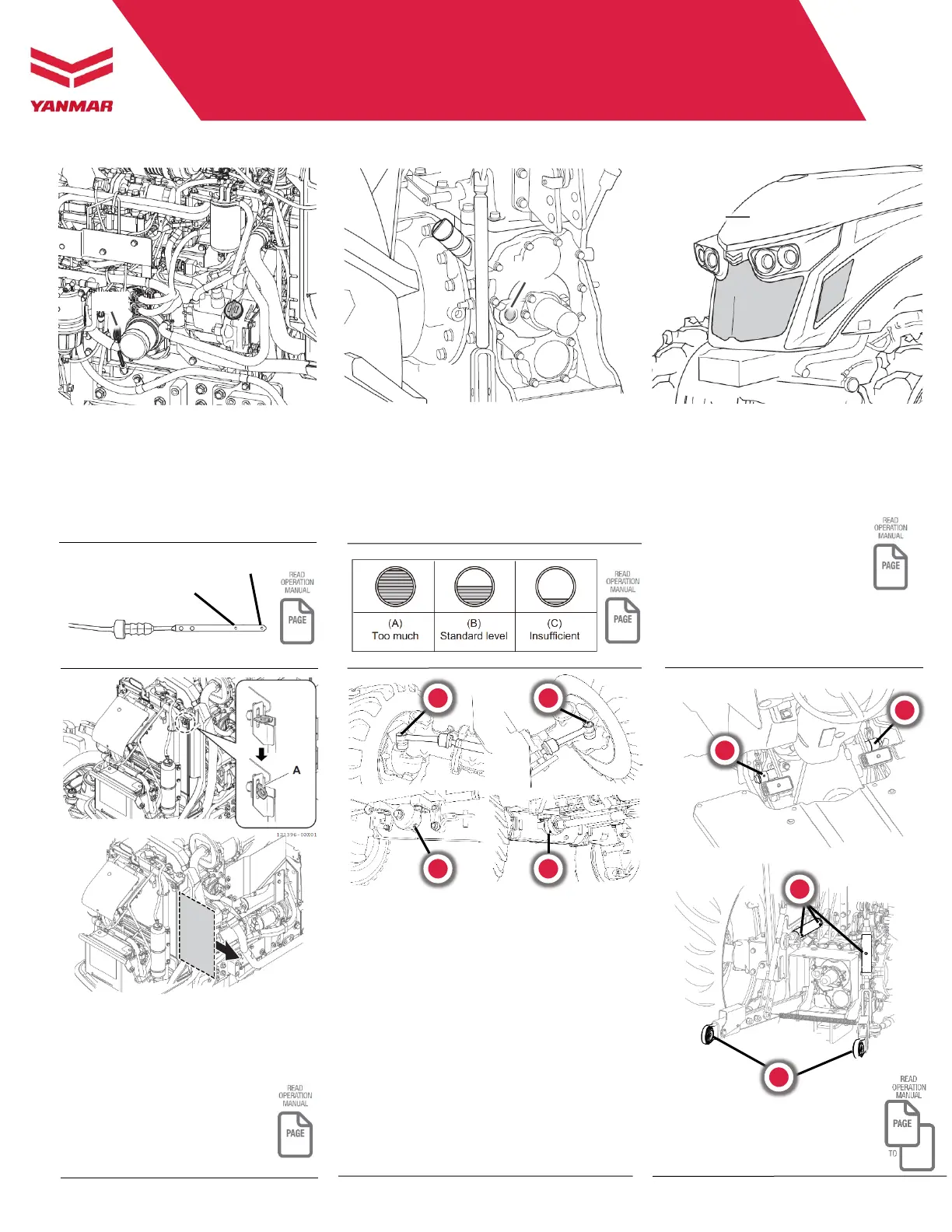

Yanmar YM342A - Transmission Oil Level

Extremely Wet or Muddy Conditions
Lubricate the grease fittings once every 10 operating hours
or once a day.
All Other Conditions
Lubricate the grease fittings once every 50 operating hours.
Type of grease: General all-purpose grease
NLGI GRADE No.2
(A) Right tie rod end
(B) Left tie rod end
(C) Front Axle Pivot Pin grease fitting (front)
(D) Front Axle Pivot Pin grease fitting (rear)
(E) Brake and Parking Brake linkage
(F) 3-Point Hitch top link grease fittings
(G) 3-Point Ball Joints
Remove the dipstick (A) and wipe the dipstick with a
clean rag. Insert the dipstick completely and remove it
to check the oil level. Make sure the oil level is within
the upper and lower limits marked on the dipstick.
Always turn off engine and allow the machine to cool down completely before accessing the engine, muffler, radiator or other hot components
Engine Oil Level
1. Check the grille screen and the side screens for
dirt, grass clippings and debris.
2. Clean the grille screen and side screens with a
brush or cloth.
DAILY CHECK ITEMS
Radiator Cooling Screen
Grille Screen/Side Screens
Upper
Lower
Transmission Oil Level
Read the transmission hydraulic oil gauge window (A)
on the rear side of the transmission case. The
transmission hydraulic oil level should be in the
middle of gauge window.
The radiator cooling screen can be accessed without
tool. Release the two latch hooks (A) on the air
cleaner canister cover and remove the cover.
Grease Points
13-5
13-4
13-10
13-22
13-23
13-7
Never wash the filter or attempt to clean
the filter by tapping the filter against
another object. Apply compressed air
from inside of the element to blow away
the dust.
(A)
(A)
B
C D
E
E
G
F
A
YANMAR COMPACT UTILITY TRACTOR | QUICK OPERATION AND MAINTENANCE GUIDE
