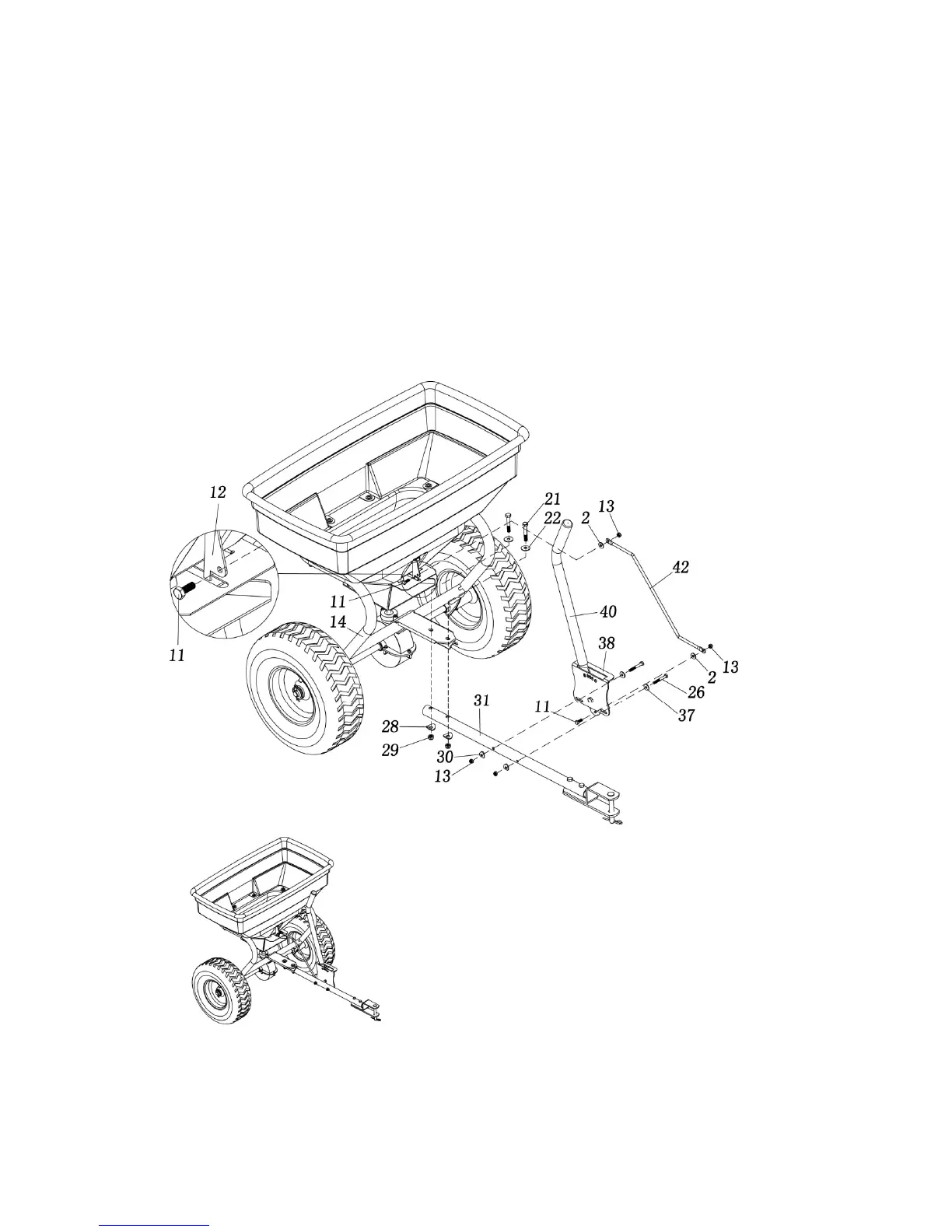

ASSEMBLY INSTRUCTIONS
1. Attach tow bar (#31) to the frame tube assembly (#14) using hex bolt M8x50 (#21), big flat washer Ø8
(#22), arc washer Ø8.5x Ø24 (#28) and lock Nut M8 (#29).
2. Attach the gauge plate (#38) to the tow bar (#31) using hex bolt M6x45 (#26), big flat washer Ø6 (#37), arc
washer Ø6.5x Ø18 (#30) and lock Nut M6 (#13). Don’t tighten the nuts.
3. Attach the upper end of adjustable rod (#42) to the fix plate for adjustable rod (#12) using hex bolt M6x16
(#11), nylon washer (#2) and lock nut M6 (#13). After the lock nut is tightened, turn back 1/2 circle.
4. Attach the lower end of the adjustable rod (#42) to the handle (#40) using hex bolt M6x16 (#11), nylon
washer (#2) and lock Nut M6 (#13). After the lock nut is tightened, turn back 1/2 circle. Regulate the adjust
plate as required above, then tighten all bolts and nuts.
