- 9 -

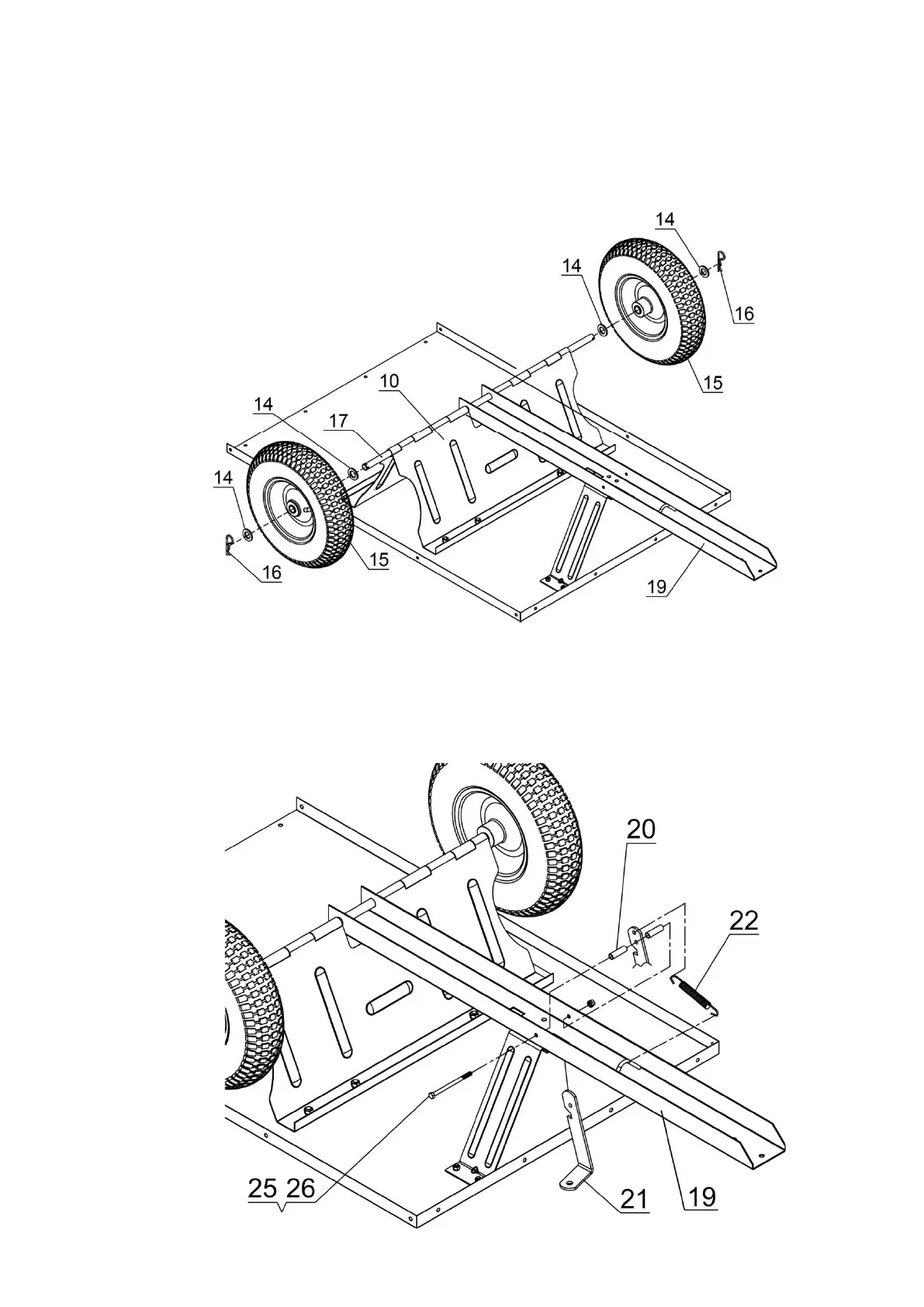

STEP 3: Attach the Wheels
1. Position the hitch tongue (#19) in the axle support (#10). Then slide the wheel axle (#17) through
the axle support (10) and hitch tongue (#19).
2. Slide one Ø16 flat washer (#14) over both ends of the wheel axle (#17), then the wheels (#15),
then secure with a second Ø16 flat washer (#14) and Ø3 R pin (#16).
STEP 4: Attach Release Pedal
1. Insert the release pedal (#21) into the hitch tongue (#19) and secure using M6x90 hex bolt (#25)
and M6 hex lock nut (#26). Put the two spacers (#20) on each side of the release pedal (#21).
2. Attach the latch spring (#22) hook on the bottom hole in the release pedal (#21) and attach the
other end to the hitch tongue(#19).
