- 8 -

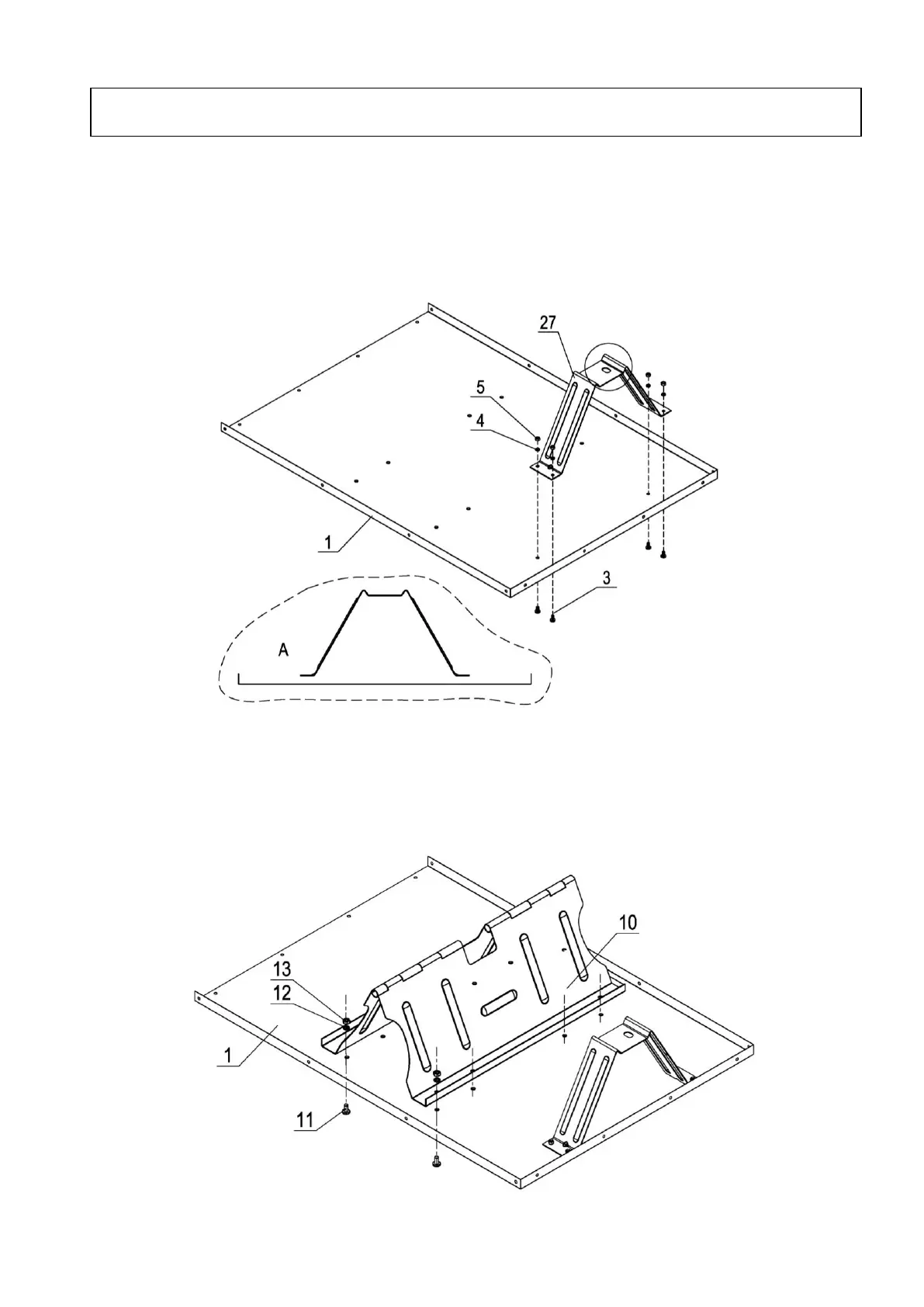

STEP 1: Attach Tongue Support

1. Attach the tongue support (#27) to the back of bottom panel (#1) using four sets of M6x15 screws

(#3), Ø6 lock washers (#4) and M6 hex nuts (#5).

Note: The hole on tongue support (#27) should be on right side.

STEP 2: Attach the Axle Support

1. Put together the two axle supports (#10) and attached them to the back of bottom panel (#1) using

eight sets of M8x20 screws (#11), Ø8 lock washers (#12) and M8 hex nuts (#13).

Assembly Instructions
