- 10 -

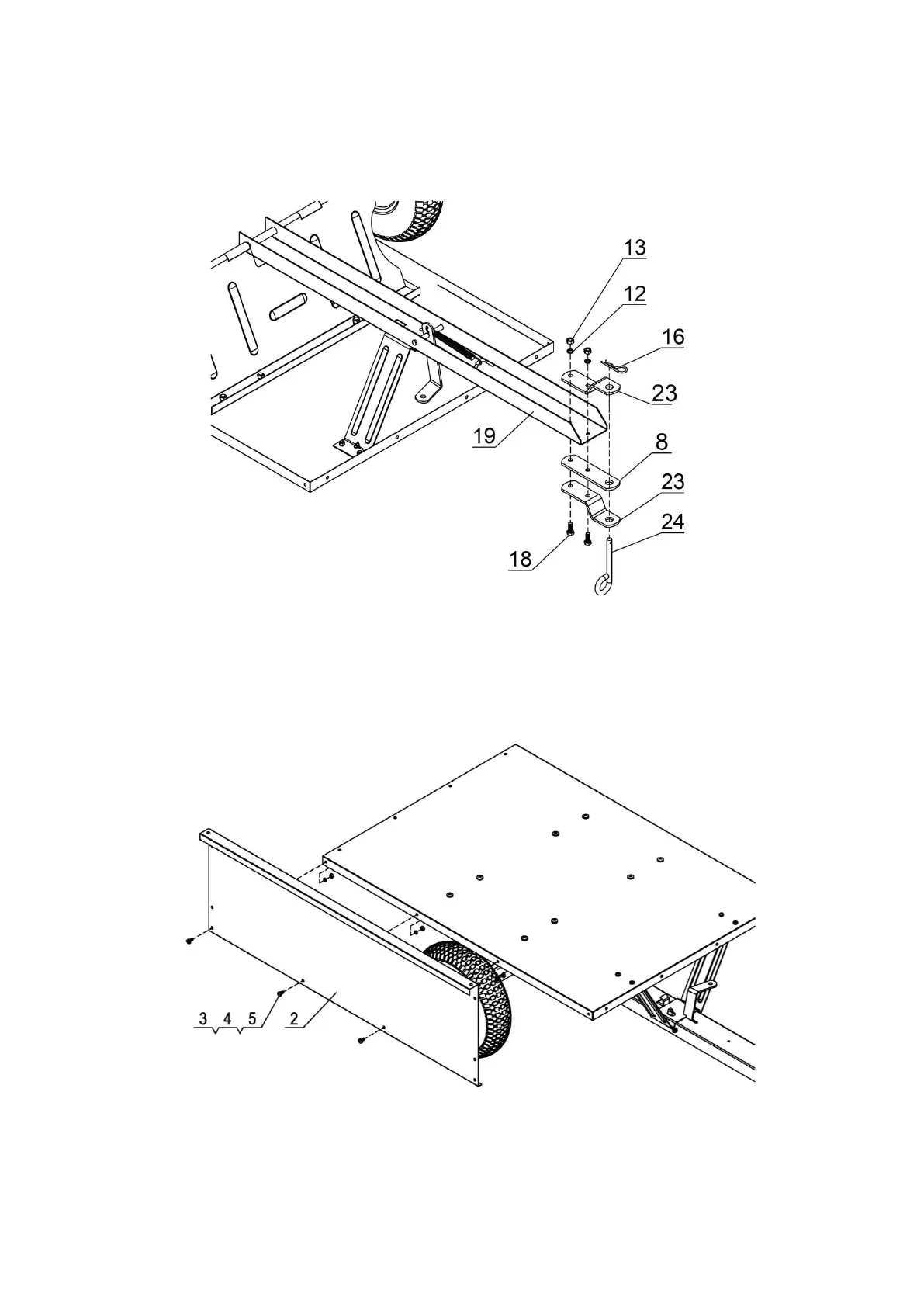

STEP 5: Attach Hitch Pin Bracket

1. Attach two hitch pin bracket (#23) and connecting plate (#8) to the hitch tongue (#19) using two

sets of M8x30 hex bolts (#18), Ø8 lock washers (#12) and M8 hex nuts (#13). Insert the hitch pin

(#24) through the tongue hole and secure with Ø3 R pin (#16)

STEP 6: Attach Side Panel

1. Attach the side panels (#2) to the bottom panel using six sets of M6x15 screws (#3), Ø6 lock

washers (#4) and M6 hex nuts (#5).
