- 11 -

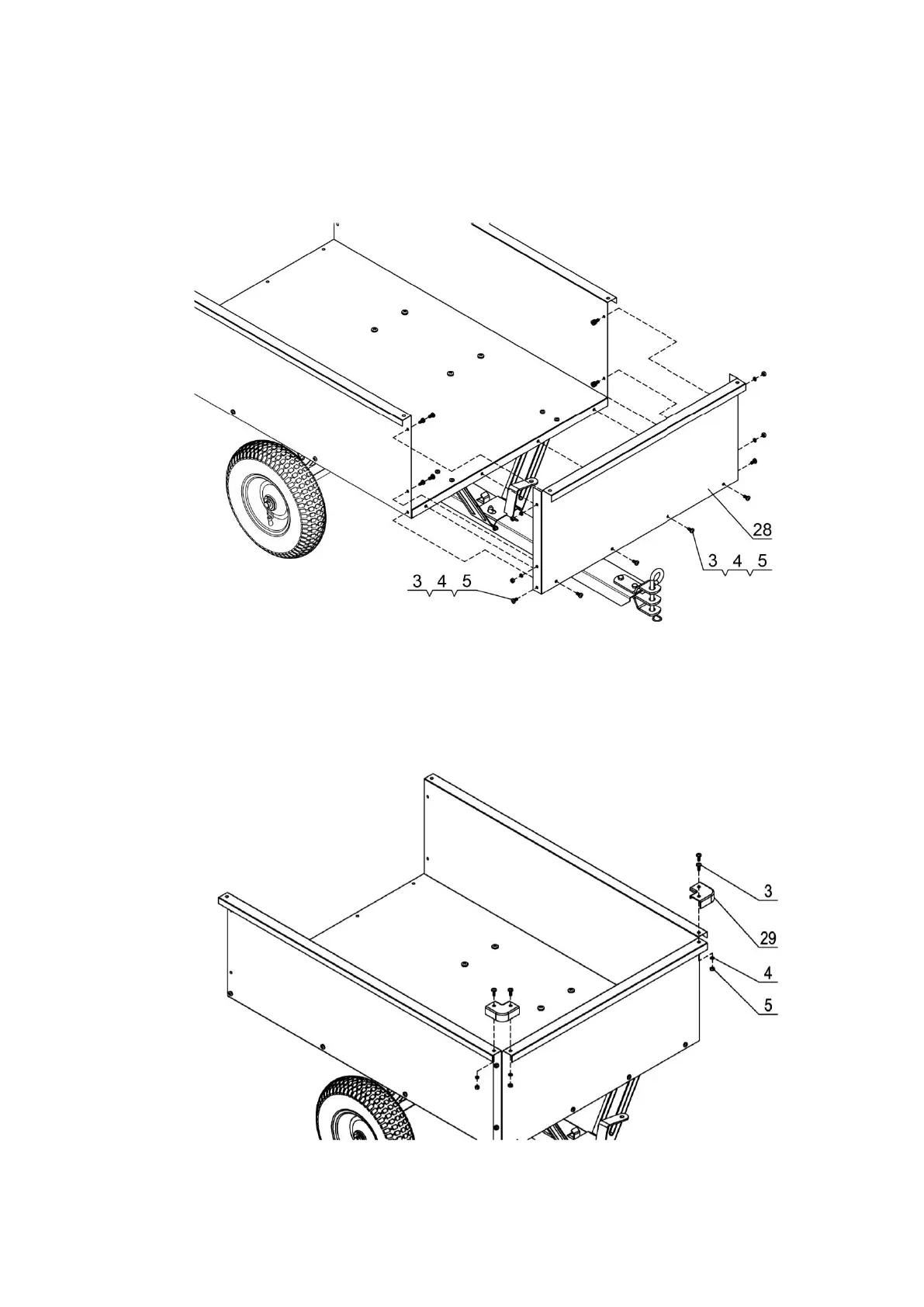

STEP 7: Attach the Front Panel

1. Attach the front panel (#28) to the bottom panel using four sets of M6x15 screws (#3), Ø6 lock

washers (#4) and M6 hex nuts (#5).

2. Attach the front panel (#28) to the side panels using six sets of M6x15 screws (#3), Ø6 lock

washers (#4) and M6 hex nuts (#5).

STEP 8: Attach the Corner Plate

1. Attach the two corner plates (#29) to the side panels and front panel using four sets of M6x15

screws (#3), Ø6 lock washers (#4) and M6 hex nuts (#5).
