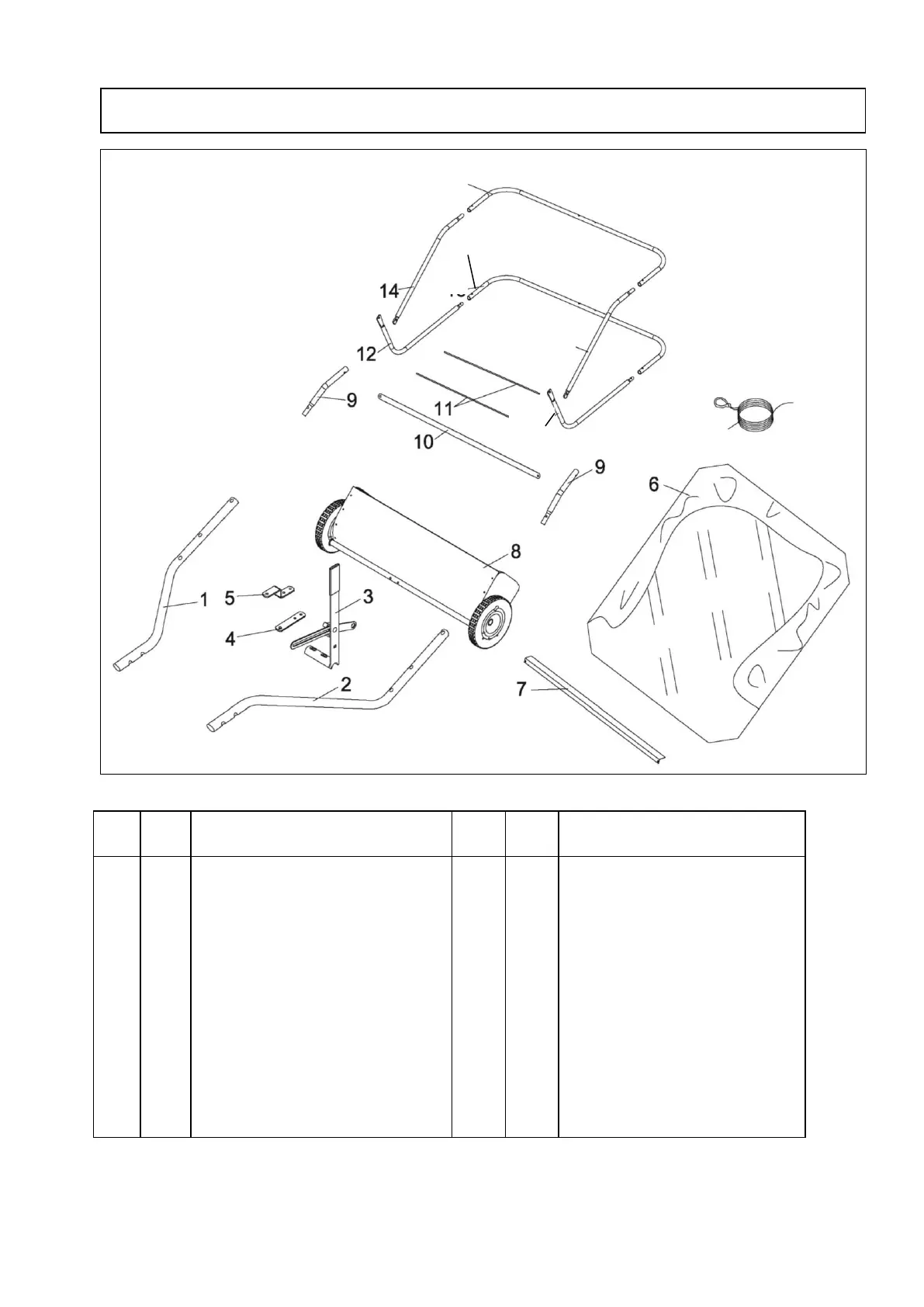

- 7 -
REF.
QTY.
DESCRIPTION
REF.
QTY.
DESCRIPTION
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
2
Hitch Tube (RH)
Hitch Tube (LH)
Handle Assembly
Hitch Bracket (Straight)
Hitch Bracket
Hopper Bag
Connecting Rod
Sweeper Housing Assembly
Bag Arm Tube
10
11
12
13
14
15
1
2
2
2
2
1
Bag Frame Strap
Hopper Support Rod
Lower Hopper Side Tube
Rear Hopper Tube
Upper Hopper Side Tube
Rope
Component and Hardware Parts
14
12
13
15
13
