YARD Commander YTL31105 - Assembly Instructions; Attach Angle Bracket to Housing; Attach Hitch Tubes to Housing

- 8 -

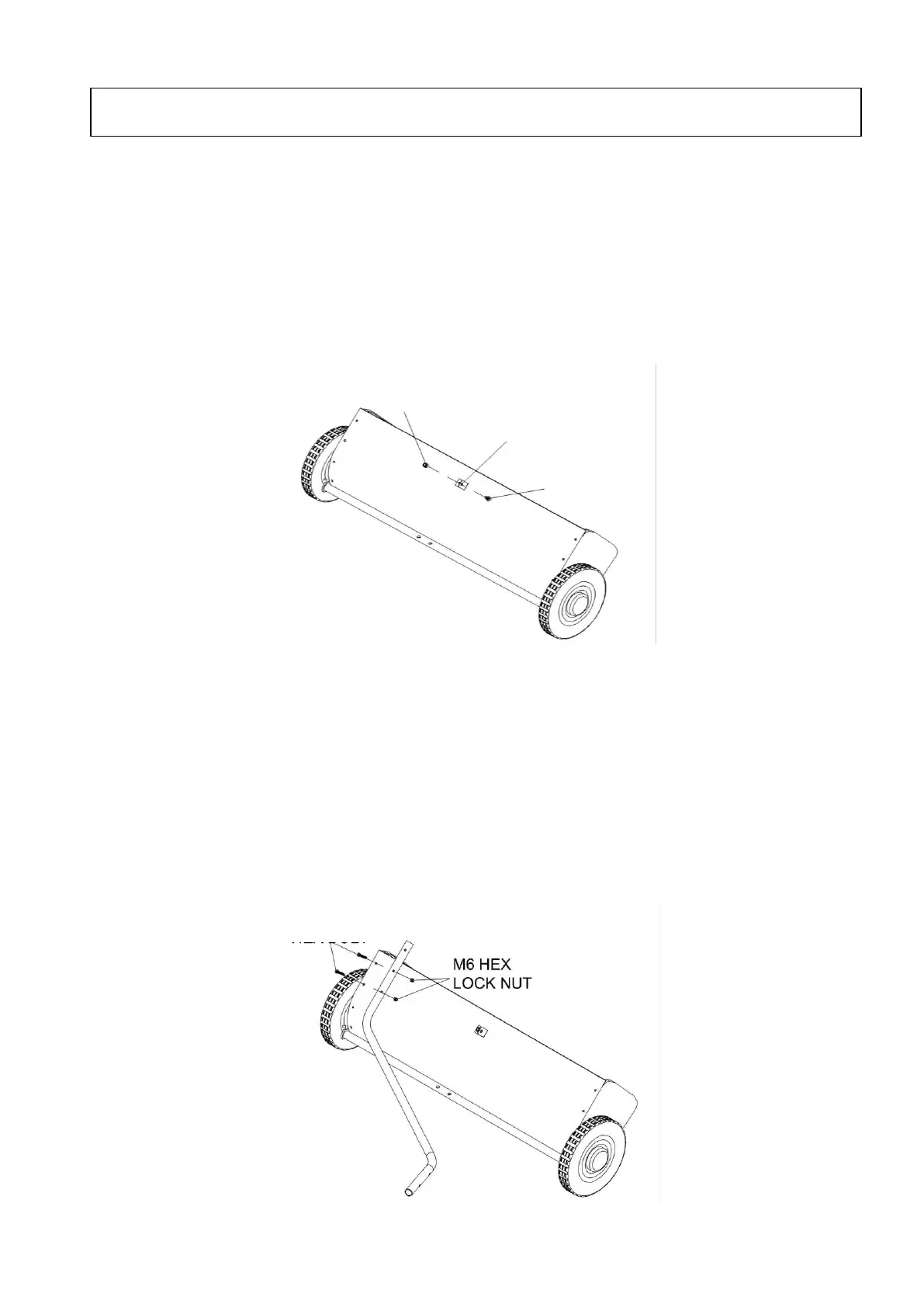

STEP 1: Attach the Angle Bracket to Sweeper Housing
1. Assemble the angle bracket to the sweeper housing using M8x16 hex bolt and M8 hex lock
nut.
NOTE: Make sure the bracket is turned as shown and aligned straight with the housing and
tighten.
NOTE: Right Hand (RH) and Left Hand (LH) are determined from the operators’ position while
seated on the vehicle.
STEP 2: Attach Hitch Tubes to the Sweeper Housing
1. Assemble the RH hitch tube to the sweeper housing using M6x40 hex bolt and M6 lock nut.
Only loosely tighten.
2. Repeat for the LH hitch tube, loosely tighten.
Assembly Instructions
M8X16
HEX BOLT
HEX LOCK
NUT M8
ANGLE BRACKET
M6x40
HEX BOLT
