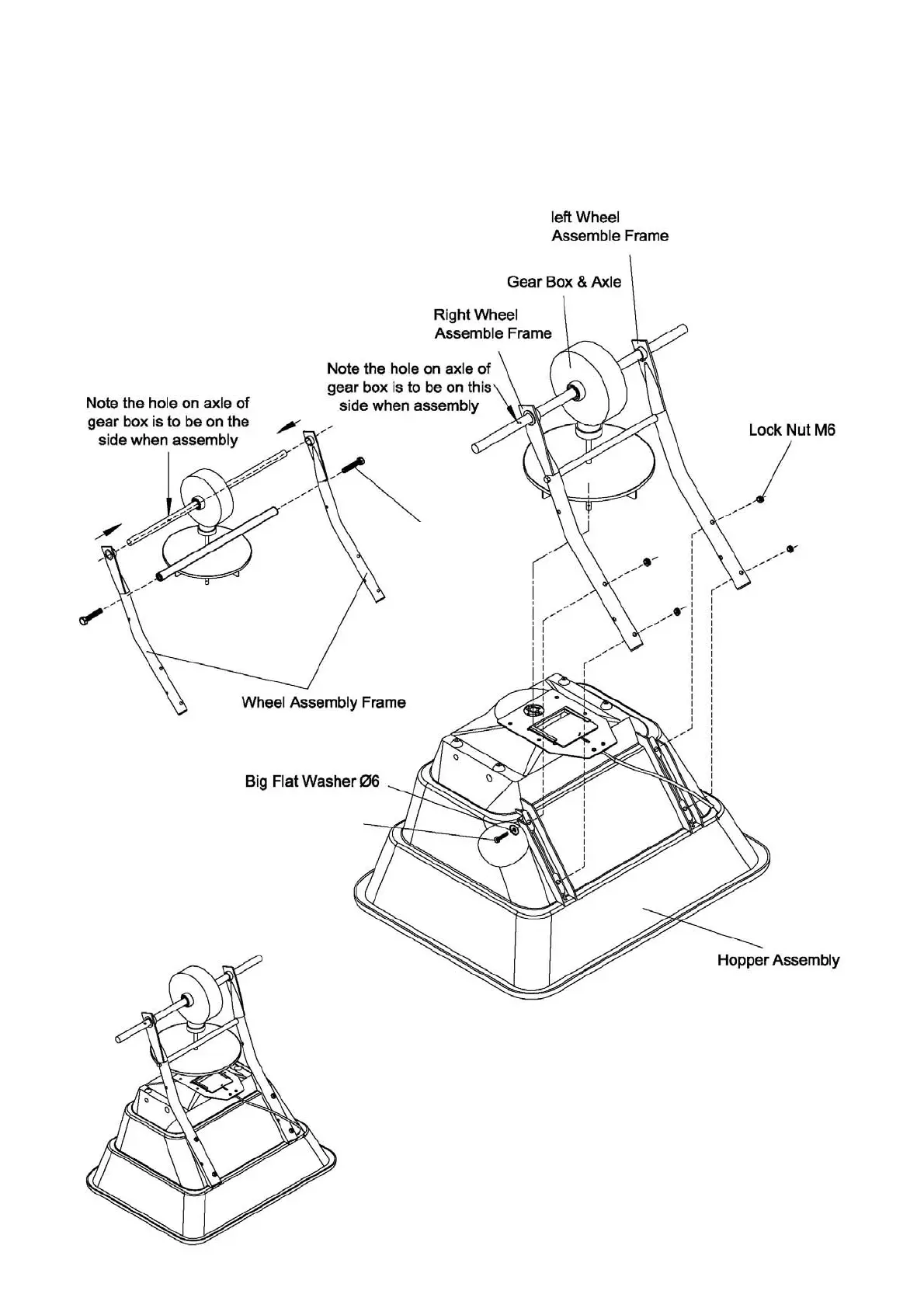

STEP 2: Attach the Wheel Assembly Frame on each side of the Gear Box Axle and Fixing Connecting Rod,

insert two bolts M6x35 into the Fixing Connecting Rod through Wheel Assembly Frame. Make sure the hole on

Axle of Gear Box is to be on the right side when assembly as shown. Attach Wheel Assembly Frames and

Support Leg onto Hopper using bolts M6x45, lock nuts M6 and Big Flat Washers Ø6. Note: The bolts and nuts

needn't be tightened yet.

Hex Bolt M6x35

Hex Bolt M6x45
