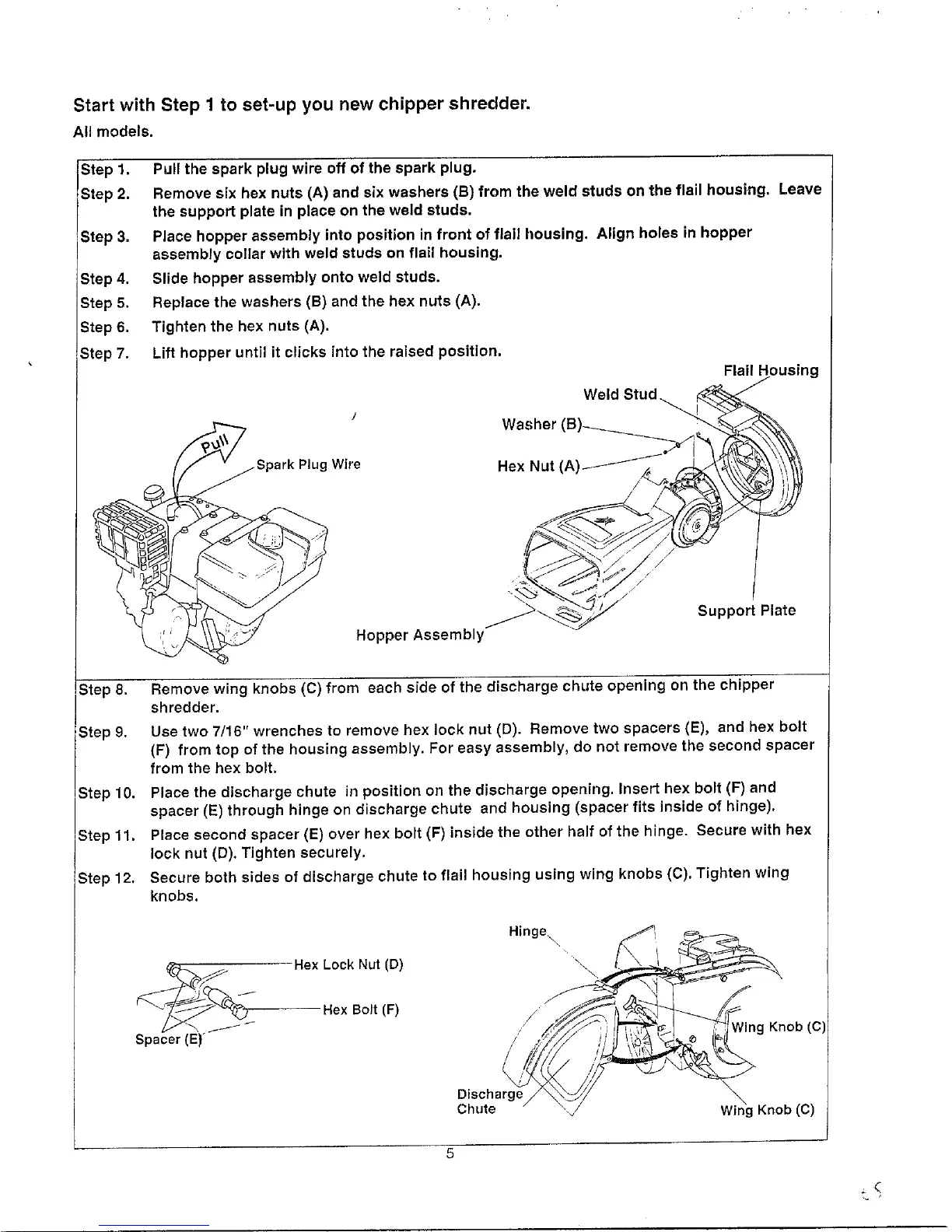

Start with Step 1 to set-up you new chipper shredder.
All models.
n
IStep 1. Pull the spark plug wire off of the spark plug.
EStep 2. Remove six hex nuts (A) and six washers (B) from the weld studs on the flail housing. Leave
the support plate in place on the weld studs.
Step 3, Place hopper assembly into position in front of flail housing. Align holes in hopper
assembly collar with weld studs on flail housing.
Step 4. Slide hopper assembly onto weld studs.
Step 5. Replace the washers (B) and the hex nuts (A).
Step 6. Tighten the hex nuts (A).
Step 7.
Lift hopper until it clicks into the raised position.
Flail Housing
)
_ark Plug Wire
Washer
Hex Nut
Weld Stud
Support Plate
Hopper Assembly
)8, Remove wing knobs (C) from each side of the discharge chute opening on the chipper
shredder.
pg.
Use two 7/16" wrenches to remove hex lock nut (D). Remove two spacers (E), and hex bolt
(F) from top of the housing assembly. For easy assembly, do not remove the second spacer
from the hex bolt.
10. Place the discharge chute in position on the discharge opening. Insert hex bolt (F) and
spacer (E) through hinge on discharge chute and housing (spacer fits inside of hinge).
Step 11
Place second spacer (E) over hex bolt (F) inside the other half of the hinge. Secure with hex
lock nut (D). Tighten securely,
Step 12. Secure both sides of discharge chute to flail housing using wing knobs (C). Tighten wnng
knobs.
Hinge\
Spacer (E)"
Hex Lock Nut (D)
Hex Bolt (F)
\
\\
Wing Knob(C)
Dischargej
Chute
\
Wi_ng Knob (C)
5
<
/
