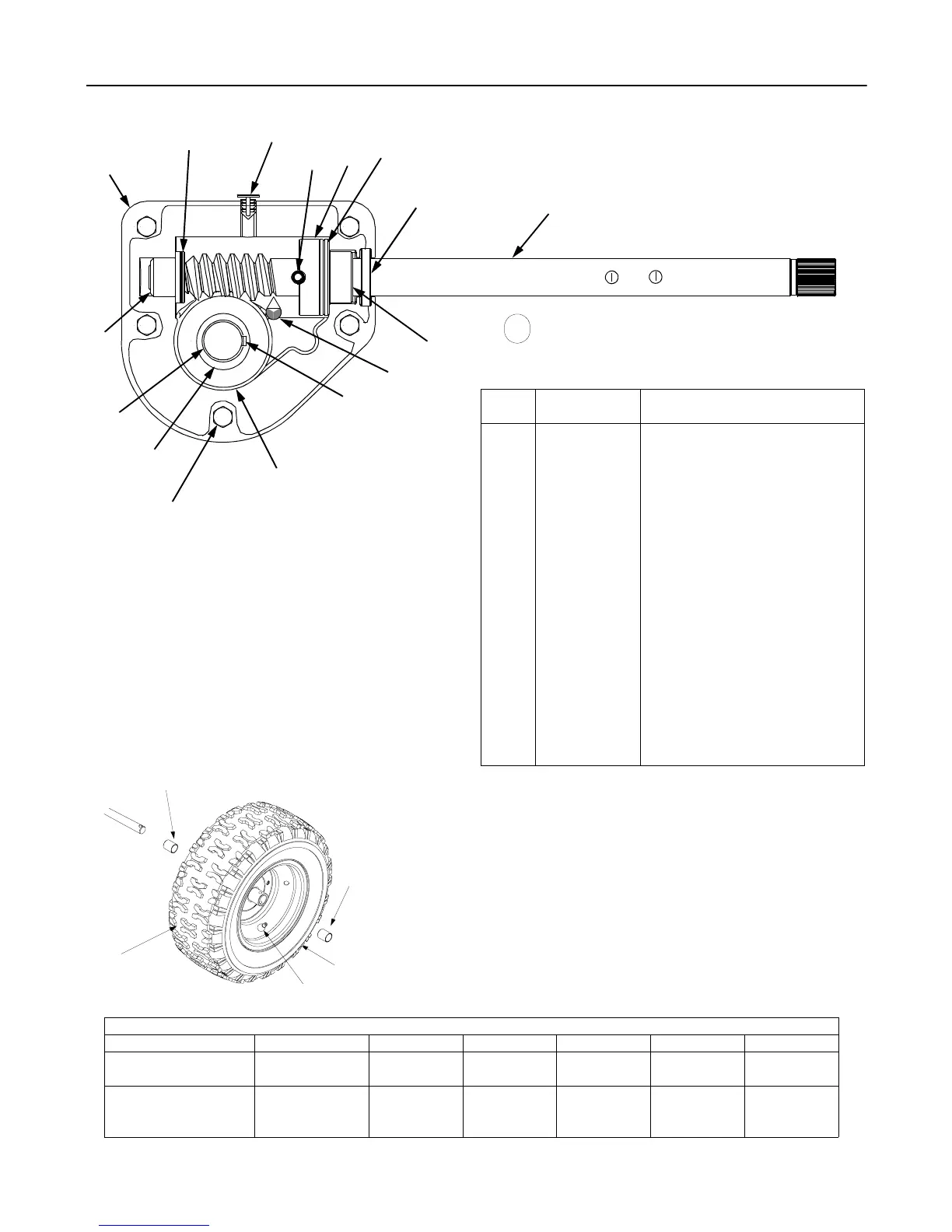

SECTION 11: PARTS LIST FOR MODEL 611
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Ref.
No.
Part
No. Description
1 618-0123 Housing—R.H.
618-0124 Housing—L.H.
2 710-0642 Hex Screw 1/4-20 x .75
3 711-1020 Spiral Axle 22”
711-0908 Spiral Axle 24”
4 714-0161 Key
5 715-0143 Pin-Spiral
6 717-0526 Shaft-Worm
7 717-0528 Gear-Worm
8 718-0186 Collar-Thrust
9 721-0325 Plug
10 721-0327 Seal-Oil
11 736-0351 Washer-Flat
12 736-0369 Washer-Flat
13 736-0445 Washer-Flat
14 737-0168 Grease
15 741-0662 Bearing-Flange
16 741-0663 Bearing-Flange
17 618-0152 Ass’y. Complete 22"
618-0120 Ass’y Complete 24”
2
1
3
5
5
4
Wheel Assembly
Size Ref. No. 1 Ref. No. 2 Ref. No. 3 Ref. No. 4 Ref. No. 5 Ref. No 6
Wheel Ass’y
Complete
Tire Only Air Valve Rim Only Sleeve
Bearing (2)
Klik Pin
13 x 4 634-0114 734-1732 734-0255 734-1713 741-0401 714-0143
13 x 5( w/22” Housing) 634-0166 734-1527 734-0255 684-0129 741-0401 714-0143
13 x 5( w/24” Housing) 734-1714 734-1527 734-0255 734-1713 741-0401 714-0143
