Belt Replacement
Auger Belt
To remove and replace your snow thrower’s auger belt, proceed
as follows:
1. Allow the engine to run until it is out of fuel. Do not
attempt to pour fuel from the engine.

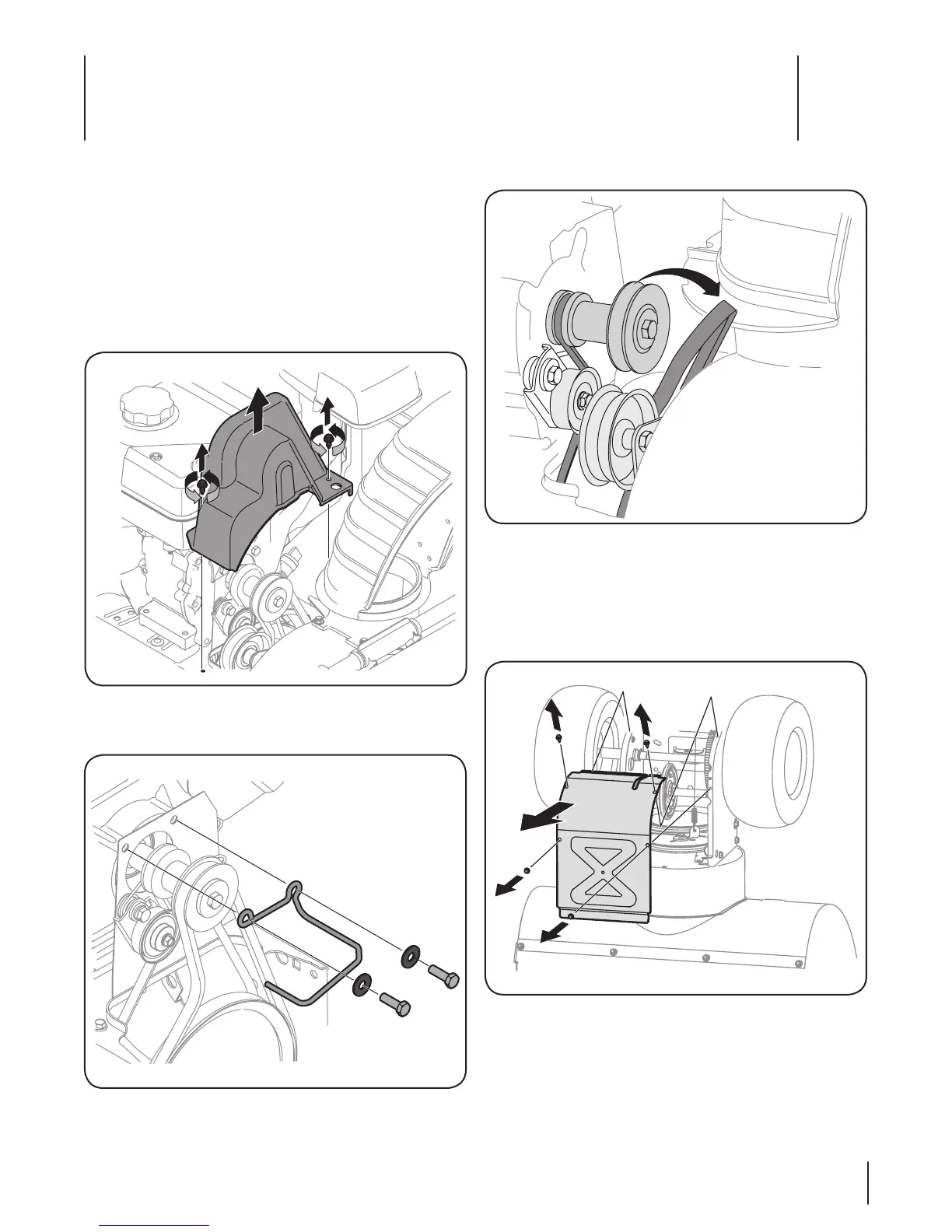

2. Remove the plastic belt cover on the front of the engine by
removing the two self-tapping screws. See Fig. 7-1.
3. Loosen and remove the two bolts and flat washers securing
the belt guide. See Figure 7-2. Remove belt guide.
4. Roll the auger belt off the engine pulley. See Fig. 7-3.
5. Carefully pivot the snow thrower up and forward so that it
rests on the auger housing.
6. Remove the frame cover from the underside of the snow
thrower by removing the self-tapping screws which secure
it. See Fig. 7-4.
Fig. 7-3
Fig. 7-2
Fig. 7-4
Fig. 7-1

Yard Machines 769-06354 Specifications

General

Engine	208cc
Clearing Width	24 inches
Intake Height	21 inches
Engine Type	4-Cycle OHV
Engine Displacement	208cc
Chute Control	Manual
Tire Size	13 x 4 inches
Starter Type	Electric and Recoil Start
