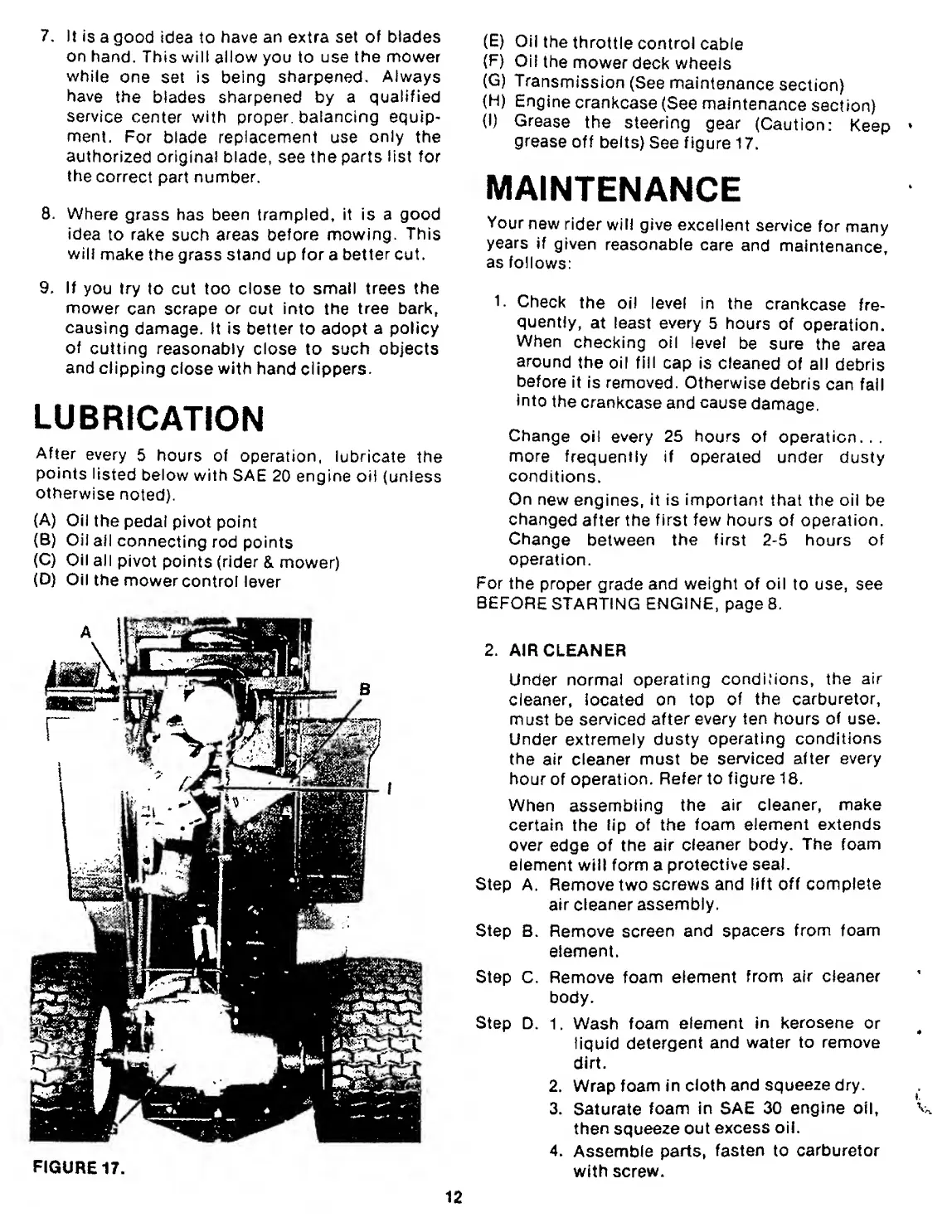

7. It is a good Idea to have an extra set of blades
on hand. This wilt allow you to use the mower
while one set is being sharpened. Always
have the blades sharpened by a qualified
service center with proper balancing equip¬
ment. For blade replacement use only the
authorized original blade, see the parts list for
the correct part number.
8. Where grass has been trampled, it is a good
idea to rake such areas before mowing. This
will make the grass stand up for a better cut.
9. If you try to cut too close to small trees the
mower can scrape or cut into the tree bark,
causing damage. It is better to adopt a policy
of cutting reasonably close to such objects
and clipping close with hand clippers.
LUBRICATION
After every 5 hours of operation, lubricate the
points listed below with SAE 20 engine oil (unless
otherwise noted).
(A) Oil the pedal pivot point
(B) Oil all connecting rod points
(C) Oil all pivot points (rider & mower)
(D) Oil the mower control lever
FIGURE 17.
(E) Oil the throttle control cable
(F) Oil the mower deck wheels
(G) Transmission (See maintenance section)
(H) Engine crankcase (See maintenance section)
(I) Grease the steering gear (Caution: Keep ♦
grease off belts) See figure 17.
MAINTENANCE
Your new rider will give excellent service for many
years if given reasonable care and maintenance,
as follows:
1. C h e ck the oil level in the crankcase fre¬
quently, at least every 5 hours of operation.
When checking oil level be sure the area
around the oil fill cap is cleaned of all debris
before it is removed. Otherwise debris can fall
into the crankcase and cause damage,
Change oil every 25 hours of operation...
more frequently if operated under dusty
conditions.
On new engines, it is important that the oil be
changed after the first few hours of operation.
Change between the first 2-5 hours of
operation.
For the proper grade and weight of oil to use, see
BEFORE STARTING ENGINE, page 8.
2. A I R CLEANER
Under normal operating conditions, the air
cleaner, located on top of the carburetor,
must be serviced after every ten hours of use.
Under extremely dusty operating conditions
the air cleaner must be serviced after every
hour of operation. Refer to figure 18.
When assembling the air cleaner, make
certain the lip of the foam element extends
over edge of the air cleaner body. The foam
element will form a protective seal.
Step A. Remove two screws and lift off complete
air cleaner assembly.
Step B. Remove screen and spacers from foam
element.
Step C. Remove foam element from air cleaner
body.
Step D. 1. Wash foam element In kerosene or
liquid detergent and water to remove
dirt.
2. Wrap foam in cloth and squeeze dry.
3. Saturate foam in SAE 30 engine oil, v..
then squeeze out excess oil.
4. Assemble parts, fasten to carburetor
with screw.
12
