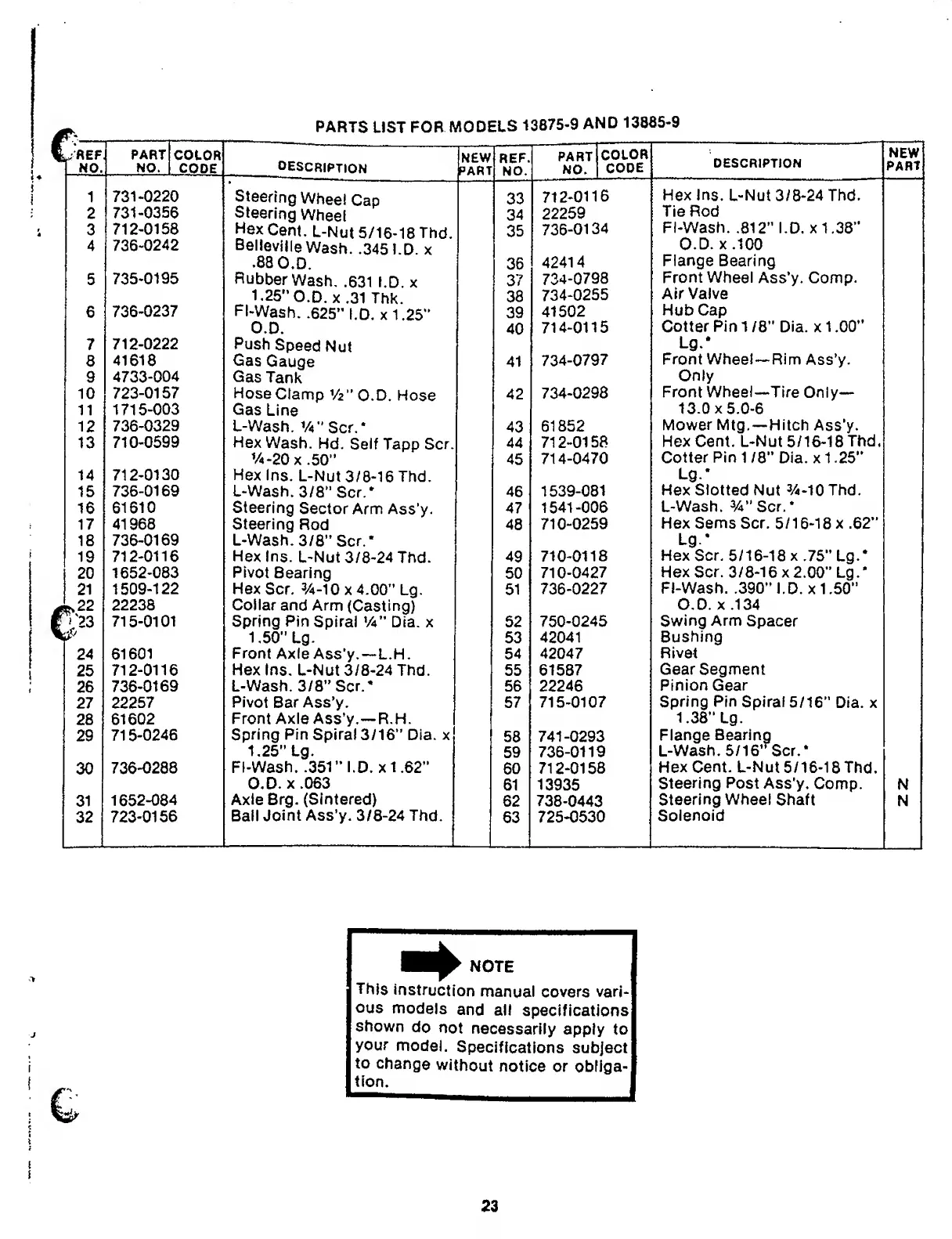

PARTS LIST FOR MODELS 13875-9 AND 13885-9
PART COLOR
NO. CODE
1 1731-0220
731-0356
712-0158
736-0242
735- 0195
736- 0237
712-0222
41618
4733-004
723-0157
1715-003
736-0329
710-0599
712-0130
736-0169
61610
41968
736-0169
712-0116
1652-083
1509-122
22238
.23 715-0101
y
24 61601
25 712-0116
26 736-0169
27 22257
28 61602
29 715-0246
30 736-0288
31 1652-084
32 723-0156
_description
steering Wheel Cap
Steering Wheel
Hex Cent. L-Nut 5/16-18 Thd.
Belleville Wash. .3451 D. x
.88 0 . 0 .
Rubber Wash. .631 I.D. x
1.25'’O.D. X .31 Thk.
FI-Wash. .625” I.D. x 1.25”
O.D.
Push Speed Nut
Gas Gauge
Gas Tank
Hose Clamp V 2 ” O . D . Hose
Gas Line
L-Wash. V 4 ” Scr.*
Hex Wash. Hd. Self Tapp Scr.
V 4 - 2 OX .50”
Hex Ins. L-Nut 3/8-16 Thd.
L-Wash.3/8” Scr.‘
Steering Sector Arm Ass'y-
Steering Rod
L-Wash.3/8”Scr.*
Hex Ins. L-Nut 3/8-24 Thd.
Pivot Bearing
Hex Scr, %-10 x 4.00” Lg.
Collar and Arm (Casting)
Spring Pin Spiral W' Dia. x
1.50” Lg.
Front Axle Ass'y.—L.H.
Hex Ins, L-Nut 3/8-24 Thd.
L-Wash. 3/8” Scr.*
Pivot Bar Ass’y.
Front Axle Ass’y.—R.H.
Spring Pin Spiral 3/16” Dia. x
1.25" Lg.
FI-Wash. .351" I.D. X 1.62"
O.D. X. 0 63
Axle Brg. (Sintered)
Ball Joint Ass’y. 3/8-24 Thd.
NEW REF.
PART NO.
PART COLOR
NO. CODE
33 712-0116
34 22259
35 736-0134
36 42414
3? 734-0798
38 734-0255
39 41502
40 714-0115
41 734-0797
42 734-0298
43 61852
44 712-0158
45 714-0470
46 1539-081
47 1541-006
48 710-0259
49 710-0118
50 710-0427
51 736-0227
52 750-0245
53 42041
54 42047
55 61587
56 22246
67 715-0107
58 741-0293
59 736-0119
60 712-0158
61 13935
62 738-0443
63 725-0530
DESCRIPTION
Hex Ins. L-Nut 3/8-24 Thd.
Tie Rod
FI-Wash. .812” I.D. x 1.38”
O.D. x .100
Flange Bearing
Front Wheel Ass’y. Comp.
Air Valve
Hub Cap
Cotter Pin 1/8" Dia. x 1.00”
Lg.*
Front Wheel—Rim Ass'y.
Only
Front Wheel—Tire Only—
13.0x5.0-6
Mower Mtg.—Hitch Ass’y.
Hex Cent. L-Nut 5/16-18 Thd,
Cotter Pin 1/8” Dia. x 1.25”
Lg.*
Hex Slotted Nut %-io Thd.
L-Wash. 3 / 4 ” S cr.*
Hex Sems Scr. 5/16-18 x .62”
Lg.*
Hex Scr. 5/16-18 x .75” Lg.*
Hex Scr. 3/8-16x2.00” Lg.*
FI-Wash. .390” I.D. X 1.50”
0.0. X .134
Swing Arm Spacer
Bushing
Rivet
Gear Segment
Pinion Gear
Spring Pin Spiral 5/16” Dia. x
1.38” Lg.
Flange Bearing
L-Wash. 5/16’^Scr.*
Hex Cent. L-Nut 5/16-18 Thd.
Steering Post Ass'y. Comp.
Steering Wheel Shaft
Solenoid
