Yard-Man 13875-9 - Page 27

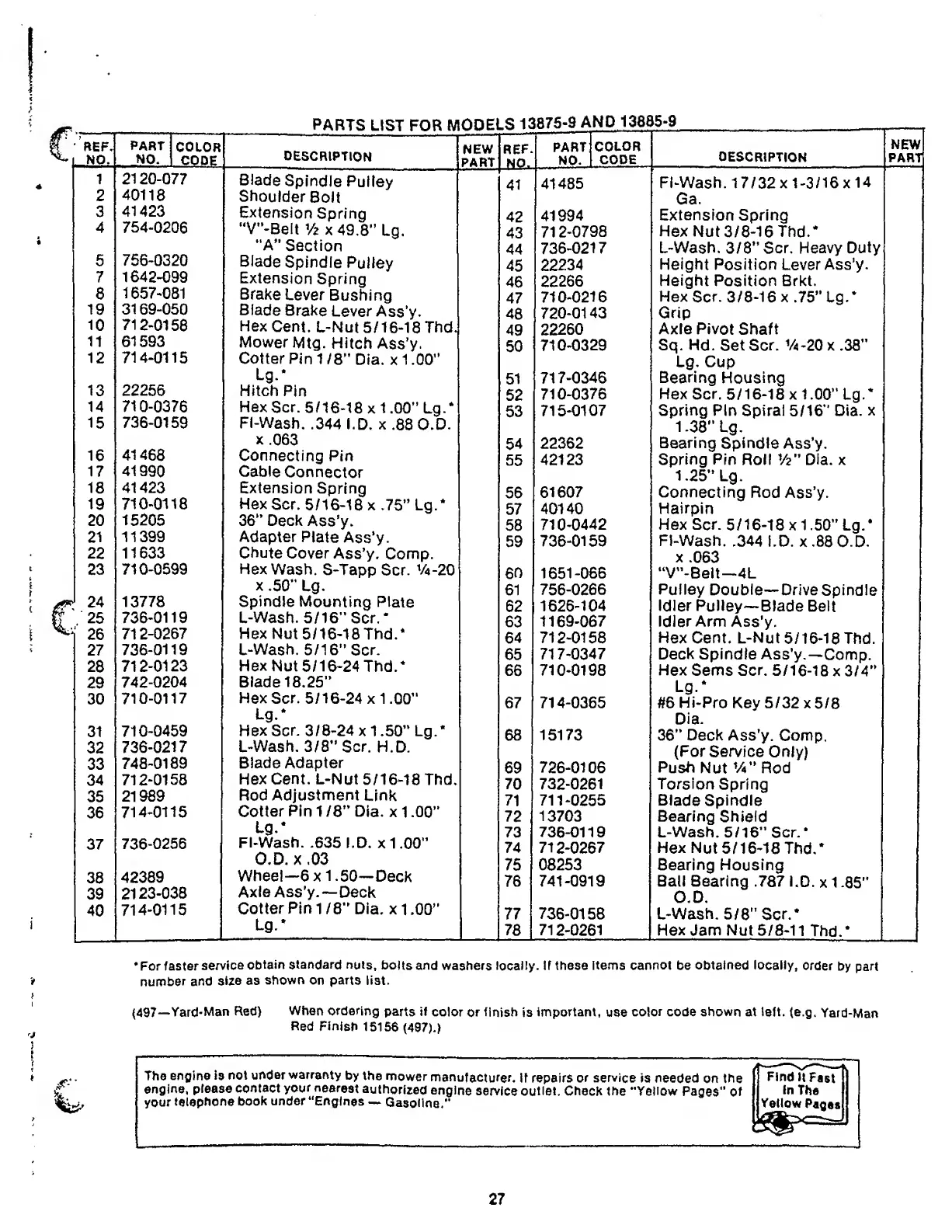

PARTS LIST FOR MODELS 13875-9 AND 13885»9
REF. PART COLOR
NO. _NO.
1 (2120-077
40118
41423
754-0206
756-0320
1642-099
8 1657-081
19 3169-050
10 712-0158
11 61593
12 714-0115
13 22256
14 710-0376
15 736-0159
16 41468
17 41990
18 41423
19 710-0118
20 15205
21 11399
22 11633
23 710-0599
24 13778
25 736-0119
26 712-0267
27 736-0119
28 712-0123
29 742-0204
30 710-0117
31 710-0459
32 736-0217
33 748-0189
34 712-0158
35 21989
36 714-0115
37 736-0256
38 42389
39 2123-038
40 714-0115
DESCRIPTION I
Blade Spindle Pulley
Shoulder Bolt
Extension Spring
‘V-Beit Vz X 49.8” Lg,
*‘A” Section
Blade Spindle Pulley
Extension Spring
Brake Lever Bushing
Blade Brake Lever Ass’y.
Hex Cent. L-Nut 5/16-18 Thd.
Mower Mtg. Hitch Ass’y.
Cotter Pin 1/8” Dia. xl.OO”
La. *
Hitch Pin
Hex Scr. 5/16-18 x 1.00” Lg.*l
FI-Wash. .344 I.D. x .88 O.D.
X .063
Connecting Pin
Cable Connector
Extension Spring
Hex Scr. 5/16-18 x .75” Lg.*
36” Deck Ass’y.
Adapter Plate Ass’y.
Chute Cover Ass’y. Comp.
Hex Wash. S-Tapp Scr. V4-20
X .50” Lg.
Spindle Mounting Plate
L-Wash. 5/16” Scr.*
Hex Nut 5/16-18 Thd.*
L-Wash. 5/16” Scr.
Hex Nut 5/16-24 Thd.*
Blade 18.25”
Hex Scr. 5/16-24x1.00”
Lg.*
Hex Scr. 3/8-24x1.50” Lg.*
L-Wash. 3/8” Scr. H.D.
Blade Adapter
Hex Cent. L-Nut 5/16-18 Thd.
Rod Adjustment Link
Cotter Pin 1 /8” Dia. x 1.00"
Lg.-
FI-Wash. .635 I.D. xl.OO"
O.D. X.03
Wheel—Ox 1.60—Deck
Axle Ass'y.*—Deck
Cotter Pin 1 /8” Dia. x 1.00”
Lg.*
NEW REF.
PART
PART COLOR
NO. CODE
41485
41994
712-0798
736-0217
22234
22266
710-0216
720-0143
22260
710-0329
717-0346
710-0376
715-0107
22362
42123
61607
40140
710-0442
736-0159
1651-066
756-0266
1626-104
1169-067
712-0158
717-0347
710- 0198
714-0365
15173
726-0106
732-0261
711- 0255
13703
736-0119
712- 0267
08253
741-0919
736-0158
712-0261
DESCRIPTION
FI-Wash. 17/32x1-3/16x14
Ga.
Extension Spring
Hex Nut 3/8-16 Thd.*
L-Wash. 3/8” Scr. Heavy Duty
Height Position Lever Ass’y.
Height Position Brkt.
Hex Scr. 3/8-16 x .75” Lg.*
Grip
Axle Pivot Shaft
Sq.Hd.SetScr. V4-20X.38"
Lg, Cup
Bearing Housing
Hex Scr. 5/16-18 X 1.00” Lg.*
Spring Pin Spiral 5/16” Dia. x
1-38" Lg.
Bearing Spindle Ass’y.
Spring Pin Roll Vz" Dia. x
1.25” Lg.
Connecting Rod Ass’y.
Hairpin
Hex Scr. 5/16-18x1.50” Lg.*
FI-Wash. .344 I.D. x.88O.D.
X .063
“V”-Belt—4L
Pulley Double—Drive Spindle
Idler Pulley—Blade Belt
Idler Arm Ass’y.
Hex Cent. L-Nut 5/16-18 Thd.
Deck Spindle Ass’y.—Comp.
Hex SemsScr. 5/16-18x3/4”
Lg.‘
#6Hj-PfO Key 5/32x5/8
Ola.
36” Deck Ass’y. Comp.
(For Service Only)
Push Nut Rod
Torsion Spring
Blade Spindle
Bearing Shield
L-Wash. 5/16” Scr.*
Hex Nut 5/16-18 Thd.*
Bearing Housing
Ball Bearing .787 I.D. x 1.85"
O.D.
L-Wash. 5/8” Scr.*
Hex Jam Nut 5/8-11 Thd. *
*For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part
number and size as shown on parts list.
(497—Yard-Man Red) When ordering parts if color or finish is important, use color code shown at left. (e.g. Yard-Man
Red Finish 15156 (497).)
The engine is not under warranty by the mower manufacturer. It repairs or service is needed on the Find it Fast
engine, please contact your nearest authorized engine service outlet. Check the ‘'Yellow Pages” of In The
your telephone book under “Engines — Gasoline.” Yellow Pages
27
