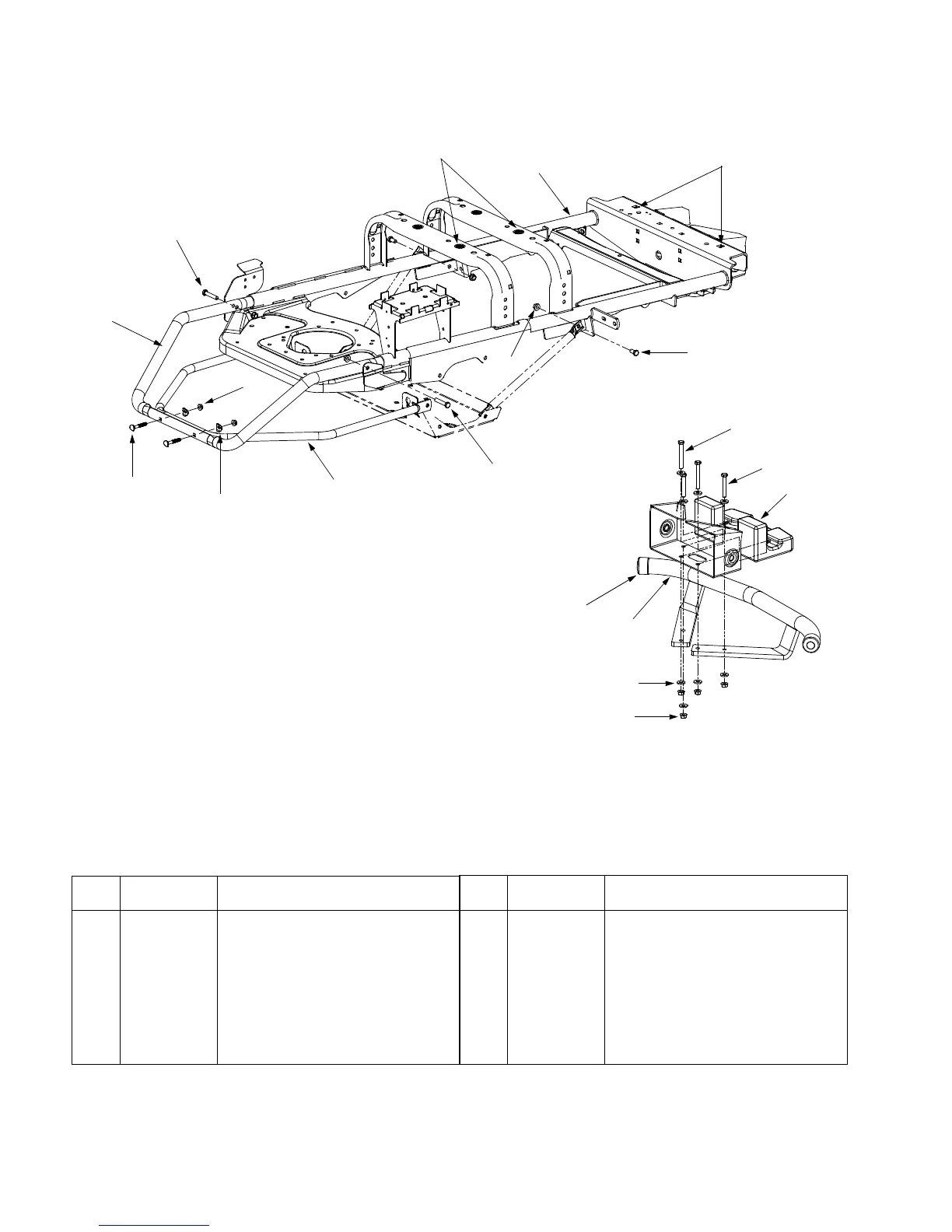

Model 53AA1A3G401
12
13
14
15
16
17
18
REF.
NO.
PART
NO. DESCRIPTION
1. 712-0455 Retaining Nut 3/8-16
2. 603-0720B Frame Assembly
3. 712-0251 Retaining Nut 3/8-16
4. 710-0216 Hex Cap Screw 3/8-16 x .75
5. 712-0431 Lock Nut 3/8-16
6. 710-3144 Hex Cap Screw 3/8-16 x 2.0
7. 749-3061 Lower Bumper Tube
8. 712-3004 Lock Nut 5/16-18
9. 749-3062 Upper Bumper Tube
10. 710-1174 Carriage Bolt 5/16-18 x 2.0
11. 736-0451 Shoulder Washer .320 ID x .93 OD
12. 710-0521 Hex Cap Screw 3/8-16 x 3.0
13. 710-0859 Hex Cap Screw 3/8 - 16 x 2.5
14. 719-3130 Counter Weight
15. 726-0298 End Cap
16. 603-0620 Bumper Ass’y
17. 736-3004 Flat Washer .406 ID x .875 OD
18. 712-0431 Flange Lock Nut 3/8-16
REF.
NO.
PART
NO. DESCRIPTION
