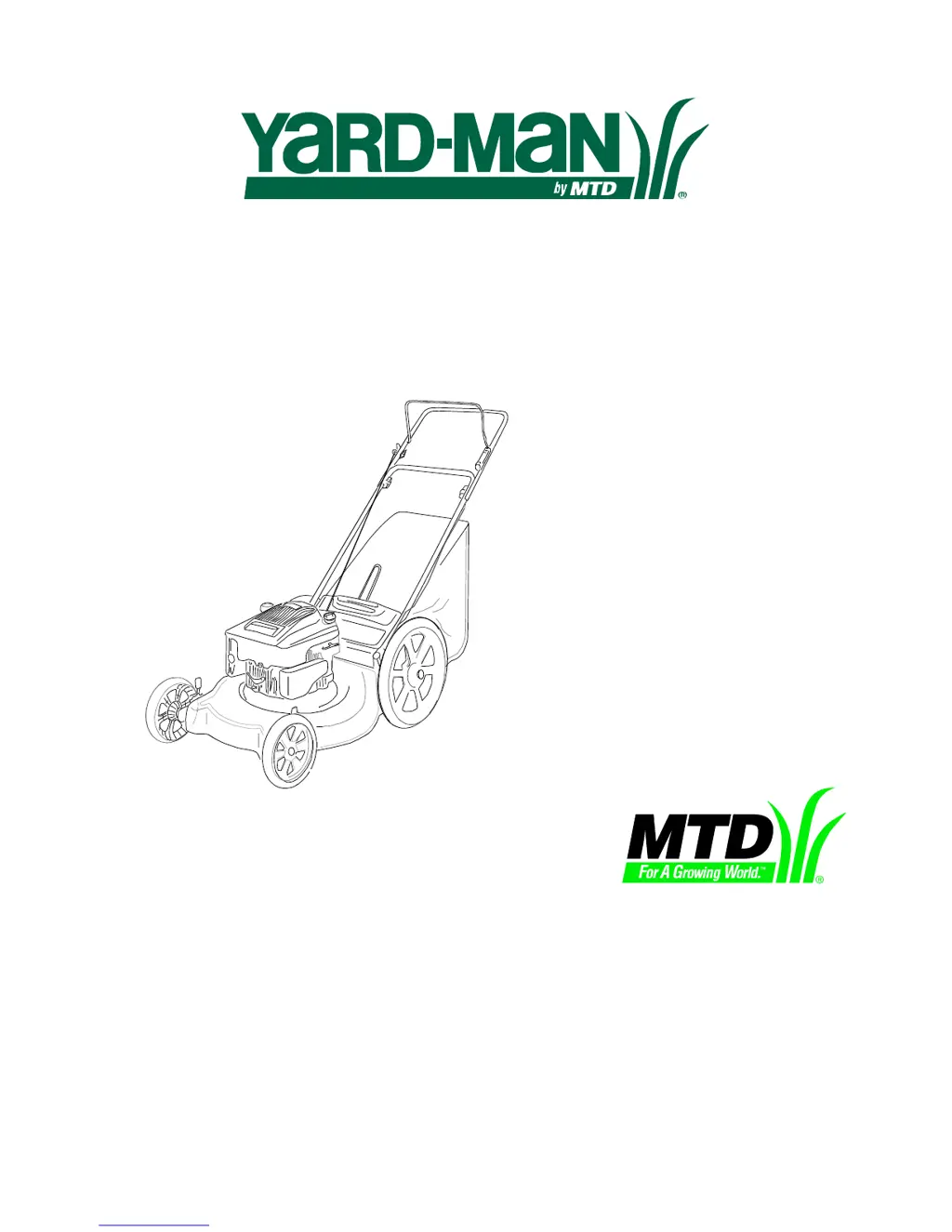

21” Rear Discharge
Rotary Mower
Model Number
11A-589C401
PRINTED IN U.S.A.
OPERATOR’S MANUAL
FORM NO.
770-10111A.fm
(12/99)
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.

Questions and Answers

  • A
    angelabellAug 12, 2025
    Why Yard-Man 11A-589C401 engine fails to start?
    • N
      Nancy MayerAug 13, 2025
      If your Yard-Man Lawn Mower engine won't start, several factors could be the cause. First, make sure that the blade control handle is engaged. Next, verify that the spark plug wire is securely connected to the spark plug. If these aren't the issue, check your fuel tank to ensure it's not empty or filled with stale fuel; if so, refill it with fresh gasoline. A blocked fuel line could also be the culprit, so try cleaning it. Inspect the spark plug itself for any faults and clean, adjust the gap, or replace it if necessary. Lastly, if the engine is flooded, wait a few minutes before attempting to restart it, and avoid priming it this time.
  • H
    hubbardshannonAug 16, 2025
    What to do if Yard-Man 11A-589C401 Lawn Mower engine runs erratic?
    • P
      Patricia CaldwellAug 16, 2025
      If your Yard-Man Lawn Mower engine runs erratically, consider these potential causes and solutions: * Ensure the spark plug wire is securely connected and tightened. * Check for a blocked fuel line or stale fuel; clean the fuel line and refill the tank with fresh gasoline. * Inspect the vent in the gas cap to ensure it isn't plugged; clear it if necessary. * Drain the fuel tank and refill with fresh fuel to eliminate water or dirt in the fuel system. * Clean the air cleaner. * Adjust the carburetor.
  • M
    Mrs. Whitney SuttonAug 20, 2025
    Why does my Yard-Man 11A-589C401 Lawn Mower engine overheat?
    • M
      Mark WhiteAug 20, 2025
      If your Yard-Man Lawn Mower engine overheats, check these potential issues: 1. Ensure the engine oil level is adequate by filling the crankcase with the proper oil. 2. Check for any restrictions to airflow and remove the blower housing to clean it. 3. The carburetor might not be adjusted properly, so adjust it accordingly.
  • J
    jonespaulAug 25, 2025
    How to fix Yard-Man 11A-589C401 when it idles poorly?
    • T
      Tracy JonesAug 25, 2025
      If your Yard-Man Lawn Mower idles poorly, here are some things to check: * Inspect the spark plug for fouling, faults, or an incorrect gap. Reset the gap to .030” or replace the spark plug. * The carburetor may be improperly adjusted, so adjust it. * A dirty air cleaner can also cause idling issues, so clean it.
  • S
    Sean JonesAug 27, 2025
    What causes excessive vibration in Yard-Man 11A-589C401?
    • N
      nataliewilliamsAug 28, 2025
      If your Yard-Man Lawn Mower vibrates excessively, the following could be the cause: * The cutting blade may be loose or unbalanced; tighten the blade and adapter, and balance the blade. * The cutting blade may be bent; replace the blade.
  • S
    Steve TaylorAug 31, 2025
    Why Yard-Man 11A-589C401 Lawn Mower will not mulch grass?
    • V
      vernongarnerAug 31, 2025
      If your Yard-Man Lawn Mower isn't mulching grass effectively, consider these points: * Avoid mowing when the grass is wet; wait until it's dry. * If the grass is excessively high, mow once at a high cutting height, then mow again at the desired height, or make a narrower cutting path. * Check if the blade is dull and sharpen or replace it.
  • J
    John ThompsonSep 4, 2025
    How to fix uneven cut with Yard-Man 11A-589C401?
    • B
      brian40Sep 4, 2025
      If your Yard-Man Lawn Mower is producing an uneven cut, consider these potential causes: * The wheels may not be positioned correctly; place all four wheels in the same height position. * A dull blade can also result in an uneven cut; sharpen or replace the blade.
  • J
    Juan BensonSep 7, 2025
    What to do if Yard-Man 11A-589C401 hesitates at high speed?
    • A
      amandadillonSep 7, 2025
      If your Yard-Man Lawn Mower occasionally skips or hesitates at high speed, it might be due to the spark plug gap being too close. Adjust the gap to .030”.

Summary

Maintaining Safety

General Operation Safety

Essential safety rules for operating the lawn mower safely.

Slope Operation Safety

Guidelines for safe mowing on inclined surfaces.

Child Safety Precautions

Protecting children from mower hazards during operation.

Service Safety Guidelines

Safety measures for handling fuel and performing maintenance.

Slope Gauge

Assembling Your Lawn Mower

Operating Your Lawn Mower

Fuel and Oil Filling Instructions

Proper procedures for fueling and oiling the mower engine.

Making Adjustments

Maintaining Your Lawn Mower

Troubleshooting

Common Mower Problems and Solutions

Guide to diagnosing and resolving typical mower issues.

Yard-Man 11A-589C401 Specifications

General IconGeneral
Cutting Width21 inches
Drive TypeSelf-Propelled
Deck MaterialSteel
Cutting Height1.25 to 3.75 inches
Cutting OptionsMulching, rear bag, side discharge
