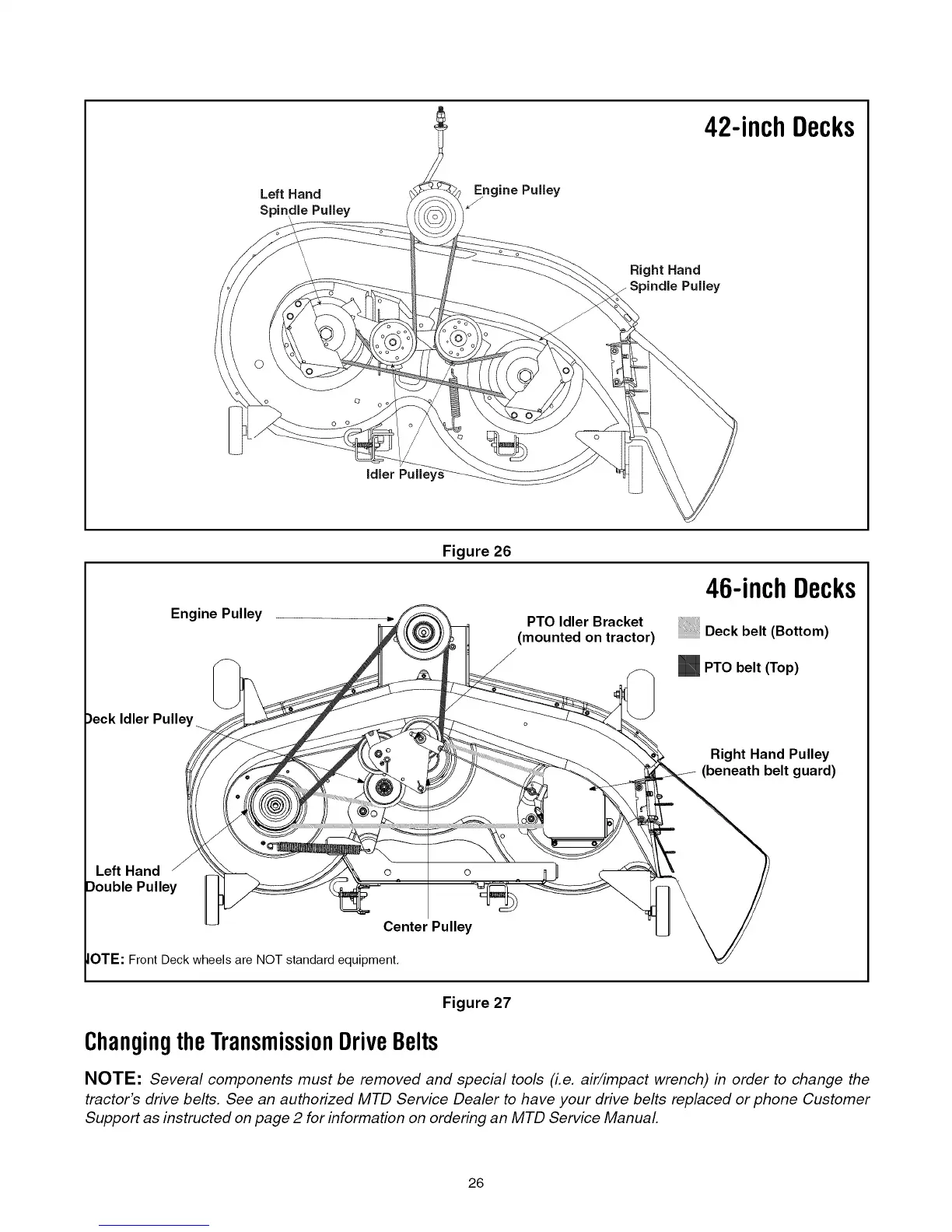

Left Hand
Spindle Pulley
42-inchDecks
Engine Pulley
Figure 26
PTO Idler Bracket
(mounted on tractor)
J
46-inchDecks
Deckbelt (Bottom)
[] PTO belt (Top)
)eck Idler
Right Hand Pulley
belt guard)
Left Hand _
Double Pulley
Center Pulley
]OTE: Front Deck wheels are NOT standard equipment,
Figure 27
ChangingtheTransmissionDriveBelts
NOTE: Several components must be removed and special tools (i.e. air/impact wrench) in order to change the
tractor's drive belts. See an authorized MTD Service Dealer to have your drive belts replaced or phone Customer
Support as instructed on page 2 for information on ordering an MTD Service Manual.
26
