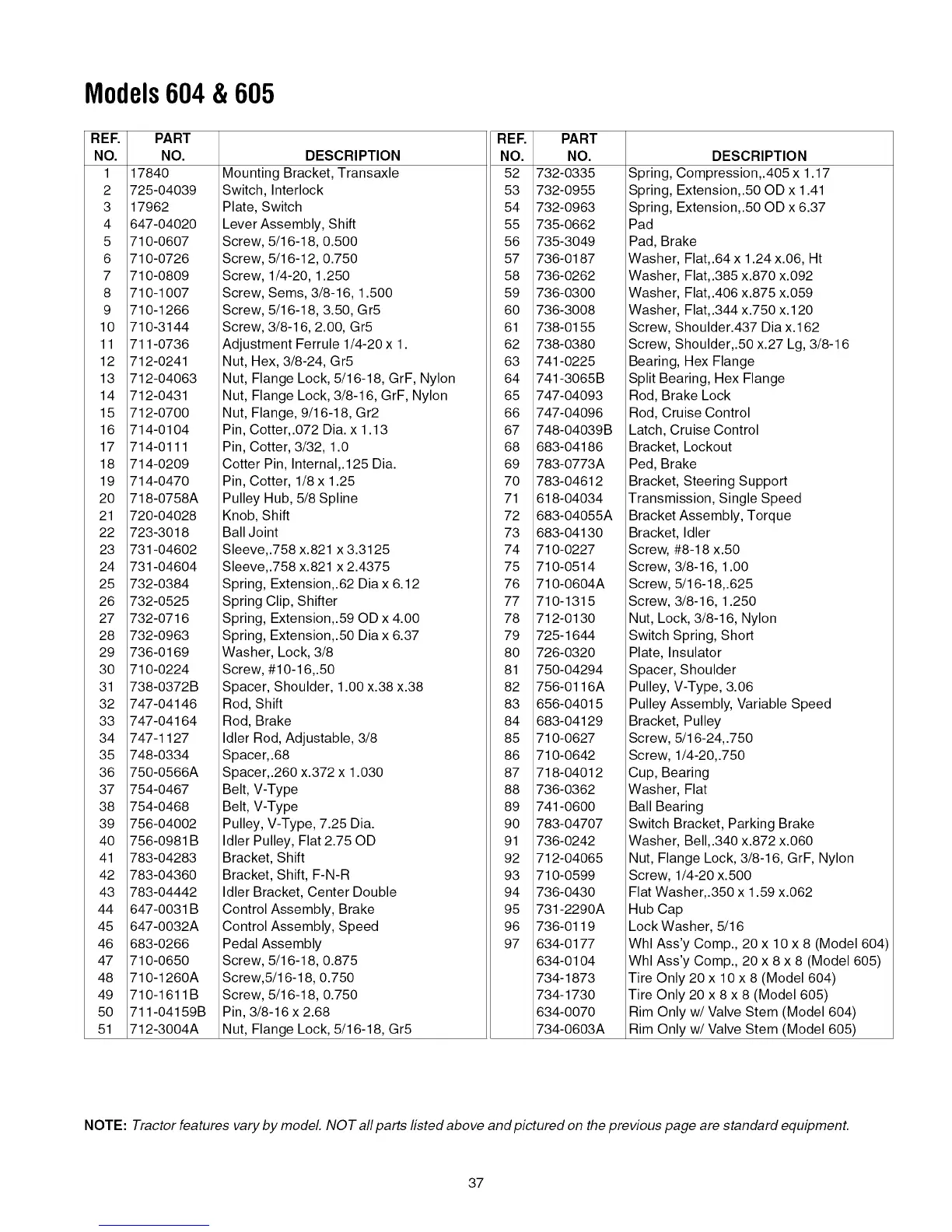

Yard-Man 604 - Page 37

Models604 & 605
REE PART
NO. NO.
1 17840
2 725-04039
3 17962
4 647-04020
5 710-0607
6 710-0726
7 710-0809
8 710-1007
9 710-1266
10 710-3144
11 711-0736
12 712-0241
13 712-04063
14 712-0431
15 712-0700
16 714-0104
17 714-0111
18 714-0209
19 714-0470
20 718-0758A
21 720-04028
22 723-3018
23 731-04602
24 731-04604
25 732-0384
26 732-0525
27 732-0716
28 732-0963
29 736-0169
30 710-0224
31 738-0372B
32 747-04146
33 747-04164
34 747-1127
35 748-0334
36 750-0566A
37 754-0467
38 754-0468
39 756-04002
40 756-0981B
41 783-04283
42 783-04360
43 783-04442
44 647-0031B
45 647-0032A
46 683-0266
47 710-0650
48 710-1260A
49 710-1611B
50 711-04159B
51 712-3004A
DESCRIPTION
Mounting Bracket, Transaxle
Switch, Interlock
Plate, Switch
Lever Assembly, Shift
Screw, 5/16-18, 0.500
Screw, 5/16-12, 0.750
Screw, 1/4-20, 1.250
Screw, Sems, 3/8-16, 1.500
Screw, 5/16-18, 3.50, Gr5
Screw, 3/8-16, 2.00, Gr5
Adjustment Ferrule 1/4-20 x 1.
Nut, Hex, 3/8-24, Gr5
Nut, Flange Lock, 5/16-18, GrF, Nylon
Nut, Flange Lock, 3/8-16, GrF, Nylon
Nut, Flange, 9/16-18, Gr2
Pin, Cotter,.072 Dia. x 1.13
Pin, Cotter, 3/32, 1.0
Cotter Pin, Internal,.125 Dia.
Pin, Cotter, 1/8 x 1.25
Pulley Hub, 5/8 Spline
Knob, Shift
Ball Joint
Sleeve,.758 x.821 x 3.3125
Sleeve,.758 x.821 x 2.4375
Spring, Extension,.62 Dia x 6.12
Spring Clip, Shifter
Spring, Extension,.59 OD x 4.00
Spring, Extension,.50 Dia x 6.37
Washer, Lock, 3/8
Screw, #10-16,.50
Spacer, Shoulder, 1.00 x.38 x.38
Rod, Shift
Rod, Brake
Idler Rod, Adjustable, 3/8
Spacer, .68
Spacer,.260 x.372 x 1.030
Belt, V-Type
Belt, V-Type
Pulley, V-Type, 7.25 Dia.
Idler Pulley, Flat 2.75 OD
Bracket, Shift
Bracket, Shift, F-N-R
Idler Bracket, Center Double
Control Assembly, Brake
Control Assembly, Speed
Pedal Assembly
Screw, 5/16-18, 0.875
Screw,5/16-18, 0.750
Screw, 5/16-18, 0.750
Pin, 3/8-16 x 2.68
Nut, Flange Lock, 5/16-18, Gr5
REF.
NO.
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
PART
NO.
732-0335
732-0955
732-0963
735-0662
735-3049
736-0187
736-0262
736-0300
736-3008
738-0155
738-0380
741-0225
741-3065B
747-04093
747-04096
748-04039B
683-04186
783-0773A
783-04612
618-04034
683-04055A
683-04130
710-0227
710-0514
710-0604A
710-1315
712-0130
725-1644
726-0320
750-04294
756-0116A
656-04015
683-04129
710-0627
710-0642
718-04012
736-0362
741-0600
783-04707
736-0242
712-04065
710-0599
736-0430
731-2290A
736-0119
634-0177
634-0104
734-1873
734-1730
634-0070
734-0603A
DESCRIPTION
Spring, Compression,.405 x 1.17
Spring, Extension,.50 OD x 1.41
Spring, Extension,.50 OD x 6.37
Pad
Pad, Brake
Washer, Flat,.64 x 1.24 x.06, Ht
Washer, Flat,.385 x.870 x.092
Washer, Flat,.406 x.875 x.059
Washer, Flat,.344 x.750 x. 120
Screw, Shoulder.437 Dia x.162
Screw, Shoulder,.50 x.27 Lg, 3/8-16
Bearing, Hex Flange
Split Bearing, Hex Flange
Rod, Brake Lock
Rod, Cruise Control
Latch, Cruise Control
Bracket, Lockout
Ped, Brake
Bracket, Steering Support
Transmission, Single Speed
Bracket Assembly, Torque
Bracket, Idler
Screw, #8-18 x.50
Screw, 3/8-16, 1.00
Screw, 5/16-18,.625
Screw, 3/8-16, 1.250
Nut, Lock, 3/8-16, Nylon
Switch Spring, Short
Plate, Insulator
Spacer, Shoulder
Pulley, V-Type, 3.06
Pulley Assembly, Variable Speed
Bracket, Pulley
Screw, 5/16-24, .750
Screw, 1/4-20,.750
Cup, Bearing
Washer, Flat
Ball Bearing
Switch Bracket, Parking Brake
Washer, Bell,.340 x.872 x.060
Nut, Flange Lock, 3/8-16, GrF, Nylon
Screw, 1/4-20 x.500
Flat Washer,.350 x 1.59 x.062
Hub Cap
Lock Washer, 5/16
Whl Ass'y Comp., 20 x 10 x 8 (Model 604)
Whl Ass'y Comp., 20 x 8 x 8 (Model 605)
Tire Only 20 x 10 x 8 (Model 604)
Tire Only 20 x 8 x 8 (Model 605)
Rim Only w/Valve Stem (Model 604)
Rim Only w/Valve Stem (Model 605)
NOTE: Tractor features vary by model NOT all parts listed above and pictured on the previous page are standard equipment.
37
