Yard-Man 604 - Page 39

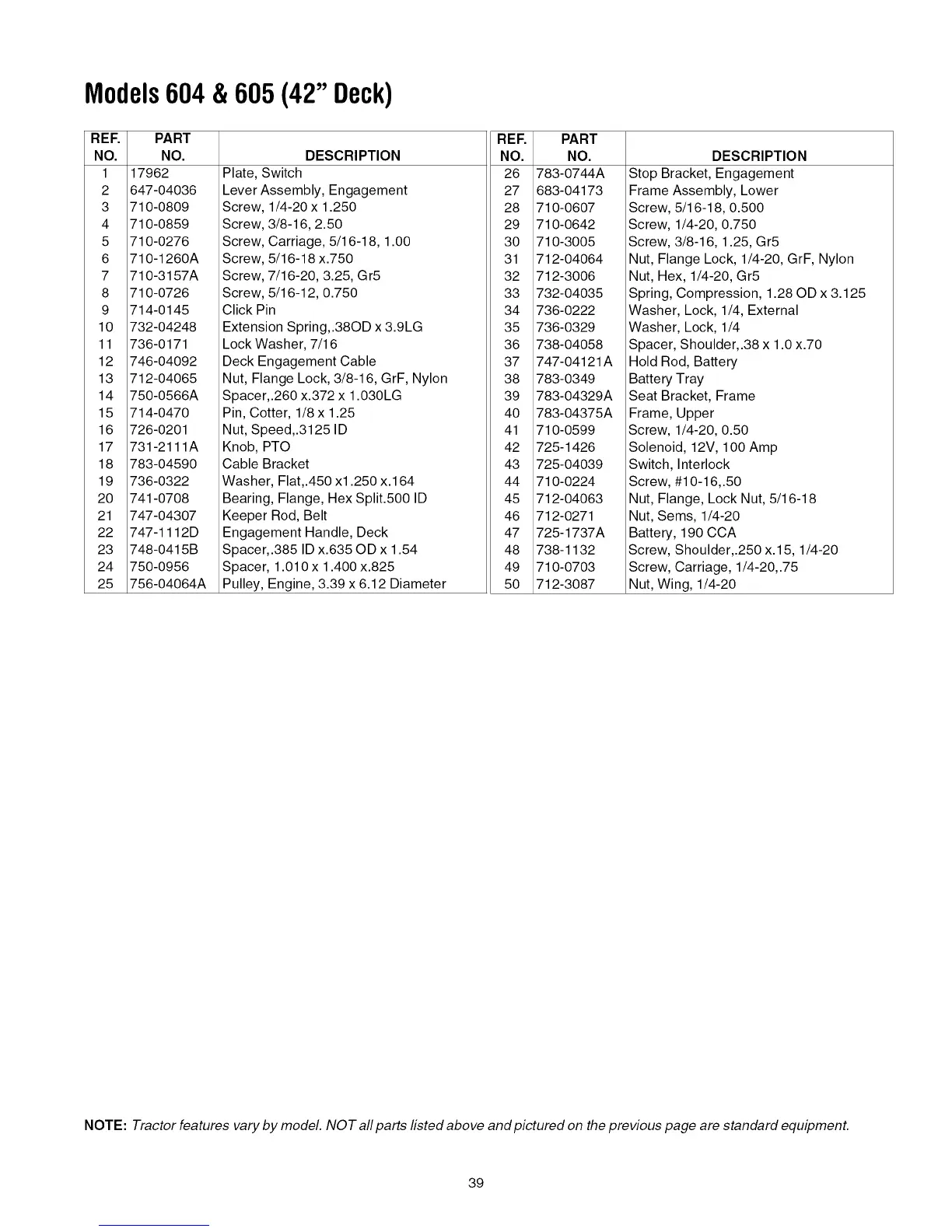

Models604 & 605(42" Deck)
REE PART
NO. NO.
1 17962
2 647-04036
3 710-0809
4 710-0859
5 710-0276
6 710-1260A
7 710-3157A
8 710-0726
9 714-0145
10 732-04248
11 736-0171
12 746-04092
13 712-04065
14 750-0566A
15 714-0470
16 726-0201
17 731-2111A
18 783-04590
19 736-0322
20 741-0708
21 747-04307
22 747-1112D
23 748-0415B
24 750-0956
25 756-04064A
DESCRIPTION
Plate, Switch
Lever Assembly, Engagement
Screw, 1/4-20 x 1.250
Screw, 3/8-16, 2.50
Screw, Carriage, 5/16-18, 1.00
Screw, 5/16-18 x.750
Screw, 7/16-20, 3.25, Gr5
Screw, 5/16-12, 0.750
Click Pin
Extension Spring,.38OD x 3.9LG
Lock Washer, 7/16
Deck Engagement Cable
Nut, Flange Lock, 3/8-16, GrF, Nylon
Spacer,.260 x.372 x 1.030LG
Pin, Cotter, 1/8 x 1.25
Nut, Speed,.3125 ID
Knob, PTO
Cable Bracket
Washer, Flat,.450 x1.250 x.164
Bearing, Flange, Hex Split.500 ID
Keeper Rod, Belt
Engagement Handle, Deck
Spacer,.385 ID x.635 OD x 1.54
Spacer, 1.010 x 1.400 x.825
Pulley, Engine, 3.39 x 6.12 Diameter
REF. PART
NO. NO.
26 783-0744A
27 683-04173
28 710-0607
29 710-0642
30 710-3005
31 712-04064
32 712-3006
33 732-04035
34 736-0222
35 736-0329
36 738-04058
37 747-04121A
38 783-0349
39 783-04329A
40 783-04375A
41 710-0599
42 725-1426
43 725-04039
44 710-0224
45 712-04063
46 712-0271
47 725-1737A
48 738-1132
49 710-0703
50 712-3087
DESCRIPTION
Stop Bracket, Engagement
Frame Assembly, Lower
Screw, 5/16-18, 0.500
Screw, 1/4-20, 0.750
Screw, 3/8-16, 1.25, Gr5
Nut, Flange Lock, 1/4-20, GrF, Nylon
Nut, Hex, 1/4-20, Gr5
Spring, Compression, 1.28 OD x 3.125
Washer, Lock, 1/4, External
Washer, Lock, 1/4
Spacer, Shoulder,.38 x 1.0 x.70
Hold Rod, Battery
Battery Tray
Seat Bracket, Frame
Frame, Upper
Screw, 1/4-20, 0.50
Solenoid, 12V, 100 Amp
Switch, Interlock
Screw, #10-16, .50
Nut, Flange, Lock Nut, 5/16-18
Nut, Sems, 1/4-20
Battery, 190 CCA
Screw, Shoulder,.250 x.15, 1/4-20
Screw, Carriage, 1/4-20,.75
Nut, Wing, 1/4-20
NOTE: Tractor features vary by model. NOT all parts listed above and pictured on the previous page are standard equipment.
