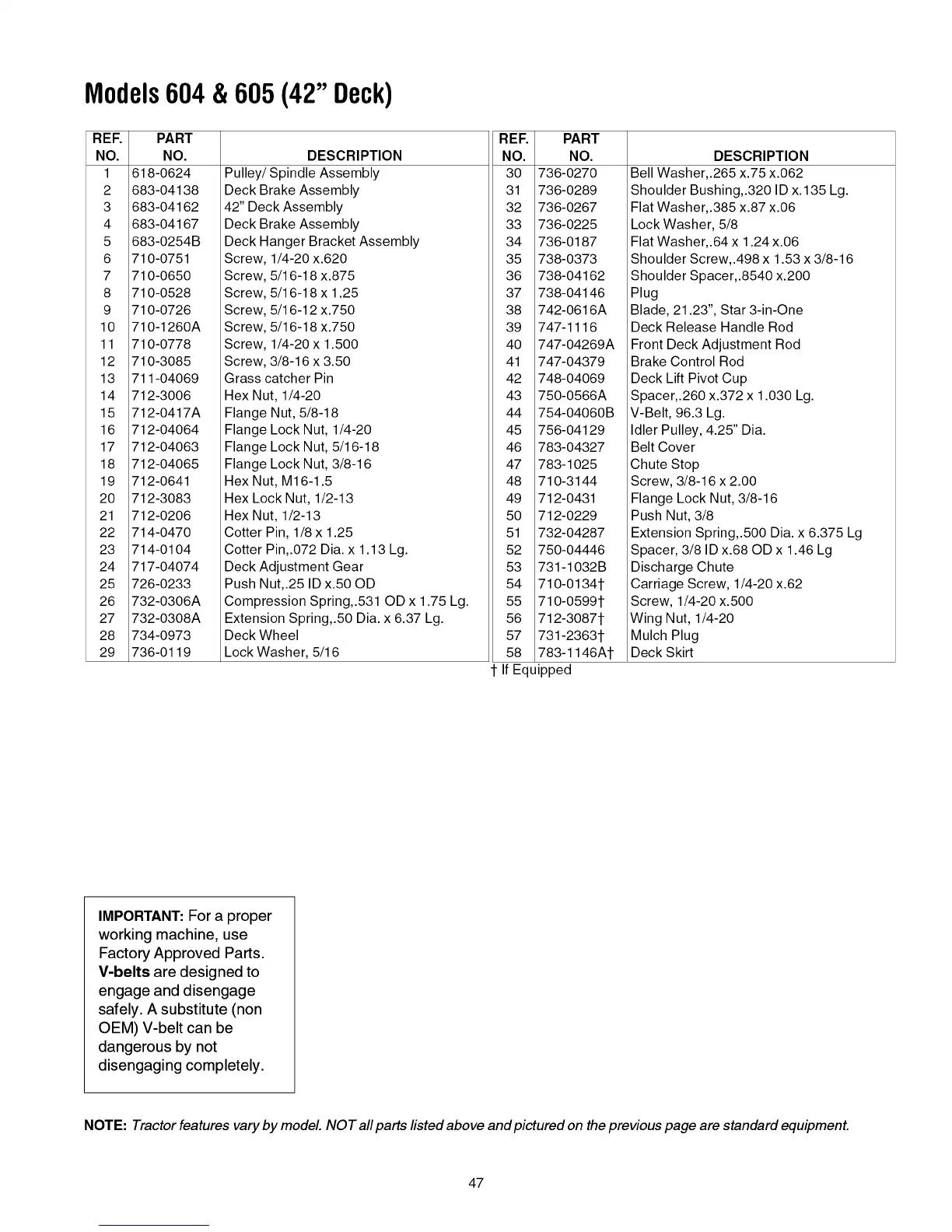

Yard-Man 604 - Page 47

Models604 & 605(42" Deck)
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
PART
NO.
618-0624
683-04138
683-04162
683-04167
683-0254B
710-0751
710-0650
710-0528
710-0726
710-1260A
710-0778
710-3085
711-04069
712-3006
712-0417A
712-04064
712-04063
712-04065
712-0641
712-3083
712-0206
714-0470
714-0104
717-04074
726-0233
732-0306A
732-0308A
734-0973
736-0119
DESCRIPTION
Pulley/Spindle Assembly
Deck Brake Assembly
42" Deck Assembly
Deck Brake Assembly
Deck Hanger Bracket Assembly
Screw, 1/4-20 x.620
Screw, 5/16-18 x.875
Screw, 5/16-18 x 1.25
Screw, 5/16-12 x.750
Screw, 5/16-18 x.750
Screw, 1/4-20 x 1.500
Screw, 3/8-16 x 3.50
Grass catcher Pin
Hex Nut, 1/4-20
Flange Nut, 5/8-18
Flange Lock Nut, 1/4-20
Flange Lock Nut, 5/16-18
Flange Lock Nut, 3/8-16
Hex Nut, M16-1.5
Hex Lock Nut, 1/2-13
Hex Nut, 1/2-13
Cotter Pin, 1/8 x 1.25
Cotter Pin,.072 Dia. x 1.13 Lg.
Deck Adjustment Gear
Push Nut,.25 ID x.50 OD
Compression Spring,.531 OD x 1.75 Lg.
Extension Spring,.50 Dia. x 6.37 Lg.
Deck Wheel
Lock Washer, 5/16
REE PART
NO. NO.
30 736-0270
31 736-0289
32 736-0267
33 736-0225
34 736-0187
35 738-0373
36 738-04162
37 738-04146
38 742-0616A
39 747-1116
40 747-04269A
41 747-04379
42 748-04069
43 750-0566A
44 754-04060B
45 756-04129
46 783-04327
47 783-1025
48 710-3144
49 712-0431
50 712-0229
51 732-04287
52 750-04446
53 731-1032B
54 710-0134t
55 710-0599t
56 712-3087t
57 731-2363t
58 783-1146At
tlfEquipped
DESCRIPTION
Bell Washer,.265 x.75 x.062
Shoulder Bushing,.320 ID x.135 Lg.
Flat Washer,.385 x.87 x.06
Lock Washer, 5/8
Flat Washer,.64 x 1.24 x.06
Shoulder Screw,.498 x 1.53 x 3/8-16
Shoulder Spacer,.8540 x.200
Plug
Blade, 21.23", Star 3-in-One
Deck Release Handle Rod
Front Deck Adjustment Rod
Brake Control Rod
Deck Lift Pivot Cup
Spacer,.260 x.372 x 1.030 Lg.
V-Belt, 96.3 Lg.
Idler Pulley, 4.25" Dia.
Belt Cover
Chute Stop
Screw, 3/8-16 x 2.00
Flange Lock Nut, 3/8-16
Push Nut, 3/8
Extension Spring,.500 Dia. x 6.375 Lg
Spacer, 3/8 ID x.68 OD x 1.46 Lg
Discharge Chute
Carriage Screw, 1/4-20 x.62
Screw, 1/4-20 x.500
Wing Nut, 1/4-20
Mulch Plug
Deck Skirt
IMPORTANT:For a proper
working machine, use
Factory Approved Parts.
V-belts are designed to
engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.
NOTE: Tractor features vary by model NOT all parts listed above and pictured on the previous page are standard equipment.
47
