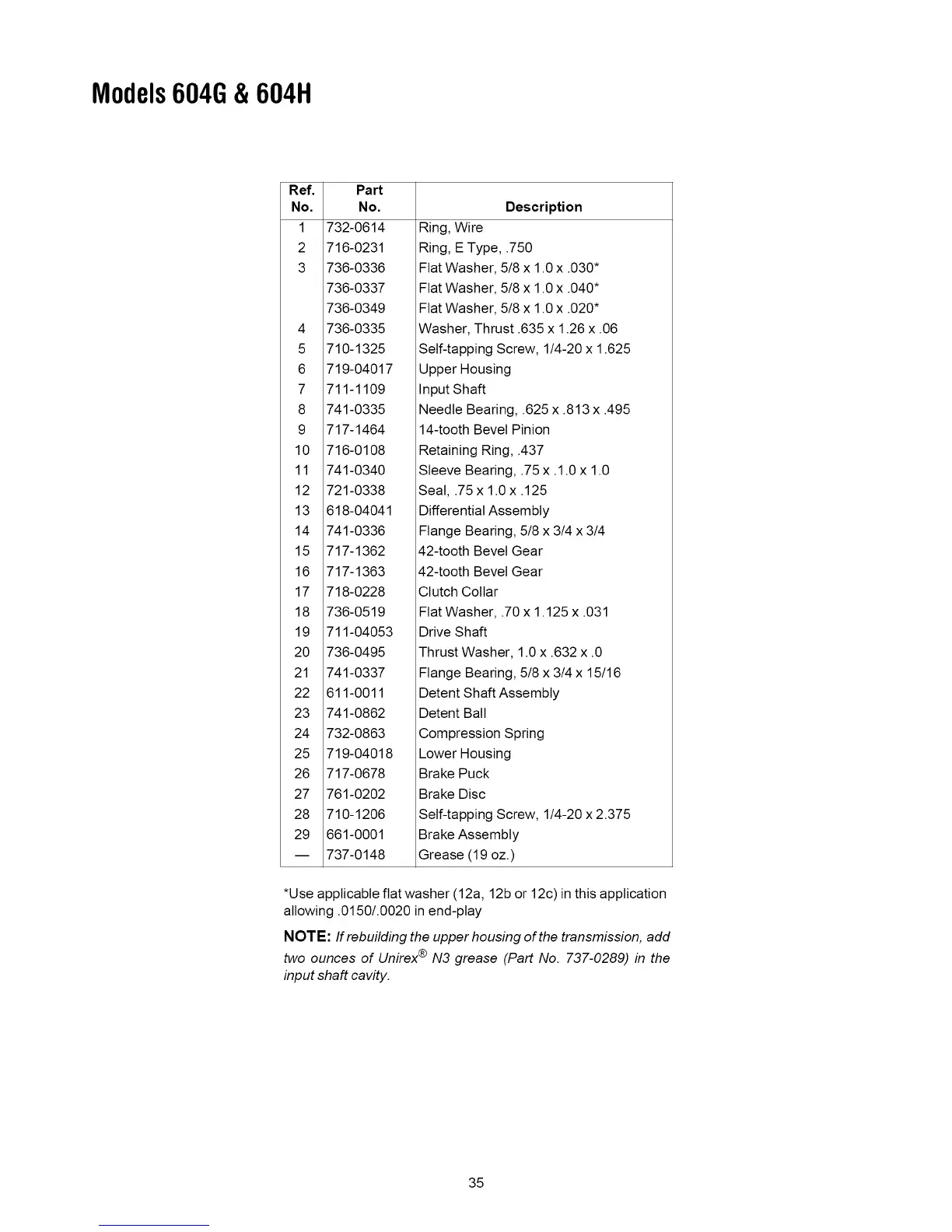

Yard-Man 604G - Page 35

Models604G& 604H
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Part
No.
732-0614
716-0231
736-0336
736-0337
736-0349
736-0335
710-1325
719-04017
711-1109
741-0335
717-1464
716-0108
741-0340
721-0338
618-04041
741-0336
717-1362
717-1363
718-0228
736-0519
711-04053
736-0495
741-0337
611-0011
741-0862
732-0863
719-04018
717-0678
761-0202
710-1206
661-0001
737-0148
Description
Ring, Wire
Ring, E Type, .750
Flat Washer, 5/8 x 1.0 x .030"
Flat Washer, 5/8 x 1.0 x .040*
Flat Washer, 5/8 x 1.0 x .020*
Washer, Thrust .635 x 1.26 x .06
Self-tapping Screw, 1/4-20 x 1.625
Upper Housing
Input Shaft
Needle Bearing, .625 x .813 x .495
14-tooth Bevel Pinion
Retaining Ring, .437
Sleeve Bearing, .75 x .1.0 x 1.0
Seal, .75 x 1.0 x .125
Differential Assembly
Flange Bearing, 5/8 x 3/4 x 3/4
42-tooth Bevel Gear
42-tooth Bevel Gear
Clutch Collar
Flat Washer, .70 x 1.125 x .031
Drive Shaft
Thrust Washer, 1.0 x .632 x .0
Flange Bearing, 5/8 x 3/4 x 15/16
Detent Shaft Assembly
Detent Ball
Compression Spring
Lower Housing
Brake Puck
Brake Disc
Self-tapping Screw, 1/4-20 x 2.375
Brake Assembly
Grease (19 oz.)
*Use applicable flat washer (12a, 12b or 12c)in this application
allowing .0150/.0020 in end-play
NOTE: If rebuilding the upper housing of the transmission, add
two ounces of Unirex ® N3 grease (Part No. 737-0289) in the
input shaft cavity.
