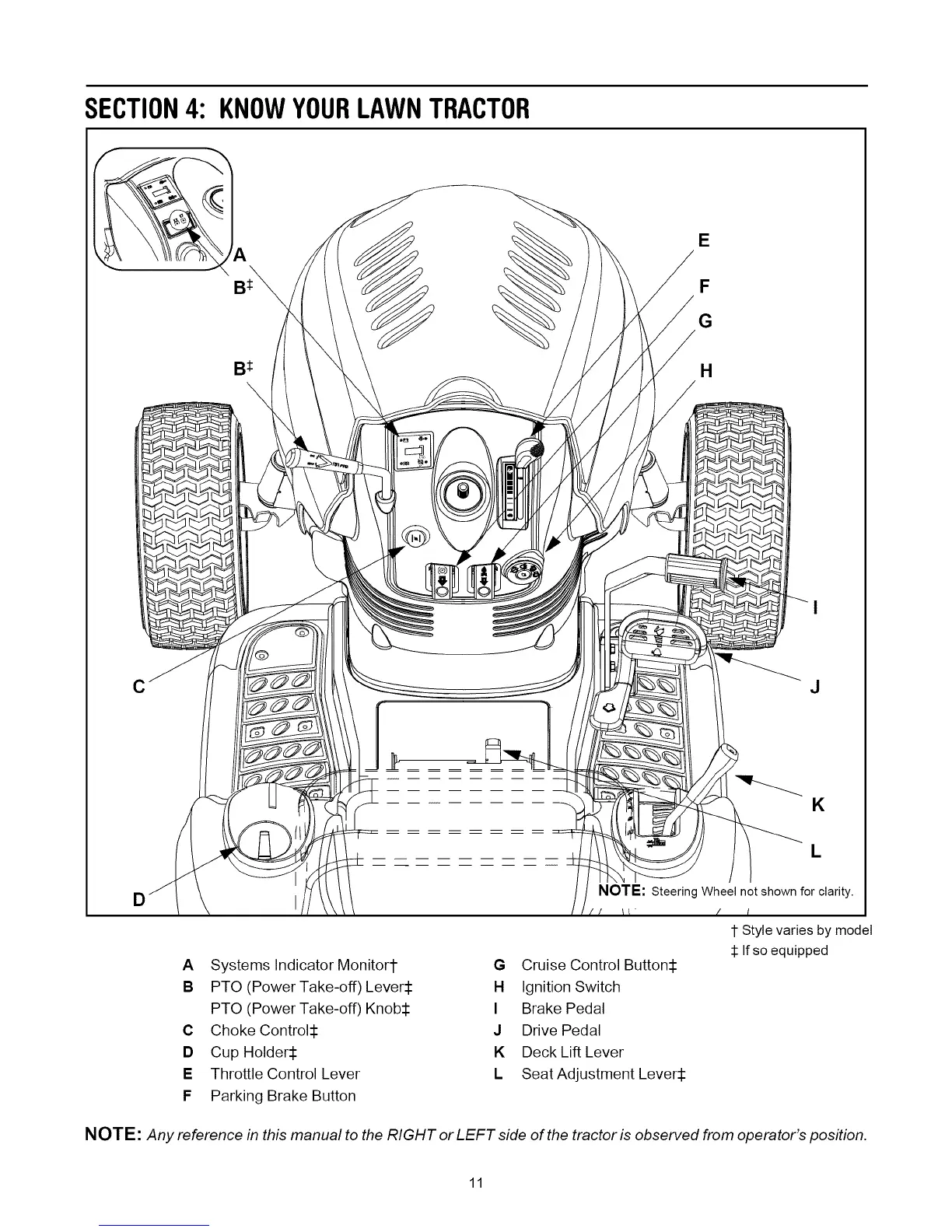

SECTION4: KNOWYOURLAWNTRACTOR
E
F
G
H
C
K
L
NOTE: Steering Wheel not shown for clarity.
A Systems Indicator Monitor1- G Cruise Control ButtonS
B PTO (Power Take-off) Levers H Ignition Switch
PTO (Power Take-off) Knobs I Brake Pedal
C Choke Controls J Drive Pedal
D Cup Holders K Deck Lift Lever
E Throttle Control Lever L Seat Adjustment Levers
F Parking Brake Button
1-Style varies by model
:1:If so equipped
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
11
