Engine Pulley
(or Electric PTO Clutch)
Left Hand Pulley
PTO Idler Bracket
(mounted on tractor)
42-inchDecks
Deck Belt (Bottom)
[]PTO Belt (Top)
Right Hand Pulley
(beneath belt guard)
Deck Idler Pulley
Electric PTO Clutch
Deck Idler Pulley
Center Pulley
Self-Tapping Screws
PTO Idler Bracket
j (mounted on tractor)
46-inchDecks
w/Electric PT0
Left Hand
Double Pulley
Engine Pulley
Center Pulley
_ Right Hand
_ _-_ ........ Double Pulley
_I-= h belt guard)
Self-Tapping Screws
PTO Idler Bracket
(mounted on tractor) 46-inchDecks
w/Manual PT0
Deck Idler Pulley
Left Hand _
Double Pulley
Right Hand Pulley
(beneath belt guard)
NOTE: Left hand belt covers not shown for clarity.
Center Pulley

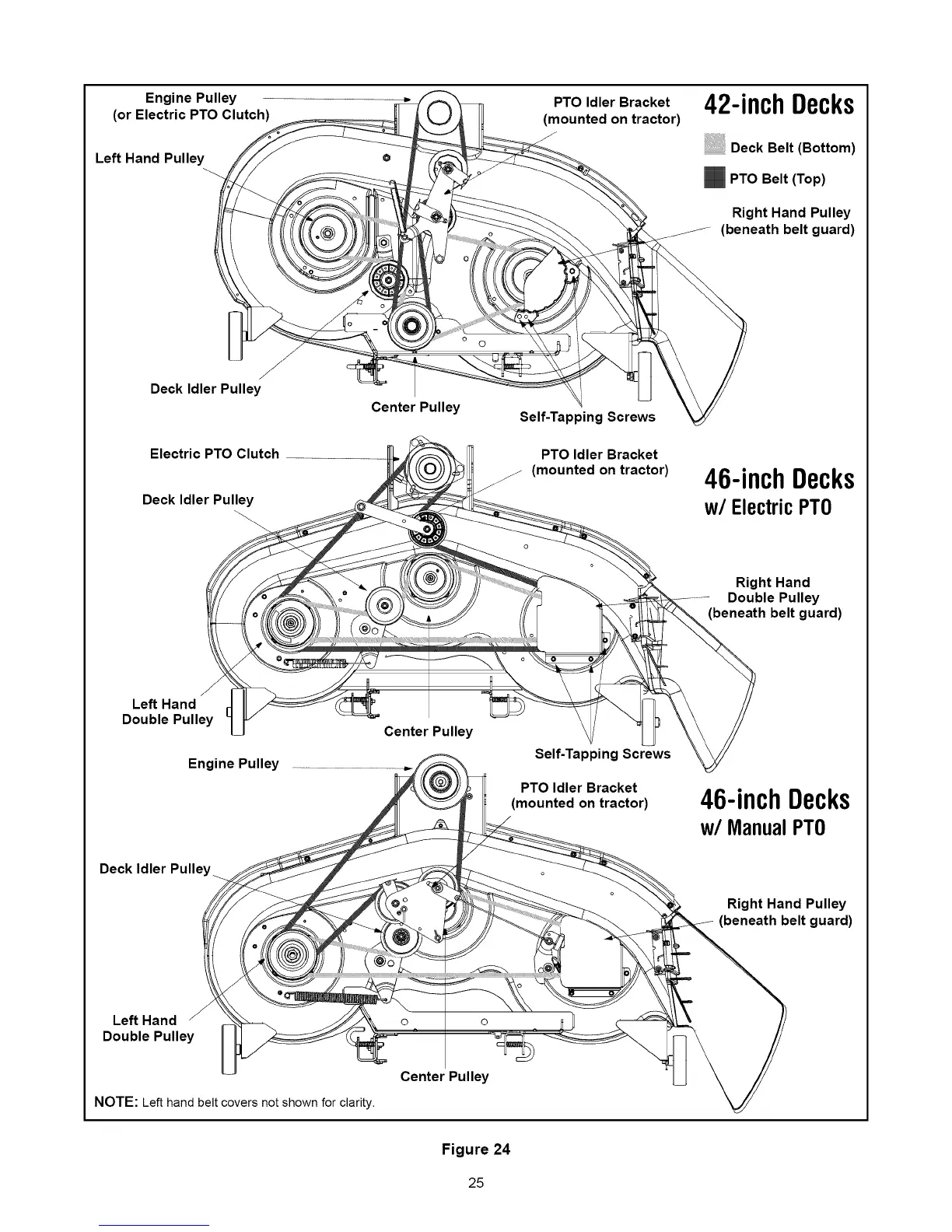

Figure 24
25
