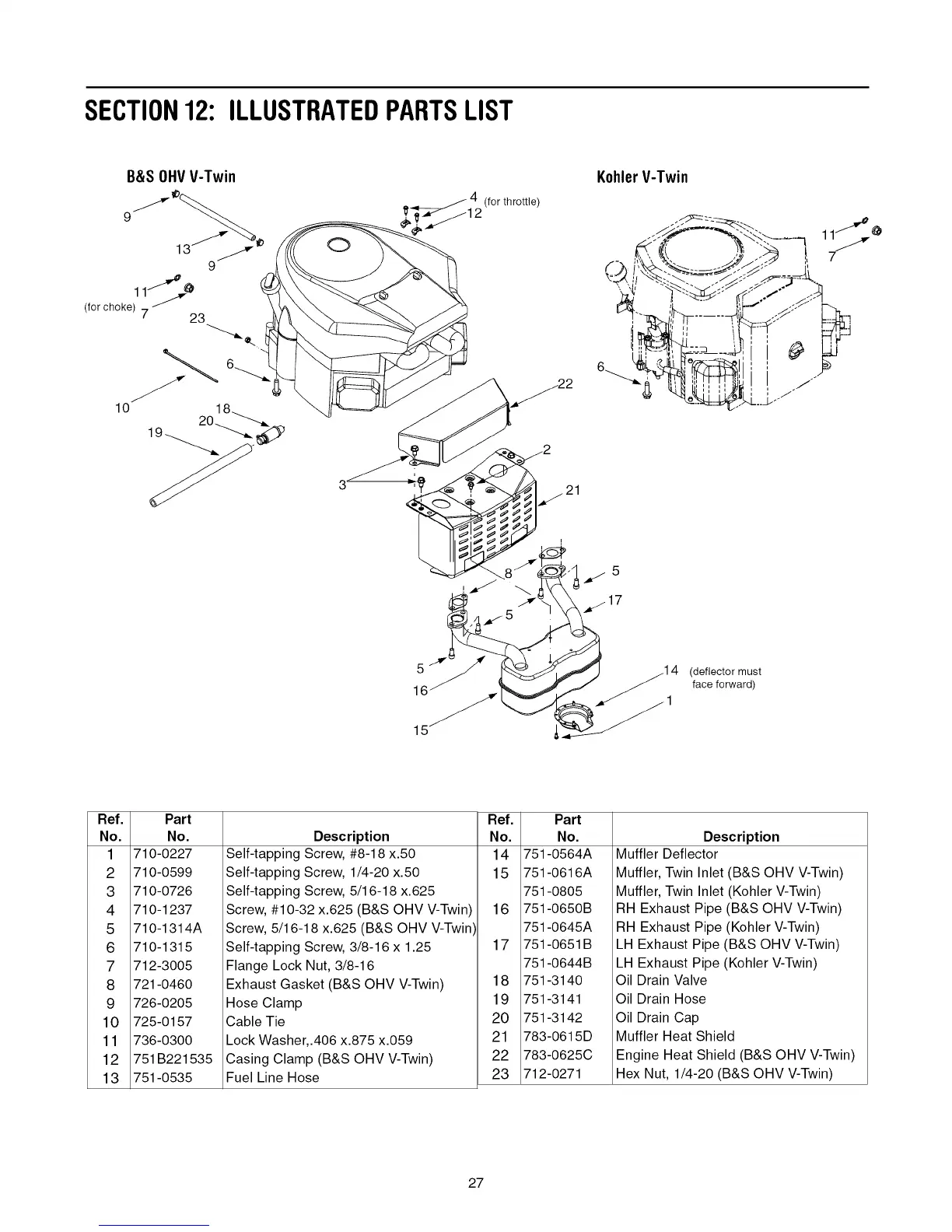

Yard-Man 615 - Section 12: Illustrated P Arts List

SECTION12: ILLUSTRATEDPARTSLIST
B&S OHVV-Twin
4 (for throttle)
KohlerV-Twin
21
(deflector must
face forward)
Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
Part
No.
710-0227
710@599
710-0726
710-1237
710-1314A
710-1315
712-3005
721-0460
726-0205
725-0157
736-0300
751 B221535
751-0535
Description
Self-tapping Screw, #8-18 x.50
Self-tapping Screw, 1/4-20 x.50
Self-tapping Screw, 5/16-18 x.625
Screw, #10-32 x.625 (B&S OHV V-Twin)
Screw, 5/16-18 x.625 (B&S OHV V-Twin
Self-tapping Screw, 3/8-16 x 1.25
Flange Lock Nut, 3/8-16
Exhaust Gasket (B&S OHV V-Twin)
Hose Clamp
Cable Tie
Lock Washer,.406 x.875 x.059
Casing Clamp (B&S OHV V-Twin)
Fuel Line Hose
Ref. Part
No. No.
14 751-0564A
15 751-0616A
751-0805
16 751-0650B
751-0645A
17 751-0651B
751-0644B
18 751-3140
19 751-3141
20 751-3142
21 783-0615D
22 783-0625C
23 712-0271
Description
Muffler Deflector
Muffler, Twin Inlet (B&S OHV V-Twin)
Muffler, Twin Inlet (Kohler V-Twin)
RH Exhaust Pipe (B&S OHV V-Twin)
RH Exhaust Pipe (Kohler V-Twin)
LH Exhaust Pipe (B&S OHV V-Twin)
LH Exhaust Pipe (Kohler V-Twin)
Oil Drain Valve
Oil Drain Hose
Oil Drain Cap
Muffler Heat Shield
Engine Heat Shield (B&S OHV V-Twin)
Hex Nut, 1/4-20 (B&S OHV V-Twin)
