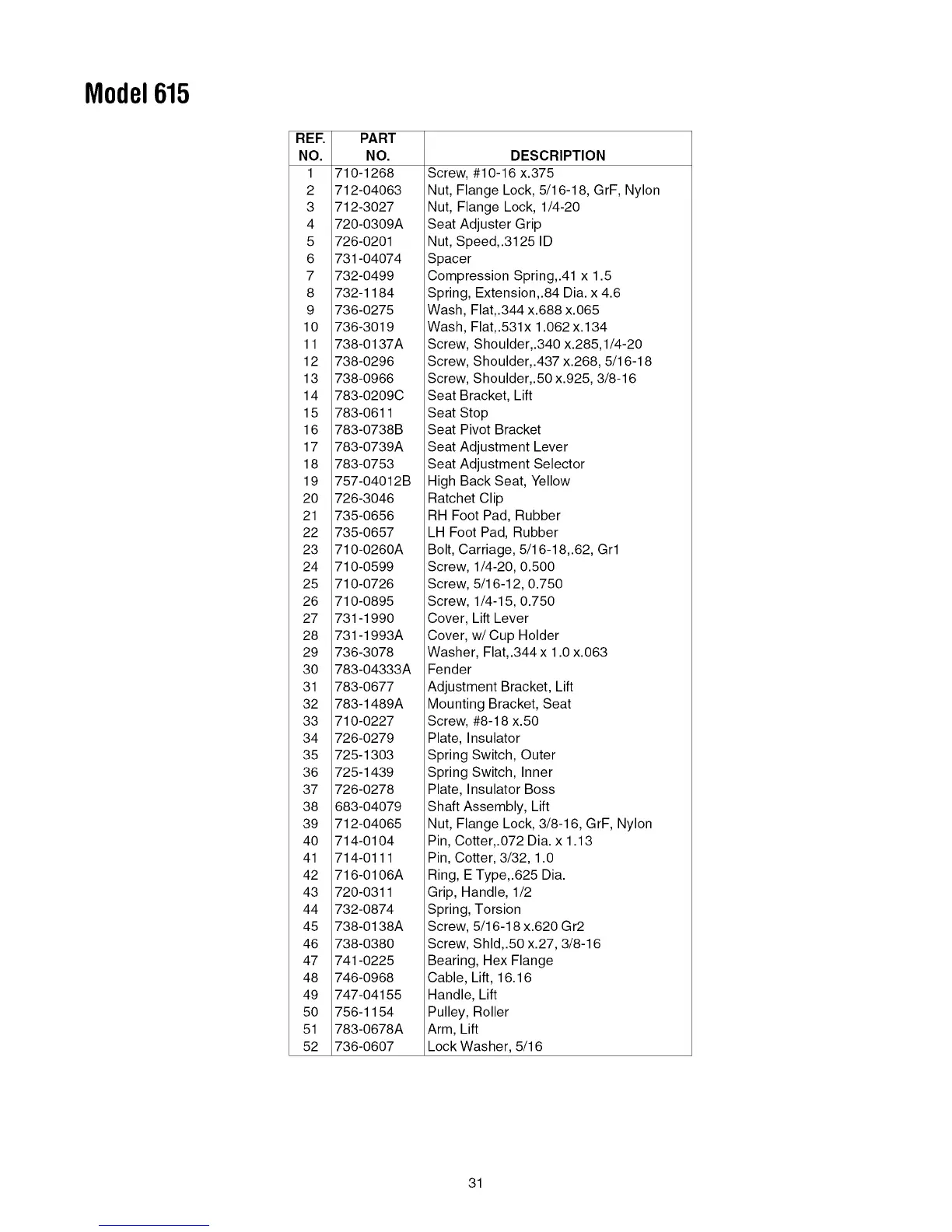

Yard-Man 615 - Page 31

Model615
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
PART
NO.
710-1268
712-04063
712-3027
720-0309A
726-0201
731-04074
732-0499
732-1184
736-0275
736-3019
738-0137A
738-0296
738-0966
783-0209C
783-0611
783-0738B
783-0739A
783-0753
757-04012B
726-3046
735-0656
735-0657
710-0260A
710-0599
710-0726
710-0895
731-1990
731-1993A
736-3078
783-04333A
783-0677
783-1489A
710-0227
726-0279
725-1303
725-1439
726-0278
683-04079
712-04065
714-0104
714-0111
716-0106A
720-0311
732-0874
738-0138A
738-0380
741-0225
746-0968
747-04155
756-1154
783-0678A
736-0607
DESCRIPTION
Screw, #10-16 x.375
Nut, Flange Lock, 5/16-18, GrF, Nylon
Nut, Flange Lock, 1/4-20
Seat Adjuster Grip
Nut, Speed,.3125 ID
Spacer
Compression Spring,.41 x 1.5
Spring, Extension,.84 Dia. x 4.6
Wash, Flat,.344 x.688 x.065
Wash, Flat,.531x 1.062 x.134
Screw, Shoulder,.340 x.285,1/4-20
Screw, Shoulder,.437 x.268, 5/16-18
Screw, Shoulder,.50 x.925, 3/8-16
Seat Bracket, Lift
Seat Stop
Seat Pivot Bracket
Seat Adjustment Lever
Seat Adjustment Selector
High Back Seat, Yellow
Ratchet Clip
RH Foot Pad, Rubber
LH Foot Pad, Rubber
Bolt, Carriage, 5/16-18,.62, Grl
Screw, 1/4-20, 0.500
Screw, 5/16-12, 0.750
Screw, 1/4-15, 0.750
Cover, Lift Lever
Cover, w/Cup Holder
Washer, Flat,.344 x 1.0 x.063
Fender
Adjustment Bracket, Lift
Mounting Bracket, Seat
Screw, #8-18 x.50
Plate, Insulator
Spring Switch, Outer
Spring Switch, Inner
Plate, Insulator Boss
Shaft Assembly, Lift
Nut, Flange Lock, 3/8-16, GrF, Nylon
Pin, Cotter,.072 Dia. x 1.13
Pin, Cotter, 3/32, 1.0
Ring, E Type,.625 Dia.
Grip, Handle, 1/2
Spring, Torsion
Screw, 5/16-18 x.620 Gr2
Screw, Shld,.50 x.27, 3/8-16
Bearing, Hex Flange
Cable, Lift, 16.16
Handle, Lift
Pulley, Roller
Arm, Lift
Lock Washer, 5/16
31
