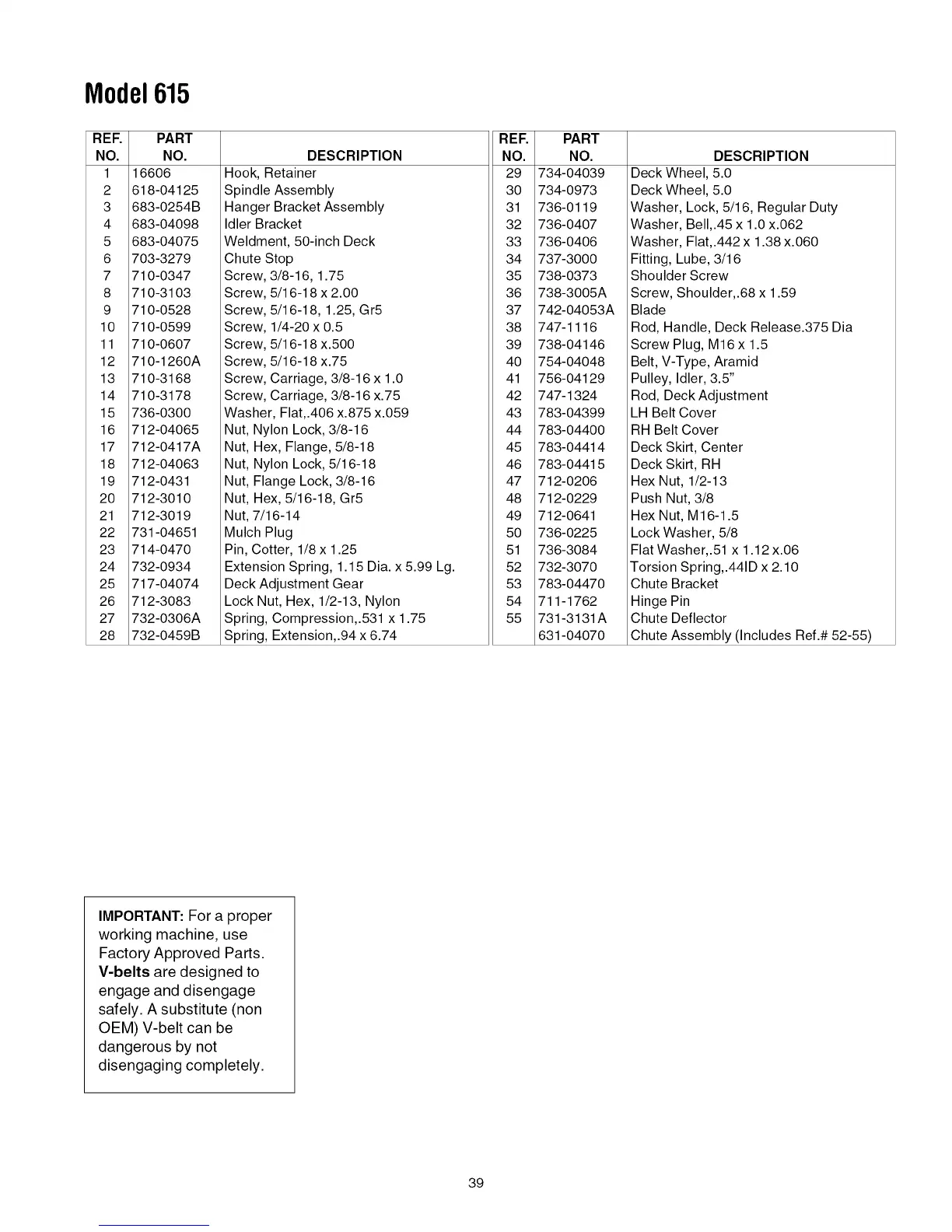

Model615
RER PART
NO. NO.
1 16606
2 618-04125
3 683-0254B
4 683-04098
5 683-04075
6 703-3279
7 710-0347
8 710-3103
9 710-0528
10 710-0599
11 710-0607
12 710-1260A
13 710-3168
14 710-3178
15 736-0300
16 712-04065
17 712-0417A
18 712-04063
19 712-0431
20 712-3010
21 712-3019
22 731-04651
23 714-0470
24 732-0934
25 717-04074
26 712-3083
27 732-0306A
28 732-0459B
DESCRIPTION
Hook, Retainer
Spindle Assembly
Hanger Bracket Assembly
Idler Bracket
Weldment, 50-inch Deck
Chute Stop
Screw, 3/8-16, 1.75
Screw, 5/16-18 x 2.00
Screw, 5/16-18, 1.25, Gr5
Screw, 1/4-20 x 0.5
Screw, 5/16-18 x.500
Screw, 5/16-18 x.75
Screw, Carriage, 3/8-16 x 1.0
Screw, Carriage, 3/8-16 x.75
Washer, Flat,.406 x.875 x.059
Nut, Nylon Lock, 3/8-16
Nut, Hex, Flange, 5/8-18
Nut, Nylon Lock, 5/16-18
Nut, Flange Lock, 3/8-16
Nut, Hex, 5/16-18, Gr5
Nut, 7/16-14
Mulch Plug
Pin, Cotter, 1/8 x 1.25
Extension Spring, 1.15 Dia. x 5.99 Lg.
Deck Adjustment Gear
Lock Nut, Hex, 1/2-13, Nylon
Spring, Compression,.531 x 1.75
Spring, Extension,.94 x 6.74
REF.
NO.
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
PART
NO.
734-04039
734-0973
736-0119
736-0407
736-0406
737-3000
738-0373
738-3005A
742-04053A
747-1116
738-04146
754-04048
756-04129
747-1324
783-04399
783-04400
783-04414
783-04415
712-0206
712-0229
712-0641
736-0225
736-3084
732-3070
783-04470
711-1762
731-3131A
631-04070
DESCRIPTION
Deck Wheel, 5.0
Deck Wheel, 5.0
Washer, Lock, 5/16, Regular Duty
Washer, Bell,.45 x 1.0 x.062
Washer, Flat,.442 x 1.38 x.060
Fitting, Lube, 3/16
Shoulder Screw
Screw, Shoulder,.68 x 1.59
Blade
Rod, Handle, Deck Release.375 Dia
Screw Plug, M16x 1.5
Belt, V-Type, Aramid
Pulley, Idler, 3.5"
Rod, Deck Adjustment
LH Belt Cover
RH Belt Cover
Deck Skirt, Center
Deck Skirt, RH
Hex Nut, 1/2-13
Push Nut, 3/8
Hex Nut, M16-1.5
Lock Washer, 5/8
Flat Washer,.51 x 1.12x.06
Torsion Spring,.441D x 2.10
Chute Bracket
Hinge Pin
Chute Deflector
Chute Assembly (Includes Ref.# 52-55)
IMPORTANT:For a proper
working machine, use
Factory Approved Parts.
V-belts are designed to
engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.
39
