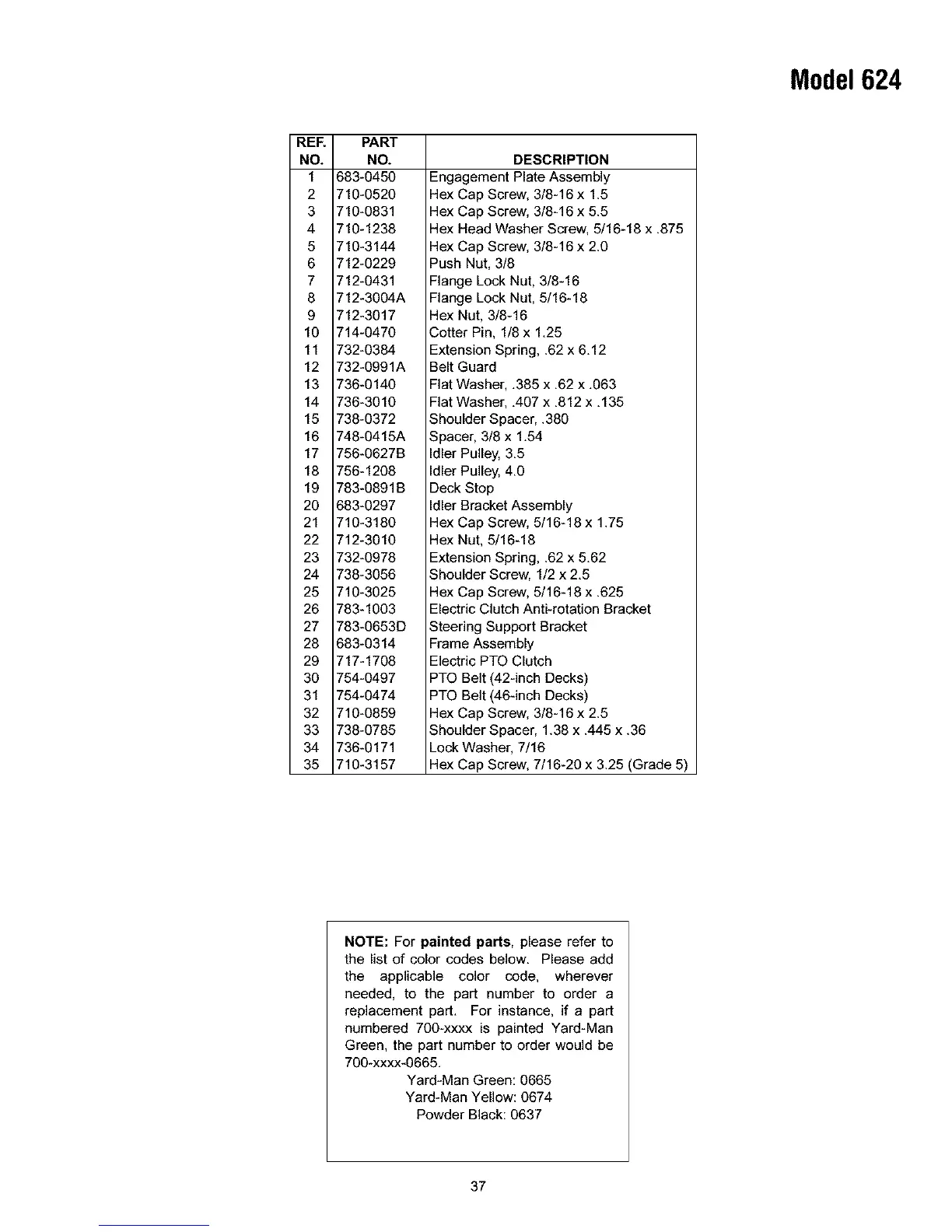

Yard-Man 624 - Page 37

Model624
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
PART
NO.
683-0450
710-0520
710-0831
710-1238
710-3144
712-0229
712-0431
712-3004A
712-3017
714-0470
732-0384
732-0991A
736-0140
736-3010
738-0372
748-0415A
756-0627B
756-1208
783-0891B
683-0297
710-3180
712-3010
732-0978
738-3056
710-3025
783-1003
783-0653D
683-0314
717-1708
754-0497
754-0474
710-0859
738-0785
736-0171
710-3157
DESCRIPTION
Engagement Plate Assembly
Hex Cap Screw, 3/8-16 x 1.5
Hex Cap Screw, 3/8-16 x 5.5
Hex Head Washer Screw. 5/16-18 x .875
Hex Cap Screw, 3/8-16 x 2.0
Push Nut, 3/8
Flange Lock Nut, 3/8-16
Flange Lock Nut, 5/16-18
Hex Nut, 3/8-16
Cotter Pin, 1/8 x 1.25
Extension Spring..62 x 6.12
Belt Guard
Flat Washer, .385 x .62 x .063
Flat Washer, .407 x .812 x .135
Shoulder Spacer, .380
Spacer, 3/8 x 1.54
Idler Pulley. 3.5
Idler Pulley. 4.0
Deck Stop
Idler Bracket Assembly
Hex Cap Screw, 5/16-18 x 1.75
Hex Nut, 5/16-18
Extension Spring..62 x 5.62
Shoulder Screw, 1/2 x 2.5
Hex Cap Screw, 5/16-18 x .625
Electric Clutch Anti-rotation Bracket
Steering Support Bracket
Frame Assembly
Electric PTO Clutch
PTO Belt (42-inch Decks)
PTO Belt (46-inch Decks)
Hex Cap Screw, 3/8-16 x 2.5
Shoulder Spacer, 1.38 x .445 x .36
Lock Washer, 7/16
Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
NOTE: For painted parts, please refer to
the list of color codes below. Please add
the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part
numbered 700-xxxx is painted Yard-Man
Green, the part number to order would be
700-xxxx-0665.
Yard-Man Green: 0665
Yard-Man Yellow: 0674
Powder Black: 0637
37
