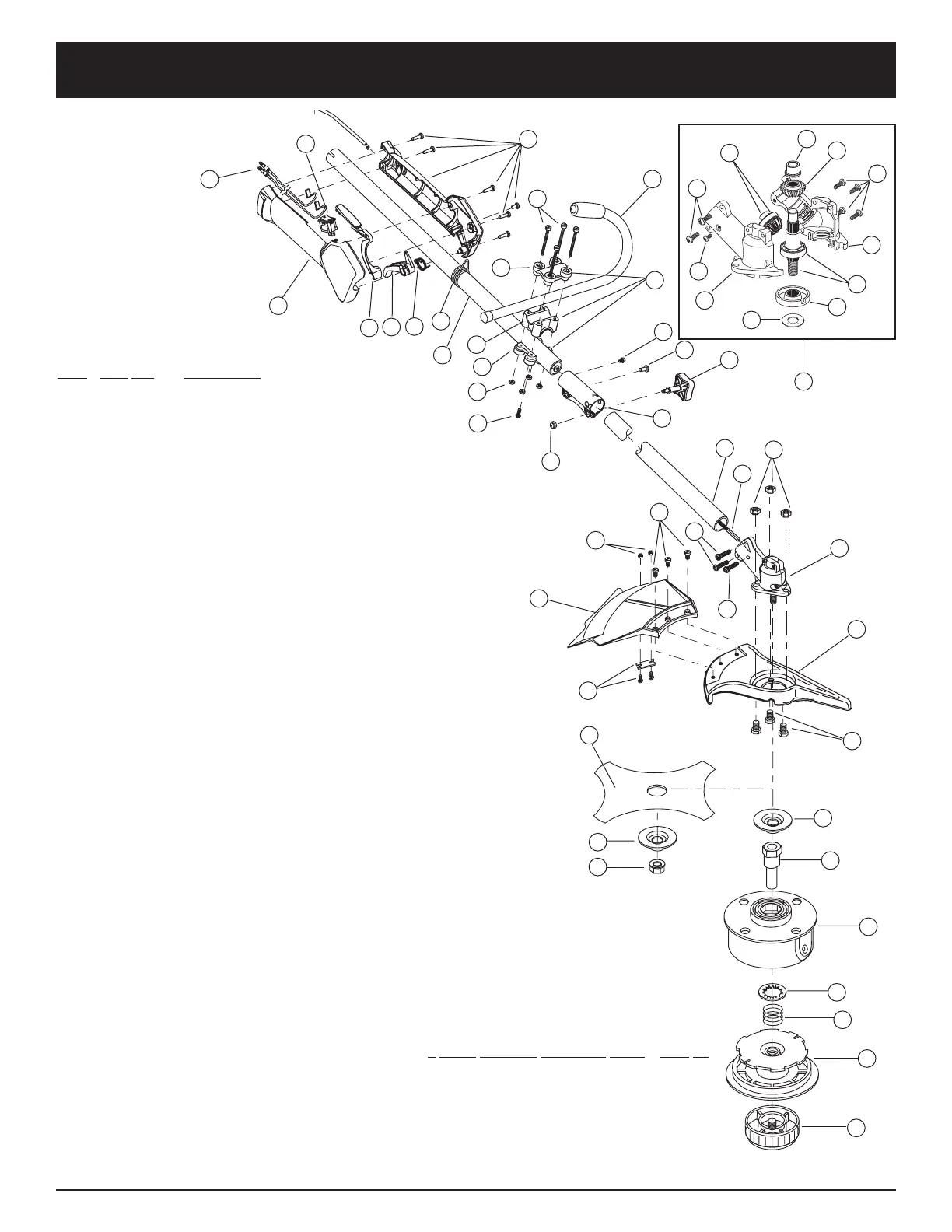

YM26BC PARTS LIST
Item Part
No. Description
1 753-04339 Throttle Housing Assembly (includes 2-4)
2 753-04340 Throttle Trigger Lock-Out
3 791-00058 Throttle Trigger
4 791-182690 Throttle Trigger Spring
5 791-182804 Lead Wire Assembly
6 791-182805 Switch Assembly (includes 5)
7 791-610327 Harness Clip
8 753-04503 Upper Drive Shaft Housing Assembly
9 791-181099 J-Handle Assembly
10 791-683295 Handle Bracket Assembly (includes 11-16)
11 791-181811 Screw
12 791-181812 Upper Handle Clamp
13 791-181813 Middle Handle Clamp
14 791-181814 Lower Handle Clamp
15 791-181815 Nut
16 791-145569 Anti-Rotation Screw
17 791-181616B Split Boom Coupler (includes 18-21)
18 791-182057 Screw
19 791-181617 Bolt
20 791-181618B Adjustment Knob
21 753-04386 Knob Retaining Nut
22 791-182541 Lower Drive Shaft Housing Assembly
23 791-613300 Lower Flexible Drive Shaft
24 791-182200 Shield Mount Screw Assembly
25 791-182193 2 piece Gearbox Assembly
(includes 26, 27, 29, 33, 41 & 43-48)
26 791-182195 Gearbox Mounting Hardware
27 791-145569 Anti-Rotation Screw
28 791-147492 Blade Shield/Shield Mount
29 791-182196 Blade Driver
30 791-683304 Shield Mounting Screw
31 753-1191 Shield Assembly (includes 33)
32 791-682061 Blade Assembly
33 791-147490 Retaining Washer
34 791-612483 Spool Shaft
35 791-683301 Outer Spool Assembly (includes 37)
36 791-612026 Retainer
37 791-610636B Spring
38 791-147495 Inner Reel
39 791-180814B Bump Head Knob Assembly
40 791-145873B 4-Tooth Blade
41 753-04348 Palnut
42 791-181699 Nut
* 791-180014B Blade Retaining Kit (includes 34 & 43)
* 791-613226 Locking Rod Tool
* 791-682075B Shoulder Harness
16
22
23
24
24
29
26
26
27
30
28
32
25
25
31
36
34
40
35
33
32
21
38
37
33
39
42
1
1
6
5
12
13
14
15
11
10
9
8
7
4
3
2
46
47
43
44
27
45
48
17
18
19
20
26
2 Piece Gearbox Assembly Parts – Item 25
43 791-182191 Left Housing
44 791-182192 Right Housing
45 791-182194 Pinion Gear Assembly
46 791-182199 Output Shaft Bushing
47 791-182198 Output Shaft Gear
48 791-182197 Output Shaft Assembly
(includes 46 & 47)
