Yard-Man YM90 - Page 81

E29

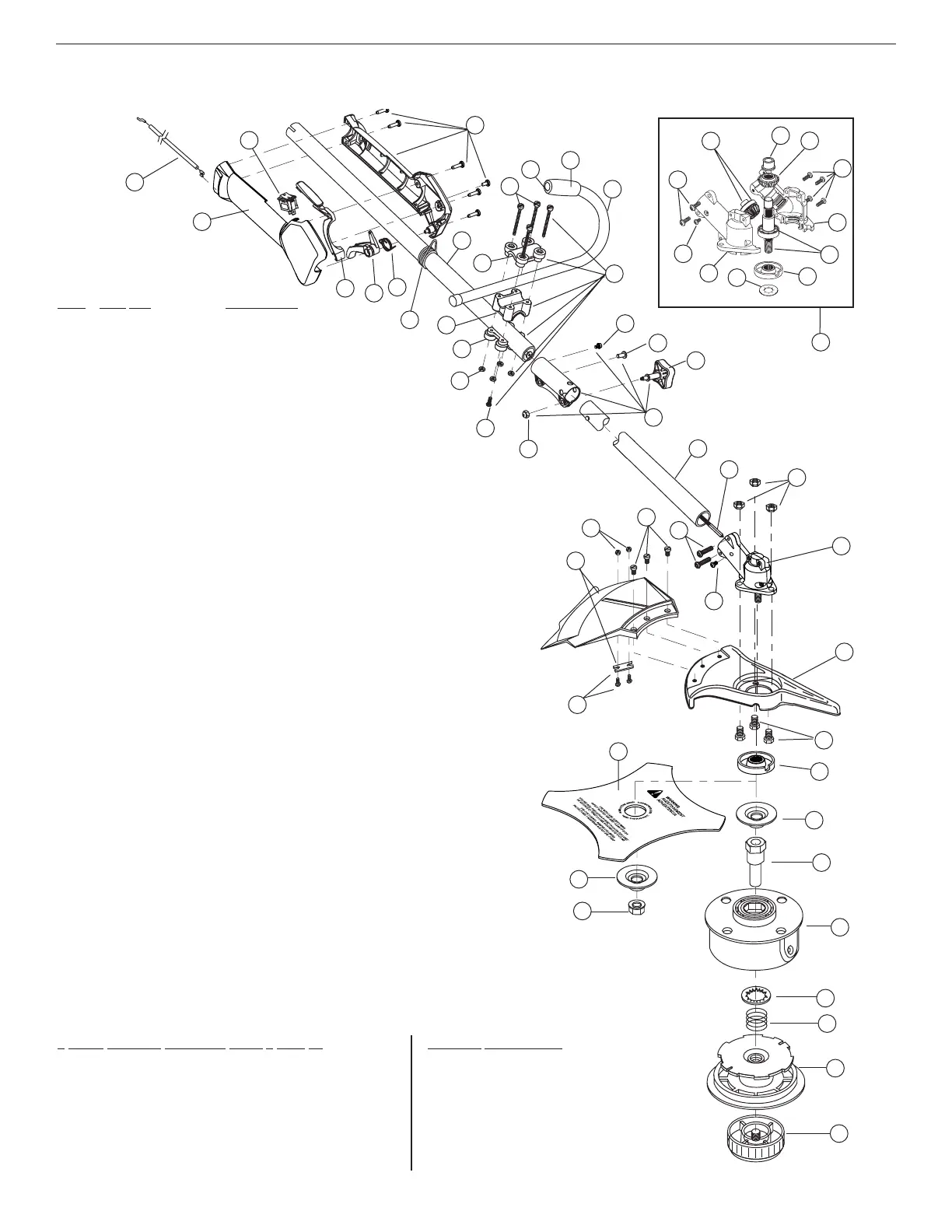

PARTS LIST
25
26
26
30
27
27
28
32
33
38
36
37
42
35
31
34
34
40
39
35
41
43
1
1
6
15
16
17
18
14
13
11
10
9
12
8
7
2
3
4
5
29
21
20
19
22
23
24
Item
Part No. Description
1 753-04339 Throttle Housing and Trigger
Assembly (includes 2-4)
2 753-04340 Throttle Trigger Lock-Out
3 791-00058 Throttle Trigger
4 791-182690 Throttle Trigger Spring
5 791-182405 Switch Assembly
6 753-04278 Throttle Cable Assembly
7 791-610327 Harness Clip
8 753-04236 Upper Drive Shaft Housing Assembly
9 791-181099 J-Handle Assembly (includes 10 & 11)
10 791-612831 Grip
11 791-612021 Tube Closure
12 791-683295 Handle Bracket Assembly (includes 13-18)
13 791-181811 Screw
14 791-181812 Upper Handle Clamp
15 791-181813 Middle Handle Clamp
16 791-181814 Lower Handle Clamp
17 791-181815 Nut
18 791-145569 Anti-Rotation Screw
19 791-182928 Click-Link Coupler (includes 20-23)
20 791-182057 Screw
21 791-181617 Bolt
22 791-181618 Adjustment Knob
23 791-181886 Knob Retaining Nut
24 791-180804 Lower Drive Shaft Housing Assembly
25 791-613300 Lower Flexible Drive Shaft
26 791-182200 Shield Mount Screw Assembly
27 791-182193 2 piece Gearbox Assembly (includes 28-30)
28 791-182195 Gearbox Mounting Hardware
29 791-145569 Anti-Rotation Screw
30 791-182196 Blade Driver
31 791-147492 Blade Shield/Shield Mount
32 791-683304 Shield Mounting Screw
33 753-1191 Shield and Blade Assembly (includes 34)
34 791-682061 Blade Assembly
35 791-147490 Retaining Washer
36 791-612483 Spool Shaft
37 791-683301 Outer Spool and Eyelet Assembly
38 791-612026 Retainer
39 791-610636B Spring
40 791-147495 Inner Reel
41 791-180814B Bump Head Knob Assembly
42 791-145873B 4-Tooth Blade
43 791-181699 Nut
* 791-180014B Blade Retaining Kit (includes 35 & 43)
* 791-613226 Locking Rod Tool
* 791-682075B Shoulder Harness
2 Piece Gearbox Assembly Parts – Item 27
44 791-182191 Left Housing
45 791-182192 Right Housing
46 791-182194 Pinion Gear Assembly
47 791-182199 Output Shaft Bushing
48 791-182198 Output Shaft Gear
49 791-182197 Output Shaft Assembly
(includes 46 & 47)
50 753-04348 Palnut
Optional Accessories
* 753-1160 Reel and Line Assembly
* 753-1161 Bump Head Assembly
(includes 36-41)
* 791-682075B Shoulder Harness
* Items Not Shown
47
48
44
28
45
30
29
28
46
49
50
