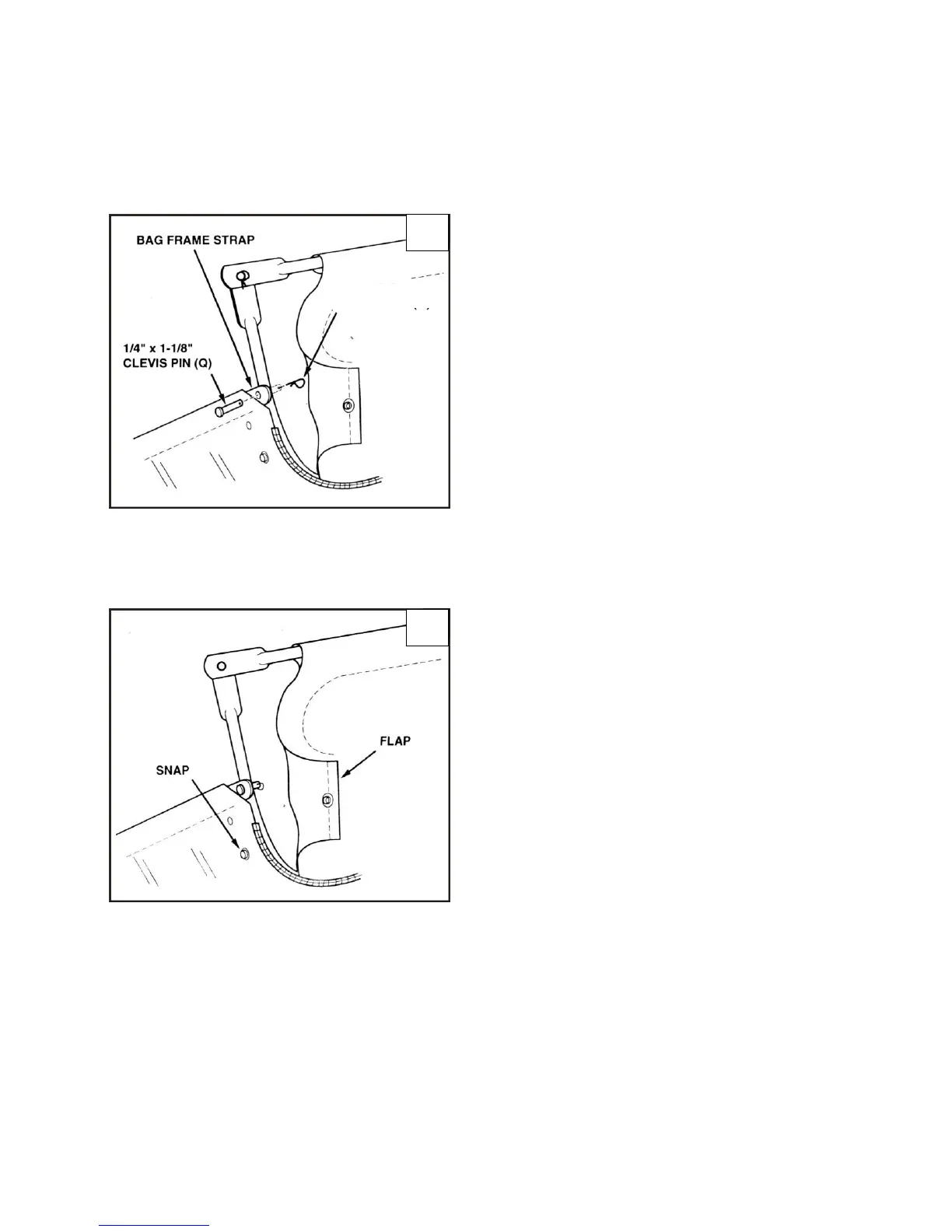

(Figure 14) Insert the bag frame strap into the stitched sleeve along the front edge of the bag bottom.
(Figure 14) Assemble the bag frame strap to the lower hopper side tubes using two Ø6x37 clevis pins
(Q) and Ø2 R pins (O).
(Figure 15) Secure the bag corners around the lower hopper side tubes by snapping the bag flaps to
the bag bottom on both sides.
