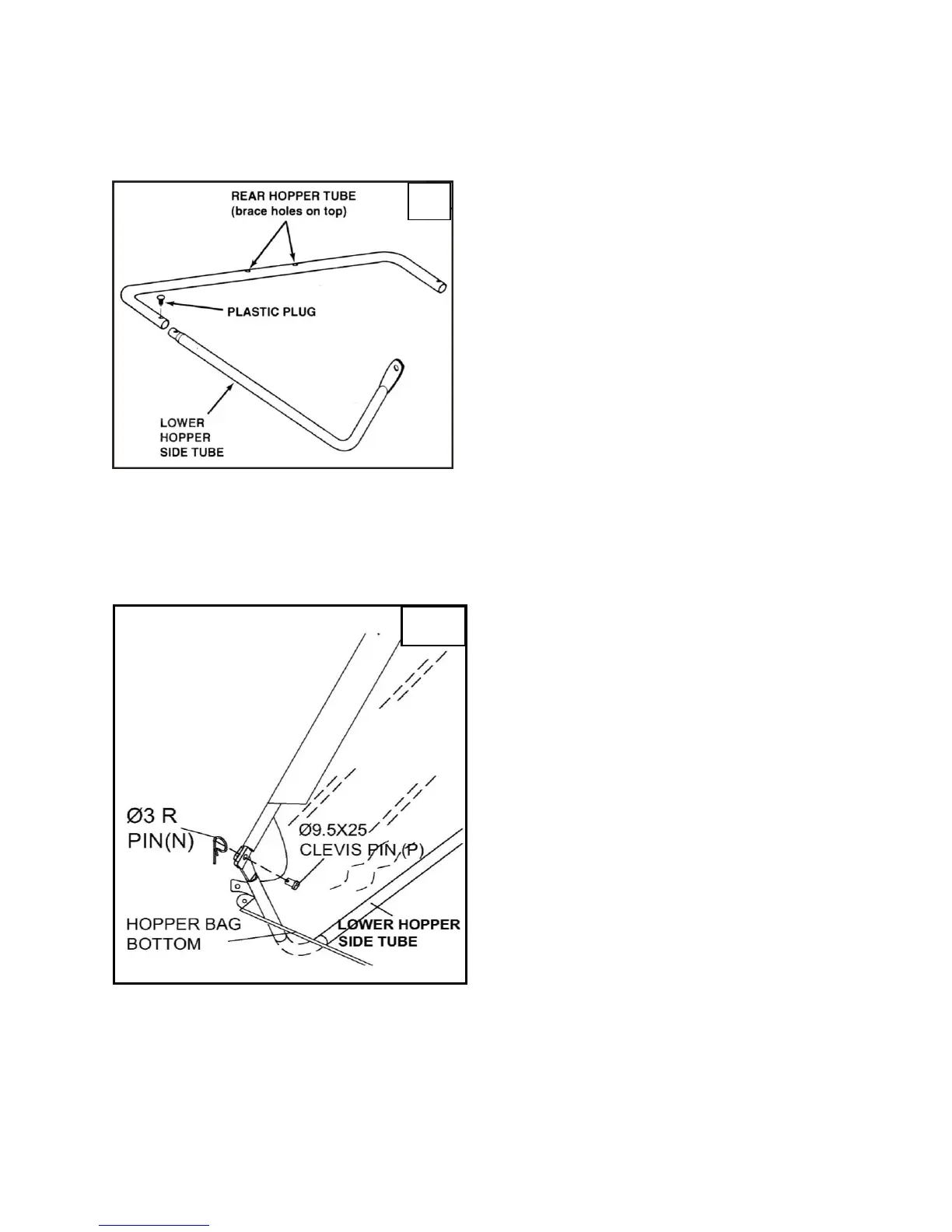

(Figure 12) Turn the second rear hopper tube so that the brace holes in the middle of the tube face up.
Assemble the ends of the rear hopper tube onto the ends of the lower hopper side tubes. Fasten
together using plastic plugs.
(Figure 13) Place the assembled lower hopper tubes into the bottom of the hopper bag
(Figure 13) Attach the ends of the lower hopper side tubes to the inside of the upper hopper side tubes
using two Ø9.5 x 25 clevis pins (P) inserted from the inside, and two Ø3 R pins (N).
