10
ASSEMBLY OF HOPPER BAG

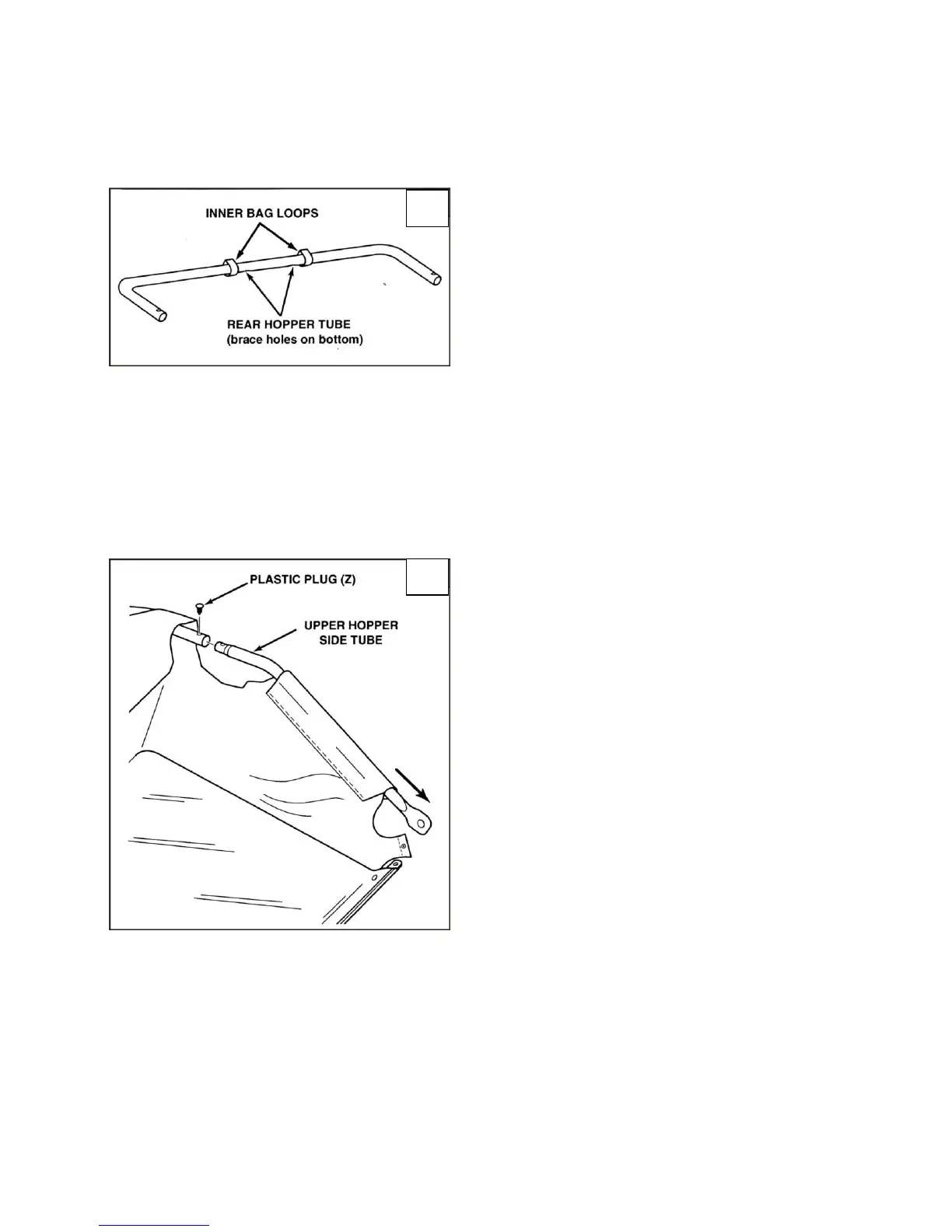

(Figure 10) Turn the rear hopper tube so that the brace holes in the middle of the tube face down.
Slide the tube through the two loops sewn to the top rear seam inside the hopper bag.
(Figure 11) Insert the two upper hopper side tubes through the stitched flaps on each side of the
hopper bag.
(Figure 11) Assemble the ends of the rear hopper tube onto the ends of the upper hopper side tubes.
Fasten together using plastic plugs (Z).
10
10
11
