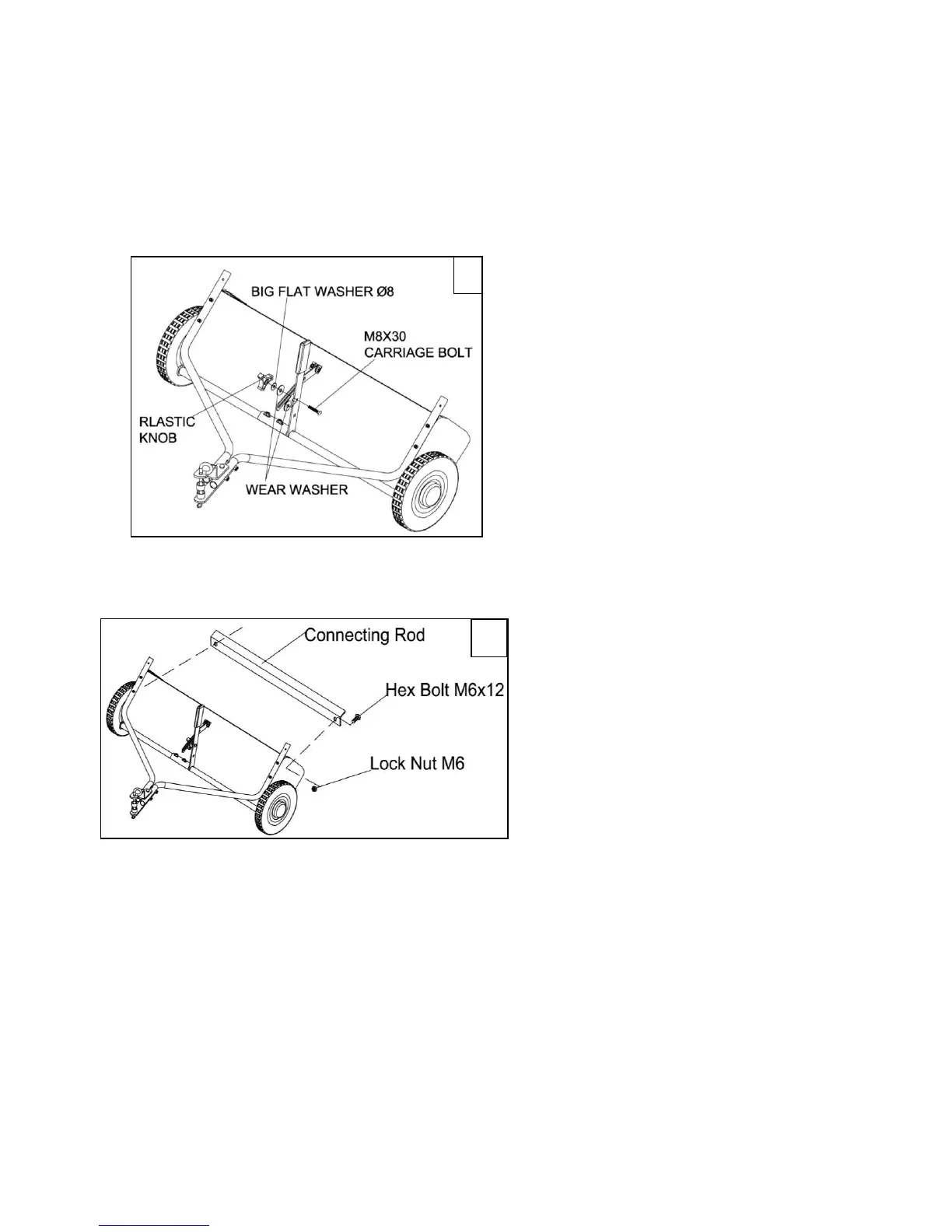

(Figure 8) Position the height adjustment handle side to side so that the wear washer and big flat
washer can fit between the handle and the height adjustment strap. Tighten the nuts securing the height
adjustment handle.
(Figure 8) Insert the carriage bolt M8×30 through the height adjustment handle. Assemble onto the bolt,
in order, the bolt, the height adjustment handle, the wear washer, the height adjustment strap, the wear
washer, the big flat washer, and the plastic knob.
(Figure 9) Assemble the connecting rod to the sweeper body by using two sets of hex bolt M6x12
and lock nut M6.
