Yard Tuff SP-48 User Manual

Page of 20
8

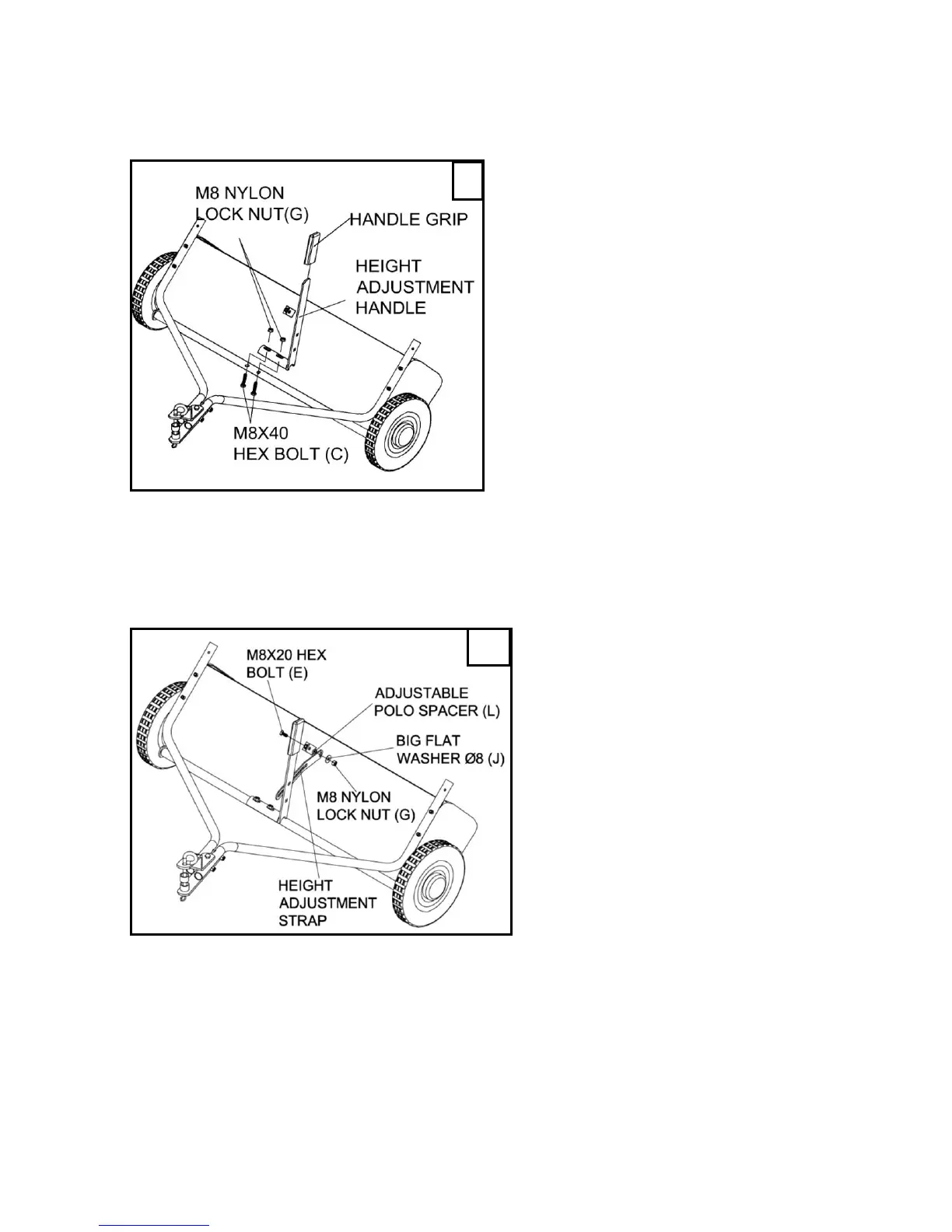

(Figure 6) Assemble the height adjustment handle to the height adjustment tube as shown in figure 6.
Use two M8×40 hex bolts (C) and M8 Nylon Lock nut (G). Do not tighten yet.
(Figure 7) Insert a M8×20 hex bolt (E) through the angle bracket. Assemble onto the bolt (in order) the
adjustable polo spacer (L), the height adjustment strap, a big flat washer Ø8 (J) and a M8 nylon lock nut
(G). Tighten.
6
7
