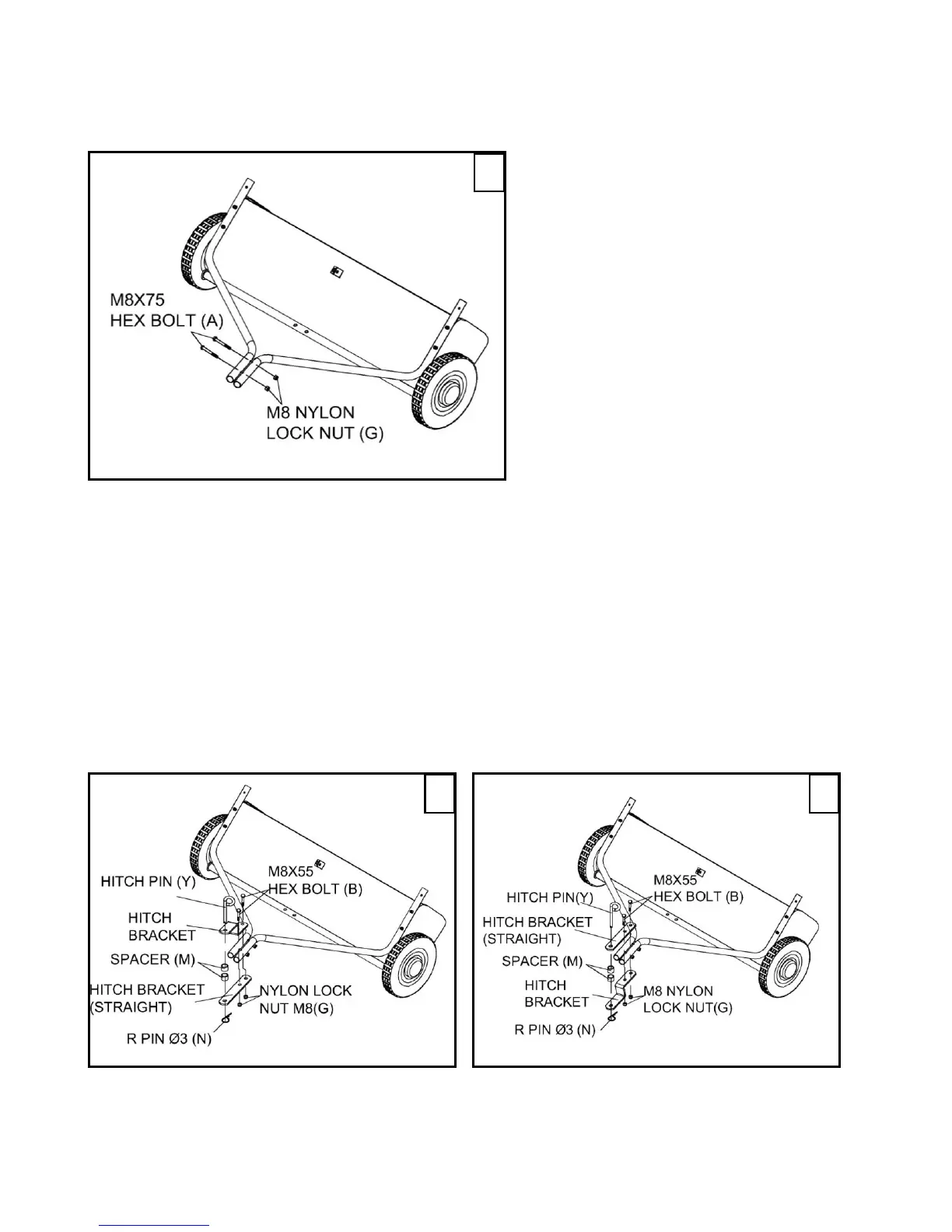

(Figure 3) Fasten the hitch tubes together using two M8 x 75 hex bolts (A), and M8 nylon lock nuts (G).
Do not tighten yet.
If your tractor hitch has 10” to 13” ground clearance refer to figure 4. If your tractor hitch has 8”
to 10” ground clearance refer to figure 5.
(Figure 4 or 5) Assemble the hitch brackets to the hitch tubes using two M8 x 55 hex bolts (B) and M8
nylon lock nuts (G). The bolts should straddle the front hitch tube bolt. Do not tighten yet.
At this time tighten the four bolts fastening the hitch tubes to the sweeper housing. Next, tighten the
two bolts fastening the ends of the hitch tubes together. Finally, tighten the two bolts fastening the hitch
brackets to the hitch tubes.
(Figure 4 or 5) Assemble the hitch pin (Y), two spacers (M) and the Ø3 R pin (N) to the hitch brackets.
