14

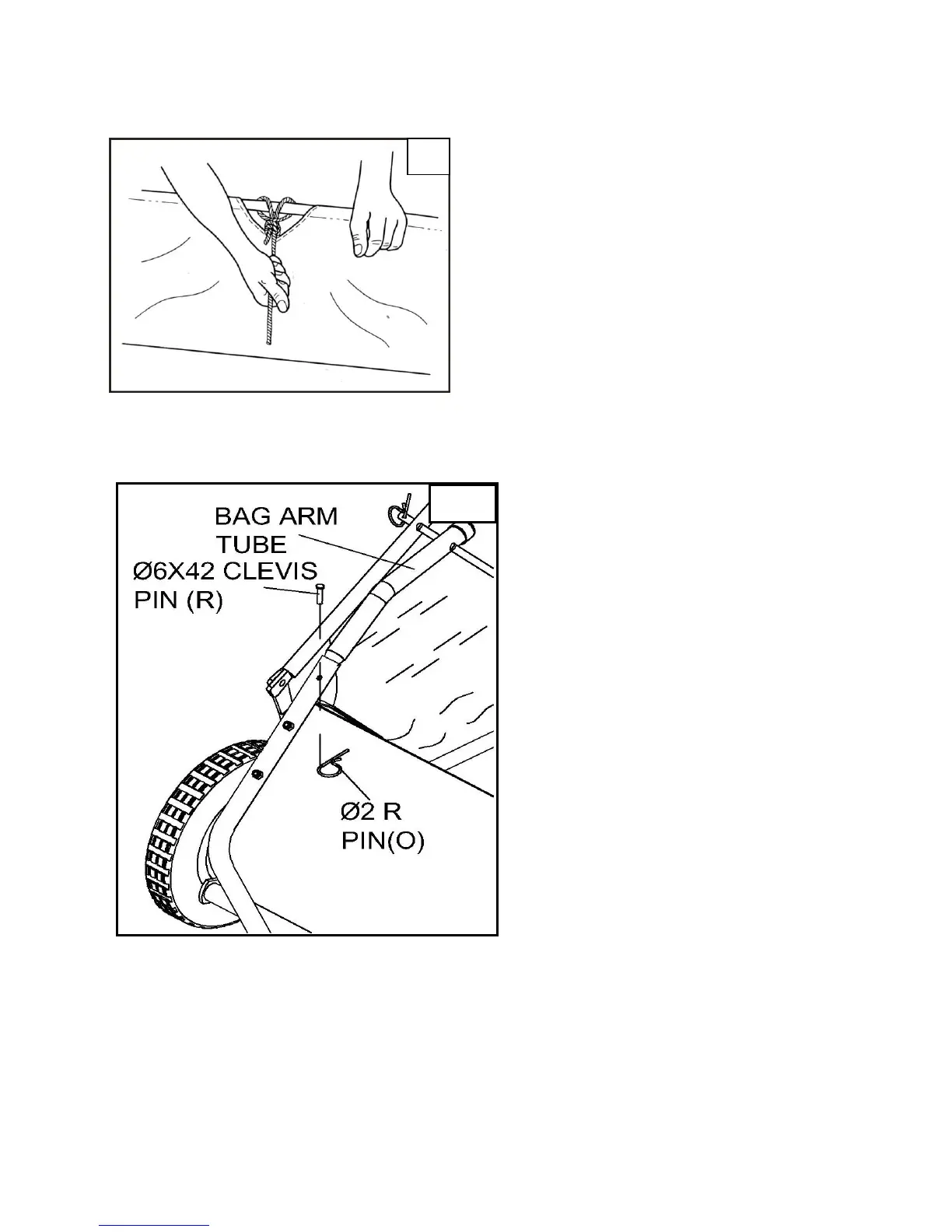

(Figure 18) Secure the rope to the top center of the hopper bag frame.
(Figure 19) To assemble the hopper bag to the sweeper, slide the ends of the bag arm tubes into the
ends of the sweeper’s hitch tubes and secure with two Ø6×42 clevis pins (R) and Ø2 R pins (O).
18
19
