24

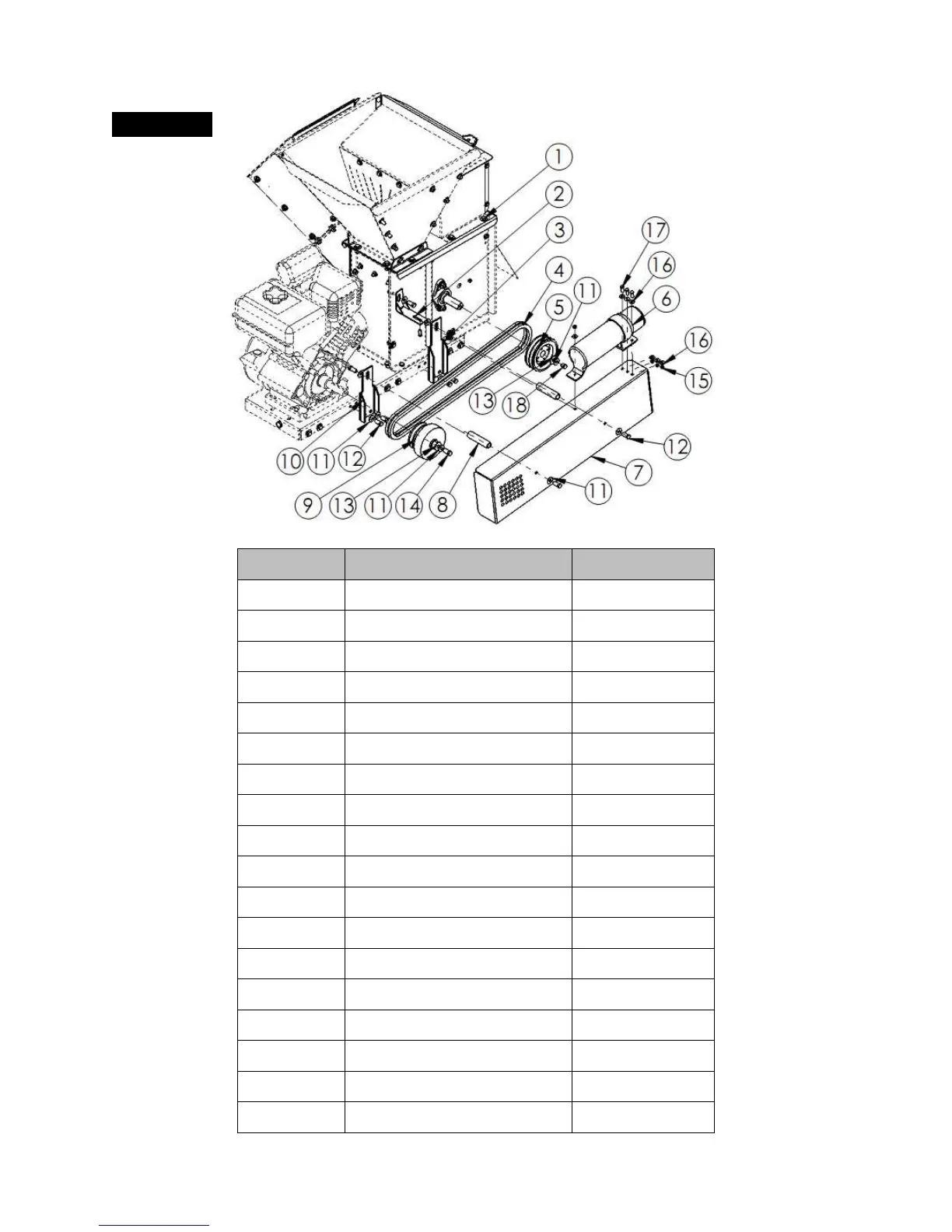

BELTGUARD
No
Component Part No.
1
Chipper
2090301
2
Belt Guard support
2090302
3
Large belt guard support
2090303
4
Belt
2090304
5
Pulley
2090305
6
Manual canister
2090306
7
Belt guard
2090307
8
Spacer
2090308
9
Clutch
2090309
10
Small guard support
2090310
11
3/8”Flat washer
2090311
12
3/8” x 1” Hex bolt
2090312
13
½’ Flat washer
2090313
14
7/16” x 1” G5 Hex bolt
2090314
15
¼’ Hex Lock nut
2090315
16
¼” Flat washer
2090316
17
¼” x 1” Hex bolt
2090317
18
3/8” x1” G5 Hex bolt
2090318
