•Y06992-908 Male Snap x4 per post
•#12 Screw Bezel
Move curtain aside in order to measure snap locations.
From the top, Measure 4" down. Mark holes 3" in from the end for both sides of Post.
At bottom of post, approximate side location and measure 0.75 inches up
Important
Hardware
Insect Screen Inst - Attach Male Studs
•Y06992-908 Male Snap x4 per post
•#12 Screw Bezel
Move curtain aside in order to measure snap locations.
From the top, Measure 4" down. Mark holes 3" in from the end for both sides of Post.
At bottom of post, approximate side location and measure 0.75 inches up
Important
Hardware
Insect Screen Inst - Attach Male Studs

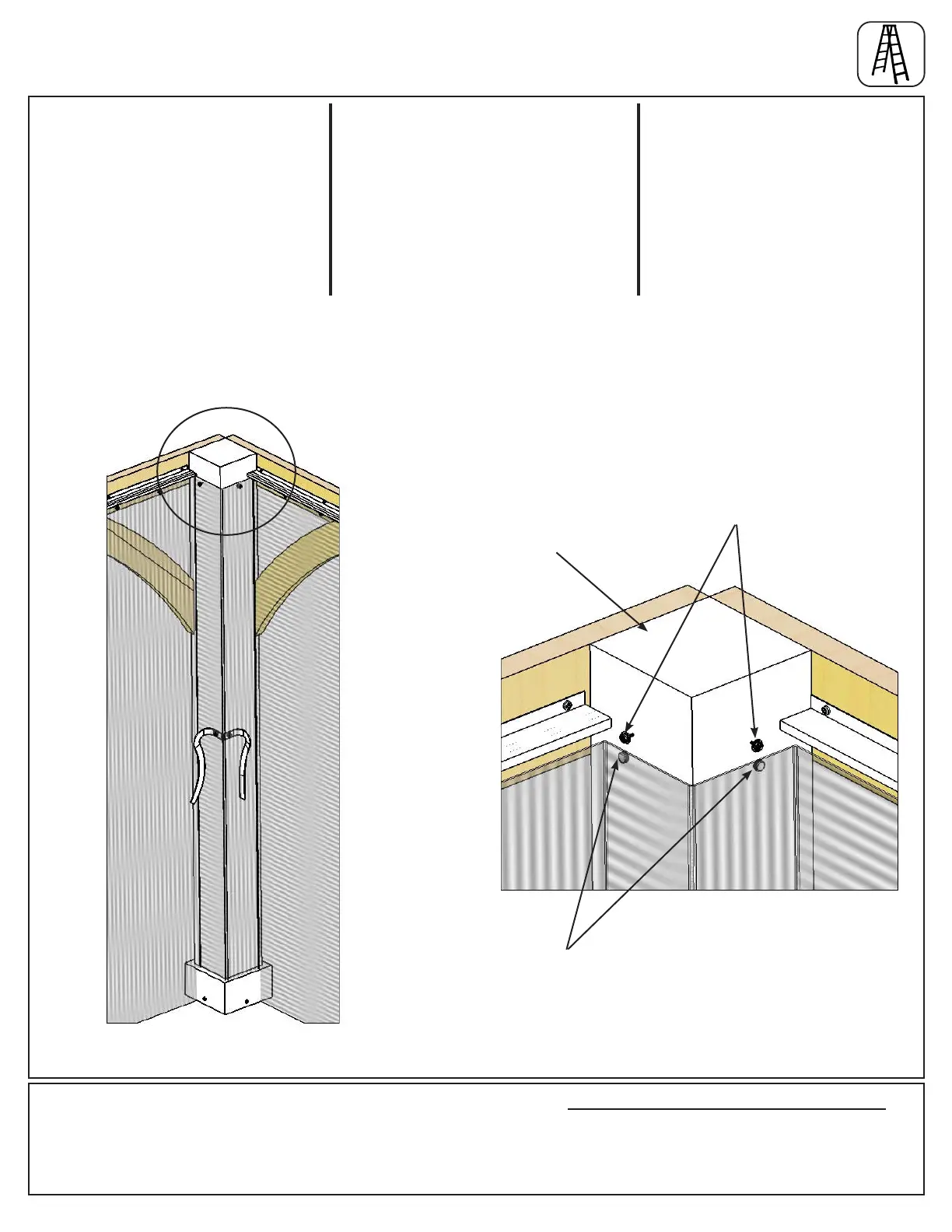

Step 8: Attach Insect Panels to Posts - Paso 8: Fijación de los paneles mosquiteros a
los postes - Étape 8 : Fixation des panneaux pour insecte aux montants
A: At the top of each Post
Assembly locate Button Snaps
on Insect Panel then fasten Male
Snaps with Screw to Post Assembly
so it lines up with the Button Snap.
Connect Button Snaps to Male
Snaps. (F8.1 and F8.2)
F8.1
F8.2
Male Snap with Screw /
Broche Macho con Tornillo
/ Fixation mâle avec vis
Top of Post Assembly /
Parte superior del Ensamble
del Poste / Dessus de
l’assemblage de montant
8 x Male Snap with Screw / Broche Macho con Tornillo /
Fixation mâle avec vis
Hardware / Tornillos y accesorios / Quincaillerie
Post Assembly /
Ensamble del Poste /
Assemblage de montant
Button Snap /
Botón a presión /
Fixation à bouton
A: En la parte superior de cada
Ensamble del Poste, ubique los
Botones a Presión de los Paneles
Mosquiteros y ajuste los Broches
Machos con Tornillo al Ensamble del
Poste de manera que coincidan con
los Botones a Presión. Conecte los
Botones a Presión con los Broches
Machos. (F8.1 y F8.2)
A: Au haut de chaque
Assemblage de montant, situez
les Fixations à bouton sur le
Panneau pour insecte, puis posez
les xations mâles à l’assemblage
de montant en les alignant avec
les Fixations à bouton. Fermez
les xations en les joignant. (F8.1
et F8.2)
