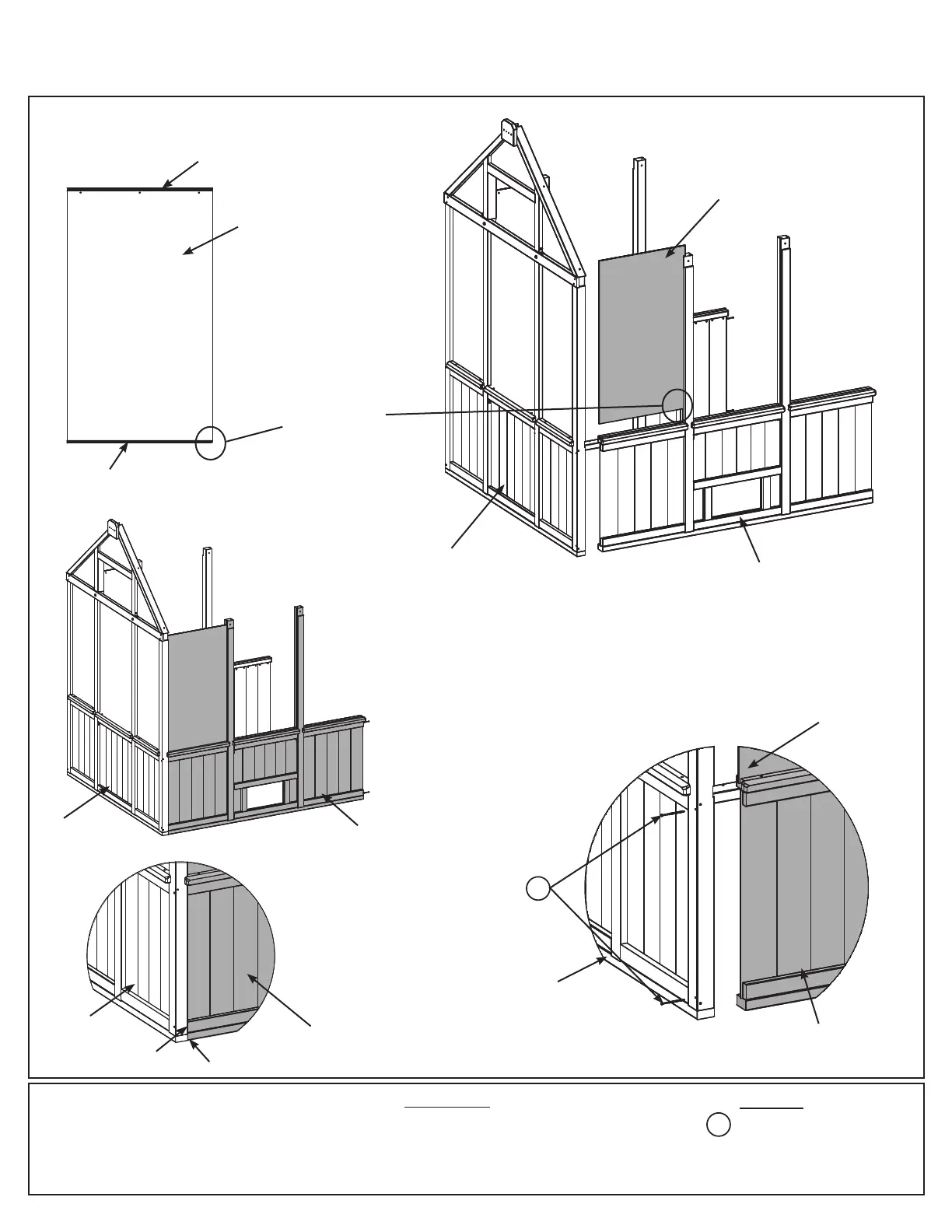

Step 6: Frame Assembly
Part 2
Note: Notches
always at the
bottom right of
each panel from
the outside
PC Wall Panel
Note: UV
Coating to the
outside of the
frame
F6.6
Outside View
PC Wall Panel
Side Wall with
Vent Assembly
Components
1 x PC Wall Panel
Top Tape
Bottom Tape
Hardware
2 x #10 x 4” Wood Screw
S24
End Wall with
Gable Vent
Assembly
Side Wall with
Vent Assembly
Side Wall with
Vent Assembly
Side Wall with
Vent Assembly
S24
Tight
Flush
PC Wall Panel
F6.5
F6.7
F6.8
F6.9
Remove lm from both sides of PC Wall Panels.
End Wall with
Gable Vent
Assembly
End Wall with
Gable Vent
Assembly
End Wall with
Gable Vent
Assembly
Top Tape
Bottom Tape
Refer to pages 17 and
18 and apply top and
bottom tape to PC Wall
Panel.
