Yardline RIDGEPOINTE - Page 21

19
20-3/8"
44-1/2"
68-1/2"
92-1/2"
113"
20-3/8" 92-5/8"
68"
(51,8 cm)
(113 cm)
(174 cm)
(235 cm)
(287 cm)
(51,8 cm) (235,3 cm)
92-5/8"
(235,3 cm)
(172,7 cm)
1-1/2"
(3,8 cm)
PARTS REQUIRED:
x28
3" (7,6 cm)
BEGIN
1
Arrange parts on edge on oor. Measure and mark.
Secure with (2) 3" nails at each mark.
x6
2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x2
2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
x2
2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm)
JBD

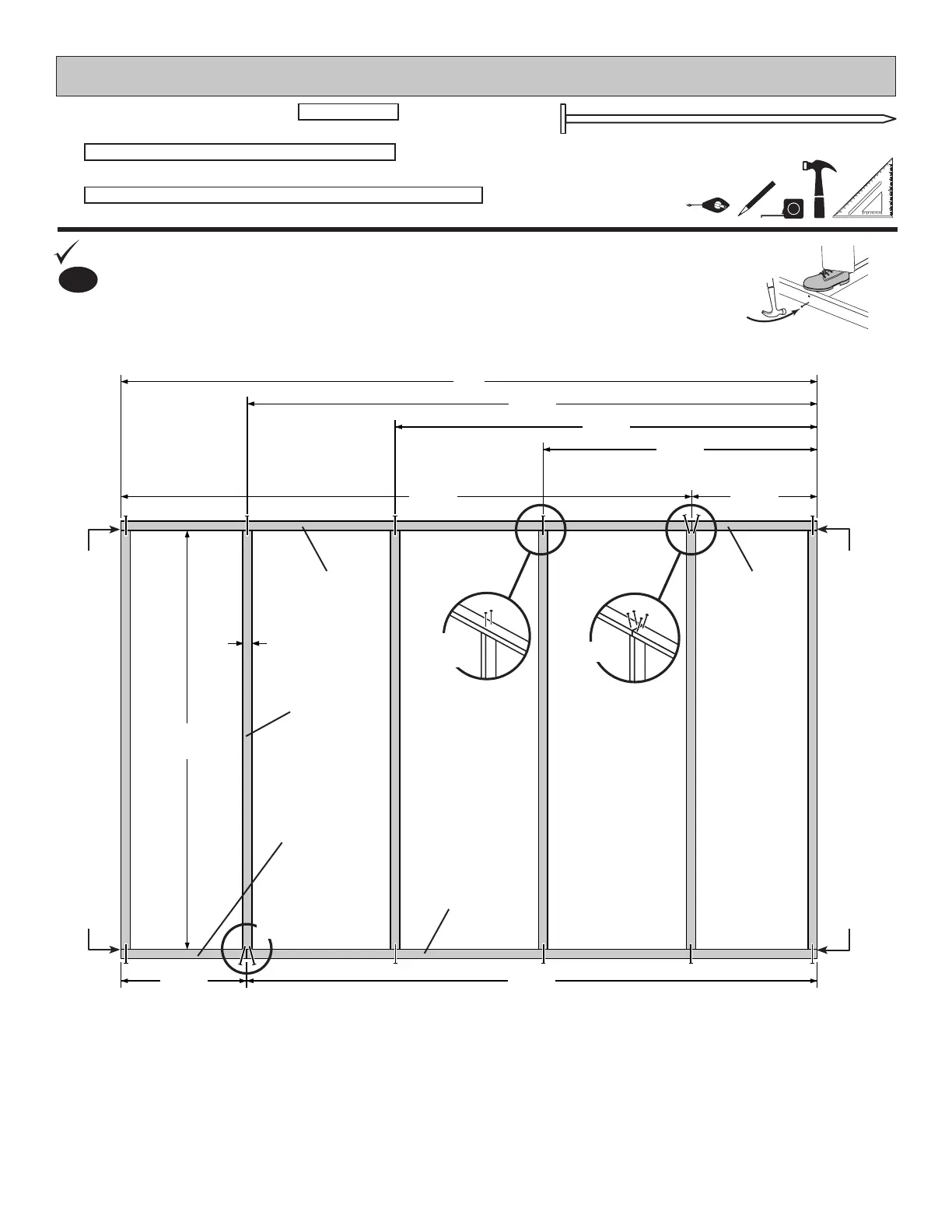

BACK GABLE WALL FRAME
UM x6
TJ JBD
TJ
JBD
Flush
Flush
Flush
Flush
(7,6 cm)
Nails
SEAM
Seam
