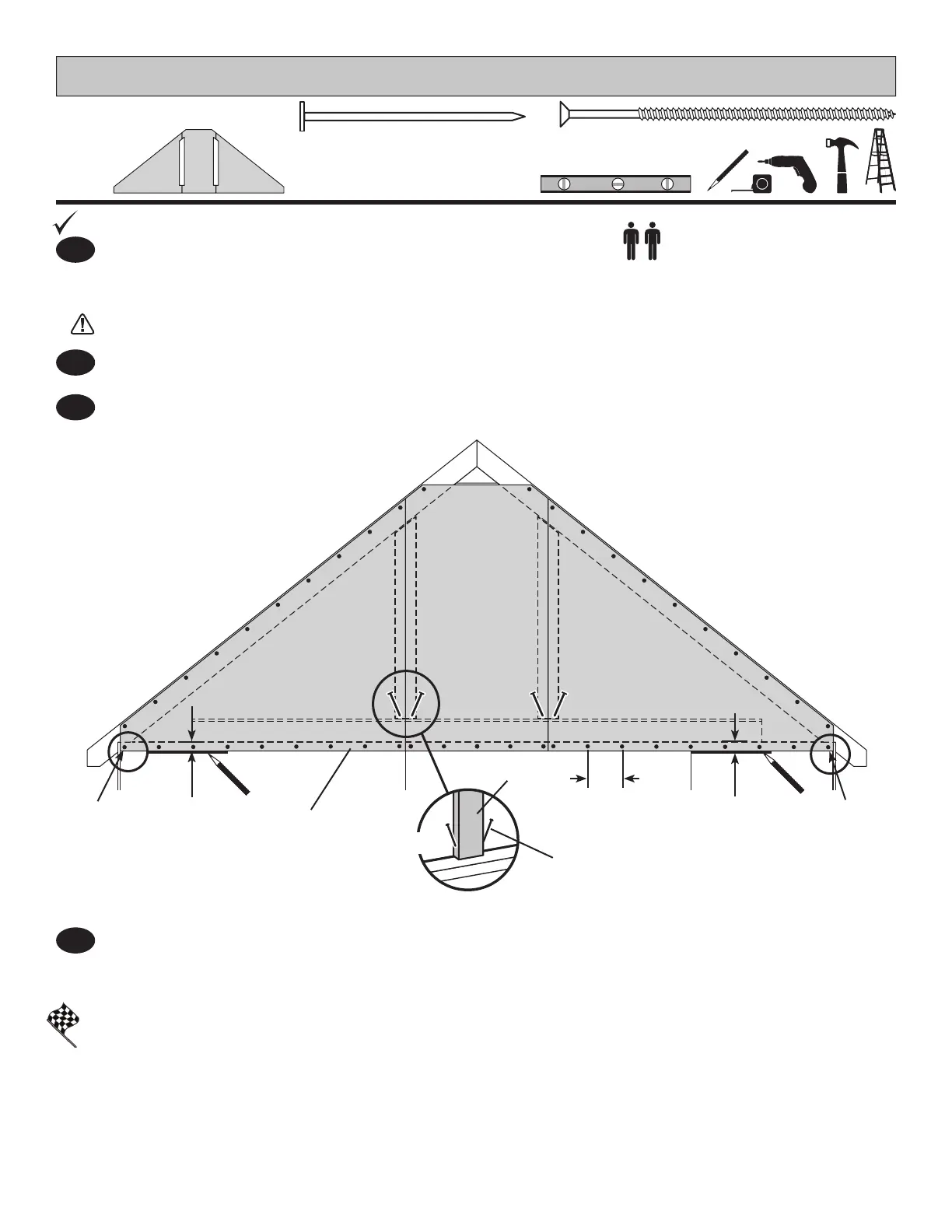

BACK GABLE UNIT INSTALLATION
PARTS REQUIRED:
FINISH
Your back gable unit is now installed
x4
3" (7,6 cm)
2
4
Continue nailing lower edge of panels into top plate with 2" nails spaced 6" apart.
Continue securing panels to rafter with 2" nails spaced 6" apart.
Working inside, secure gable unit with (2) 3" screws screwed into each FOB at an angle .
3
Measure 1-1/2" down from top plate and mark at each side, as shown.
Set gable unit on loft deck.
Hold gable unit secure with (1) 2" nail on each side.
BE SURE GABLE IS CENTERED ON WALL BEFORE NAILING.
NAIL FIRST
NAIL FIRST
TOP PLATE
Measure and
Mark
Measure and
Mark
6"
(15,2 cm)
FOB
Screws
2" (5,1 cm)
x45
x1
Back
Gable Unit
To Next Page
