FRONT GABLE UNIT
PARTS REQUIRED:
Front Gable Unit

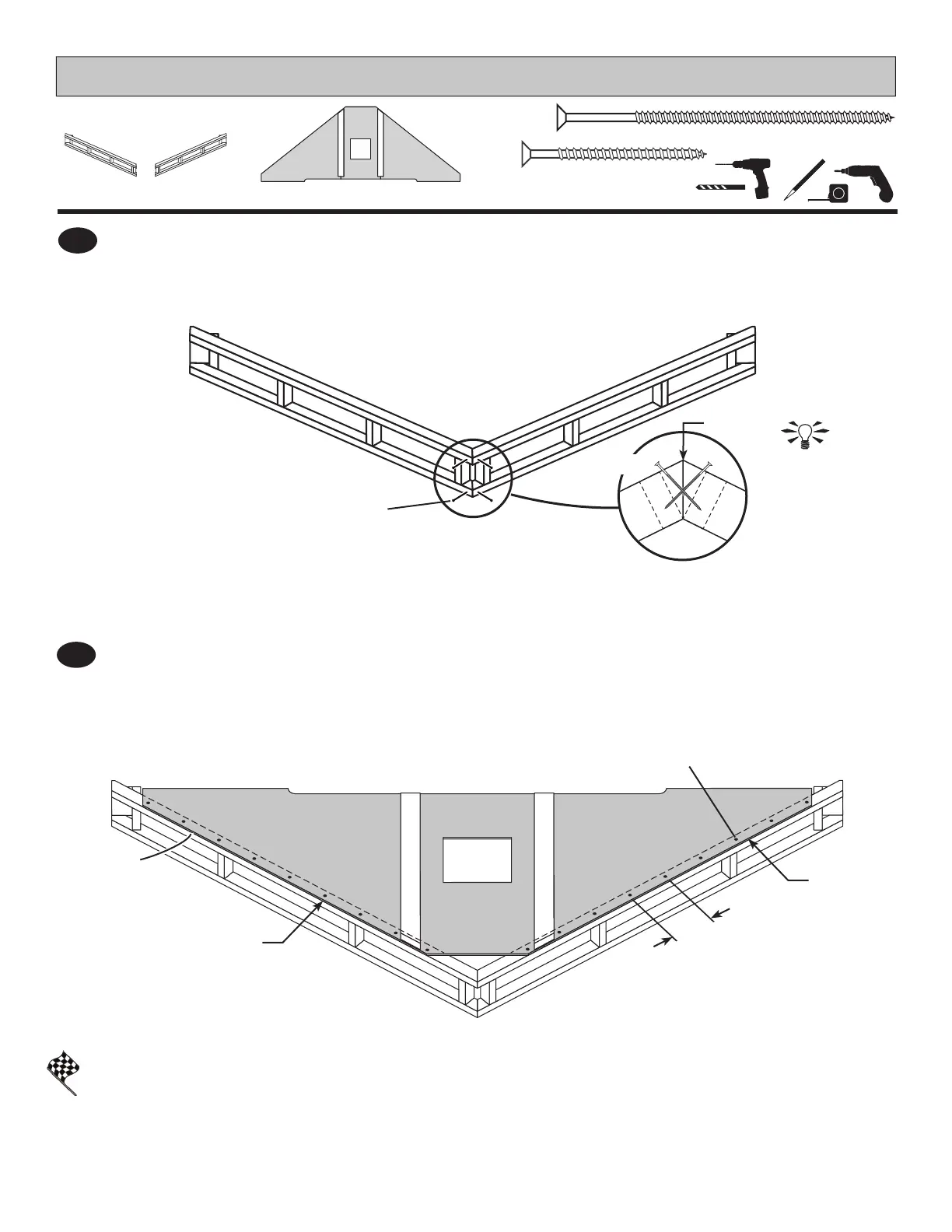

Place front gable unit primed side down on gable ladder assembly.
Ensure panels are ush at peak of ladder and ush along top edge of ladder assembly.
Secure with 1-5/8" screws spaced evenly .
6
3" (7,6 cm)
Flush
Flush
Screws
x2 Ladder Assemblies
FINISH
Your front gable unit is assembled.
x18
1-5/8" (4,1 cm)
Primed
side down
HINT:
Pre drill to avoid
5
To complete gable ladder, connect (2) ladder assemblies together with (4) 3" screws .
Screws
Flush
x4
9"
(22,9 cm)
Approximately
3/16" (4,8 mm) Drill Bit
To Next Page
