58
x2
19/32 x 2-1/2 x 20-5/8" (2,5 x 6,3 x 52,4 cm)
GPA
x1
19/32 x 2-1/2 x 49-3/16" (1,5 x 6,3 x 124,9 cm)
HNR
x1
19/32 x 2-1/2 x 49-3/16" (1,5 x 6,3 x 124,9 cm)
HNL
LHC
x1
19/32 x 3-1/2 x 65-1/4" (2,5 x 8,9 x 165,7 cm)

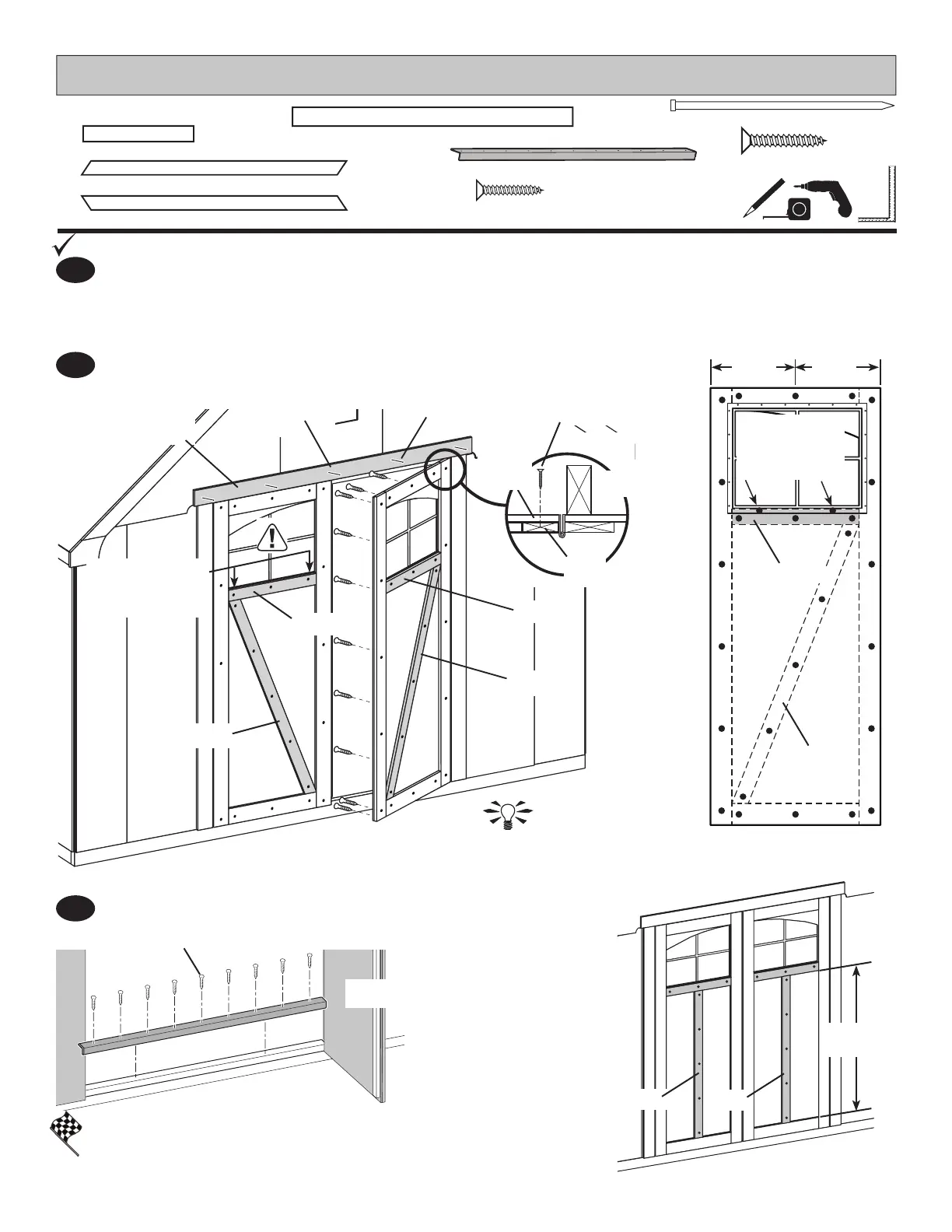

PARTS REQUIRED:
DOOR TRIM
3/4" (1,9 cm)
x56
CENTER
LHC
x1
56" Metal Threshold
3/4" (1,9 cm) x10
Bagged seperately / special coating
x5
2" (5,1 cm)
HNR
GPA
GPA
HNL
Your door trim and threshold are now installed.
FINISH
2
Center trim LHC over doors and secure with (5) 2" nishing nails.
3
Install metal threshold .
1
Reinforce the door and install (2) upper horizontal door rails GPA. Flush GPA to bottom of window opening.
Secure trim with 3/4" screws from behind door panel into trim .
Secure window with (2) 3/4" screws through four holes in frame .
Secure HNL and HNR with 3/4" screws.
OPTIONAL:
Choose from two designs for
your doors (Fig. D).
If you prefer the vertical trim
board style, cut HNL and
HNR to 45-13/16". Install trim
centered on door.
See step 1.
Install GPA ush
to bottom of
window opening.
Screws
Door
Trim
Door
Panel
CENTER CENTER
HNL
GPA
HNL
HNR
45-13/16"
(116,4 cm)
(2) 3/4" (1,9 cm)
Screws
from inside,
through window
frame into GPA.
To Next Page
