59
11" (27,9 c m)
Approximately

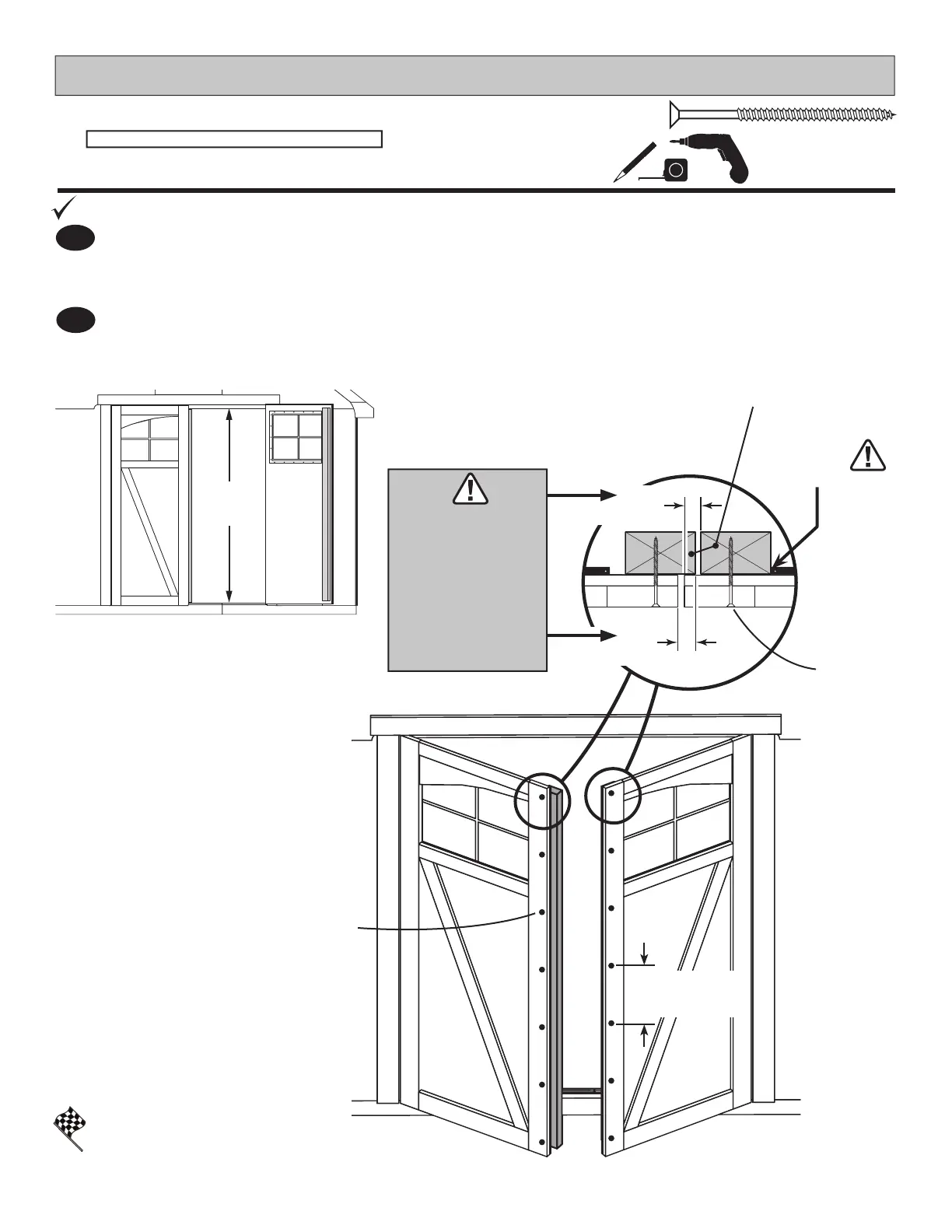

Your door stiffeners are now installed.
Center OO vertically on the left door in the door opening .
Offset OO 3/4" (1,9 cm) along the edge of door .
Center OO vertically on the right door in the door opening .
Offset OO 3/4" (1,9 cm) along the edge of door . Install OO ush tight to window ange .
1
PARTS REQUIRED:
x14
2" (5,1 cm)
DOOR STIFFENERS
Secure with (7) 2" screws through outside trim into OO
Secure with (7) 2" screws through outside trim into OO
2
Center OO
in door
OO
x2
69" Door Stiffener (175,3 cm)
OO x2
3/4"
(1,9 cm)
3/4"
(1,9 cm)
OFFSET
IT IS
IMPORTANT
TO HOLD
THESE
DIMENSIONS
Screws
x14
Screws
FINISH
Flush OO
To Next Page
