YARDMAX YB4628 User Manual

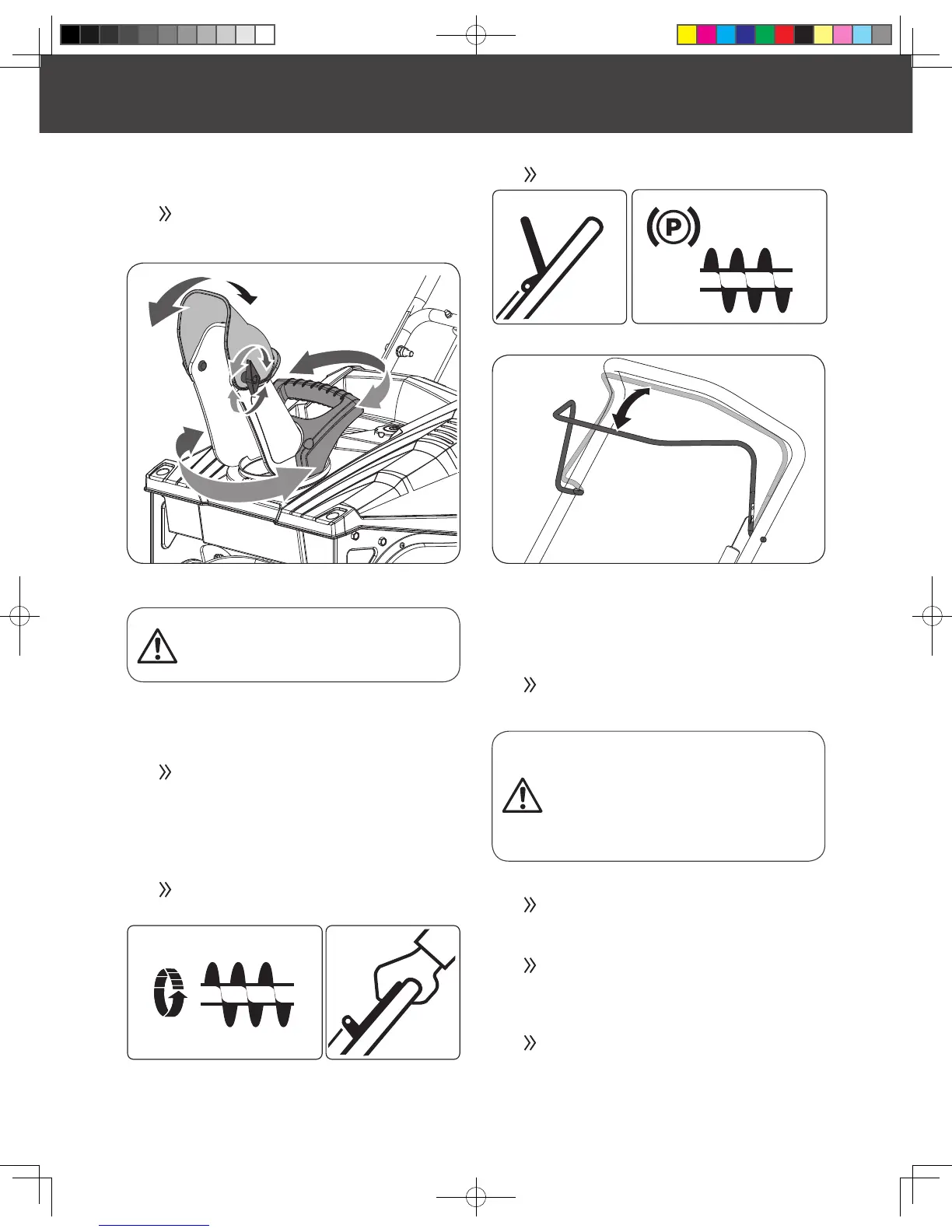

DISCHARGE CHUTE
CHUTE DEFLECTOR
AUGER CLUTCH
Grasp the chute handle and rotate the discharge
chute to the left or right. A tension plate holds the
chute in the desired position.
Loosen the deector wing knob and adjust the chute
deflector up or down to control the snow discharge
height and distance. Tighten the wing knob securely
to hold the desired deflector adjustment once the
desired position have been achieved.
To engage the auger and start throwing snow, hold
the auger clutch against the handle.
To disengage the auger, release the auger clutch.
Do not use the chute handle to lift the unit.
During initial break-in period of the auger, it is normal
for the auger to build up excessive heat if not operated
in the snow. Do not operate without snow or water for
lubricating the auger. This will cause excessive heat
build up in the auger which could cause damage to the
auger and scraper blade.
When engaged, the auger rotates and draws snow
into the auger housing and throws it out the discharge
chute. Rubber paddles on the auger also aid in
propelling the snow thrower as they come in contact
with the pavement.
The scraper blade maintains contact with the
pavement as the snow thrower is propelled, allowing
snow close to the pavement’s surface to be discharged.
The auger and the scraper blade are subject to wear
and damage. They should be checked periodically.
Adjust or replace when necessary.
During initial operation there may be wear between
the auger and the scraper blade. Maximum
performance, both snow throwing and driving, occurs
when there is zero clearance between these two
parts.
AUGER & SCRAPER BLADE
Figure 6
Figure 7a
Figure 7c
Figure 7b
12
Single-Stage Snow Blower
»
Operator’s Manual
Know Your Machine
|
30230US25M100.indd 12 2016/9/3 11:04:17
