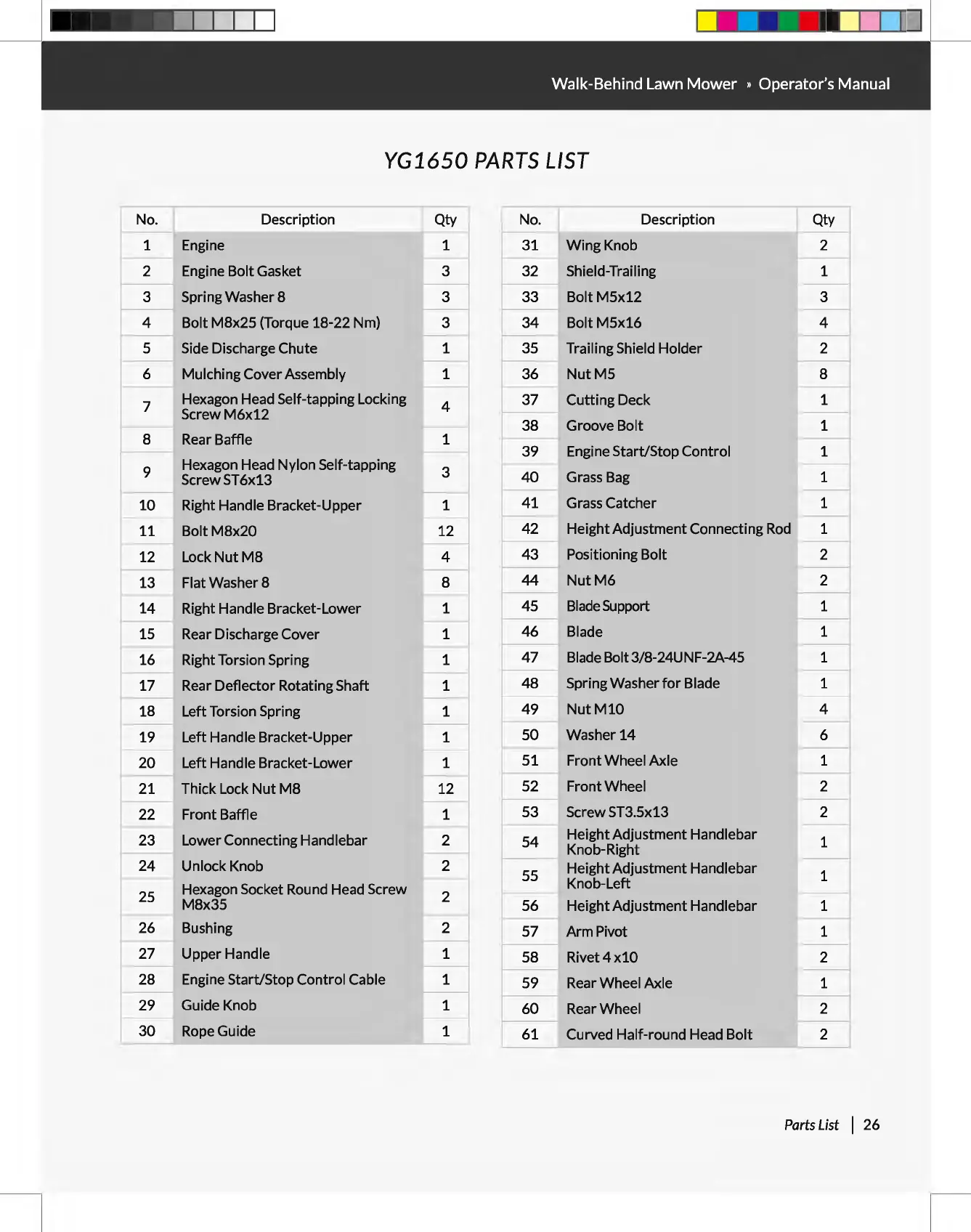

YG1650 PARTS LIST
No. Description
Qty
No. Description
Qty
1
Engine
1 31
Wing Knob
2
2
Engine Bolt Gasket
3 32
Shield-Trailing
1
3
Spring Washer 8
3 33
BoltMSx12 3
4
Bolt M8x25 (Torque 18-22 Nm)
3
34 BoltMSx16 4
5
Side Discharge Chute 1
35
Trailing Shield Holder 2
6
Mulching Cover Assembly
1 36
NutMS 8
7
Hexagon Head Self-tapping Locking
4
37
Cutting Deck
1
ScrewM6x12
38 Groove Bolt 1
8 Rear Baffle 1
39
Engine Start/Stop Control
1
9
Hexagon Head Nylon Self-tapping
3
40 Grass Bag 1
Screw
ST 6x13
10
Right Handle Bracket-Upper
1
41 Grass Catcher 1
11
BoltM8x20 12
42
Height Adjustment Connecting
Rod
1
12 Lock
Nut M8 4
43
Positioning Bolt
2
13 Flat Washer 8 8
44 NutM6 2
14 Right Handle Bracket-Lower 1
45
Blade Support 1
15 Rear Discharge Cover 1
46 Blade 1
16
Right Torsion Spring
1
47
Blade Bolt3/8-24UNF-2A-45
1
17
Rear Deflector Rotating Shaft
1
48
Spring Washer
for Blade
1
18
Left Torsion Spring
1
49
Nut M10 4
19 Left Handle Bracket-Upper 1
so
Washer14 6
20 Left Handle Bracket-Lower 1
51 Front Wheel Axle 1
21 Thick Lock
Nut M8 12
52 Front Wheel 2
22 Front Baffle 1
53 Screw ST3.5x13 2
23
Lower Connecting Handlebar
2
54
Height Adjustment Handlebar
1
Knob-Right
24 Unlock Knob 2
55
Height Adjustment Handlebar
1
Hexagon Socket Round Head Screw
Knob-Left
25
M8x35
2
56
Height Adjustment Handlebar 1
26 Bushing 2
57 Arm Pivot 1
27
Upper Handle
1
58
Rivet4x10 2
28
Engine Start/Stop Control Cable
1
59 Rear Wheel Axle 1
29 Guide Knob 1
60
Rear Wheel 2
30
Rope Guide 1
61 Curved Half-round Head Bolt 2
Parts List I 26
