2
Bolt (×4)
Nut (×1)
Belt Guard
5
Engine Pulley
Idler Pulley
Belt Guide
Bracket
(×2)
Stud
Belt Roller
3
4
Transmission Pulley
Belt
1 2 2 1
Outer Side Shield
Pin (×2)
Swing Nut (×4)
Figure 11a
Figure 11b

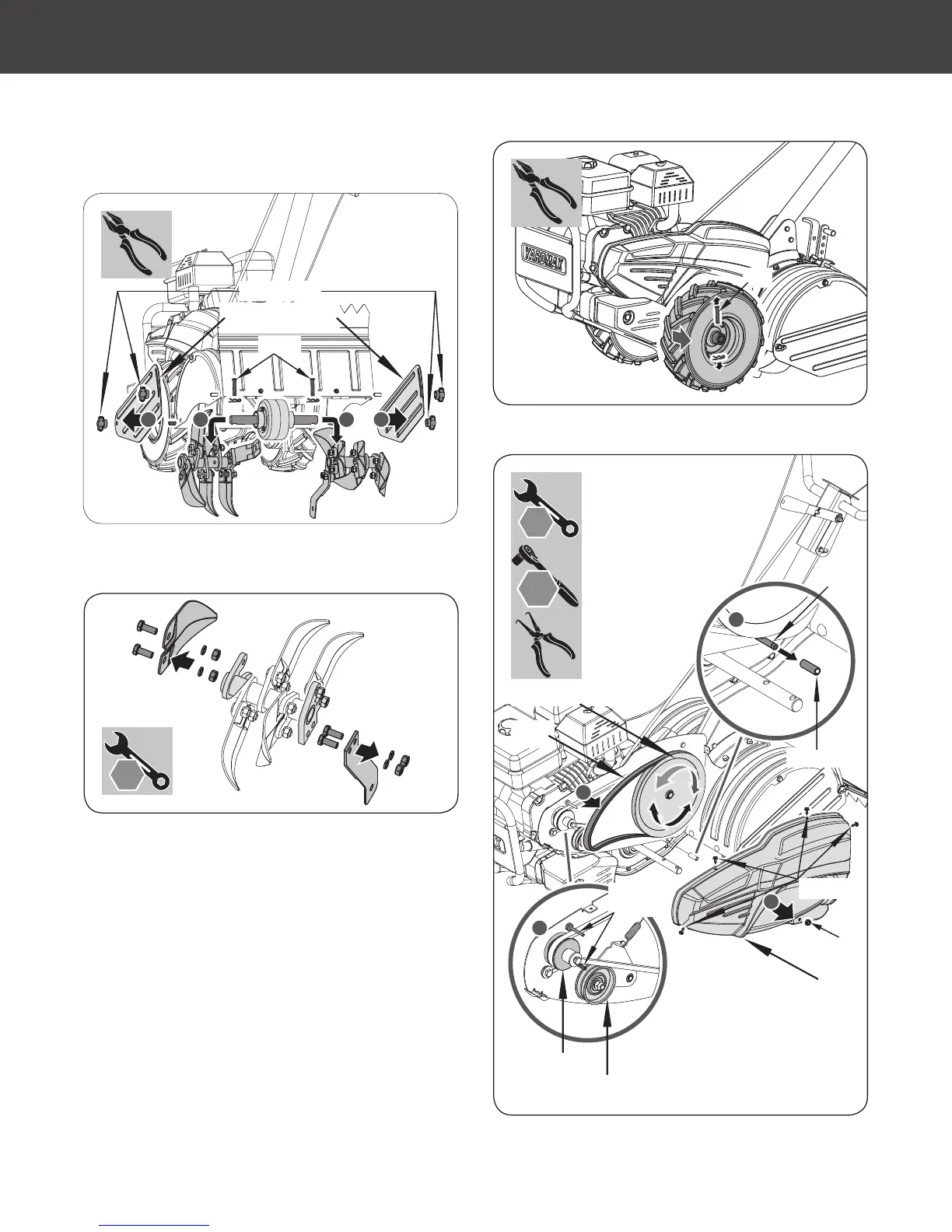

REPLACING THE BELT
1. Securely prop the machine up so that the wheel on the opposite
side of the engine is 1 inch off the work surface. Remove the
shear pin and wheel from belt guard side of the machine,
opposite side of the engine. (see Figure 12a)
2. Remove the 4 bolts and 1 nut on the belt guard to expose the
belt assembly. (See Figure 12b, illustration 2)
3. Slide the belt roller off its stud below the large transmission pulley.
(See Figure 12b, illustration 3)
4. Remove the belt from the engine and idler pulley: Rotate the
transmission pulley and pull the belt gently through the roller
stud while working it free from the pulley. (See Figure 12b,
illustrations 4 & 5)
Figure 12a
Figure 12b
Pin
REPLACING THE TINES
1. Remove the outer side shield.
2. Remove the whole blade assembly.
3. Remove the each tine.
17 mm
18 mm
30 mm
13 mm
11 mm
8 mm
16 mm
× 2
5. To install a new belt, repeat the above process in reverse.
16
Dual Rotating Rear Tine Tiller
»
Operator’s Manual
YT4565PM02 - 1704
Maintenance
|
