YARDMAX YT5328 User Manual

TINE SHIELD
OUTER TINE
DEPTH STAKE

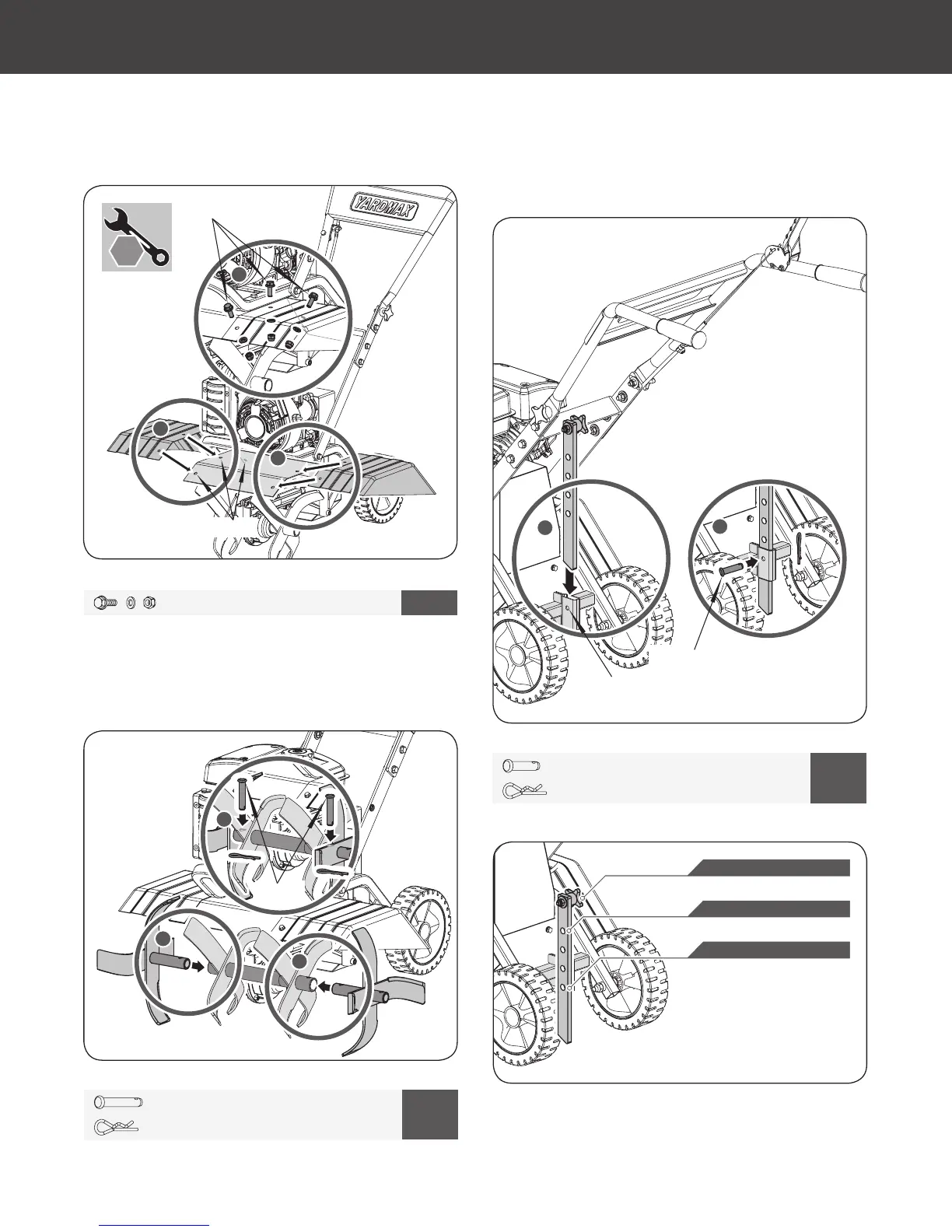

Assemble the tine shields using six M6×16 bolts, at washers, and
M6 lock nuts. (See Figure 6)
Assemble two outer tines with inter tines using axis pins. Lock axis
pins with clevis pins. (See Figure 7)
Insert the depth stake into the depth stake holder tube.(See
Illustration 1, Figure 8a) Adjust the depth stake into the desired
depth of tilling (See Figure 8b), then lock it with 8×32 pin and clevis
pin. (See Illustration 2, Figure 8a)
Figure 5b
Figure 6
Figure 7
Figure 8a
Figure 8b
1
1
2
Bolt Hole
M6×16 (×6)
12 mm
10 mm
× 2
M6 × 16 × 6
5
Depth Stake Holder Tube
2
1
8×32 (×1)
2
1
1
8×45 (×2)
8 × 45 × 2
6
× 2
8 × 32 × 1
7
× 1
Limiter
Deepest Tilling
Shallowest Tilling / Transport
10
Front Tine Tiller
»
Operator’s Manual
YT5328PM01 - 1705
Assembly
|
32538US25M101.indd 10 2017/5/11 17:16:21
