1. Upper Handlebar
2. Main Machine
3. Outer Tine - Right
4. Inner Tine - Right
5. Inner Tine - Left
6. Outer Tine - Left
7. Lower Handlebar
8. Tine Shield - Right
9. Tine Shield - Left
10. Handlebar Adjusting Plates (1 pair)
11. Depth Stake
12. Operator's Manual & Engine Manual
13. Tools for Spark Plug Assembly
14. Hardware Kit, Including:

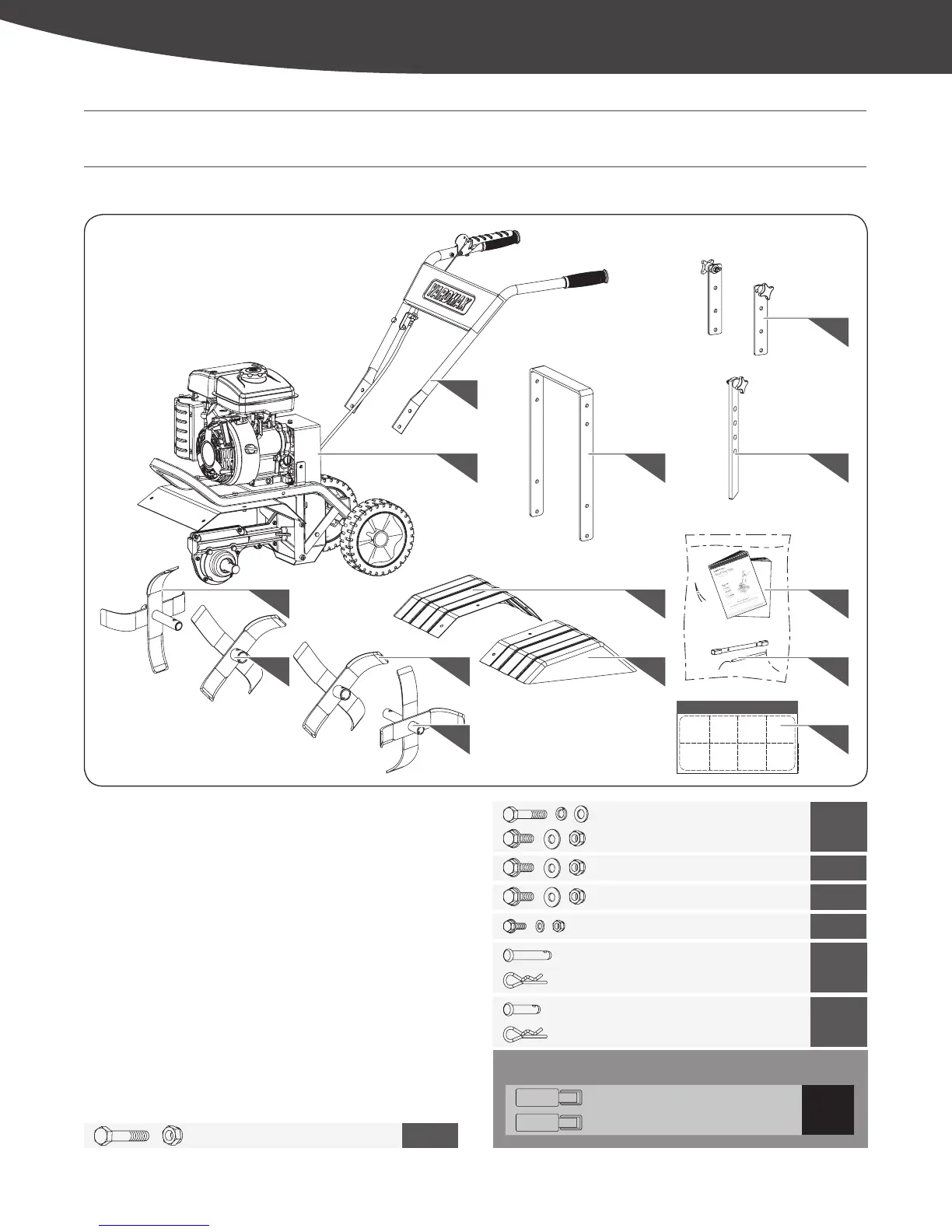

CONTENTS SUPPLIED
Your YARDMAX front tine tiller comes partially assembled and contains the following:
M10 × 50 × 2
1
HARDWARE KIT
146
13
54
83
112
1
7
9
10
12
M8 × 45 × 2
2
M8 × 25 × 2
M8 × 25 × 4
3
M8 × 25 × 2
4
M6 × 16 × 6
5
8 × 45 × 2
6
× 2
8 × 32 × 1
7
× 1
7
YT5328PM01 - 1705
|
Contents Supplied
TOUCH-UP PAINT
Orange × 1
8
Light Gray × 1
32538US25M101.indd 7 2017/5/11 17:16:18
